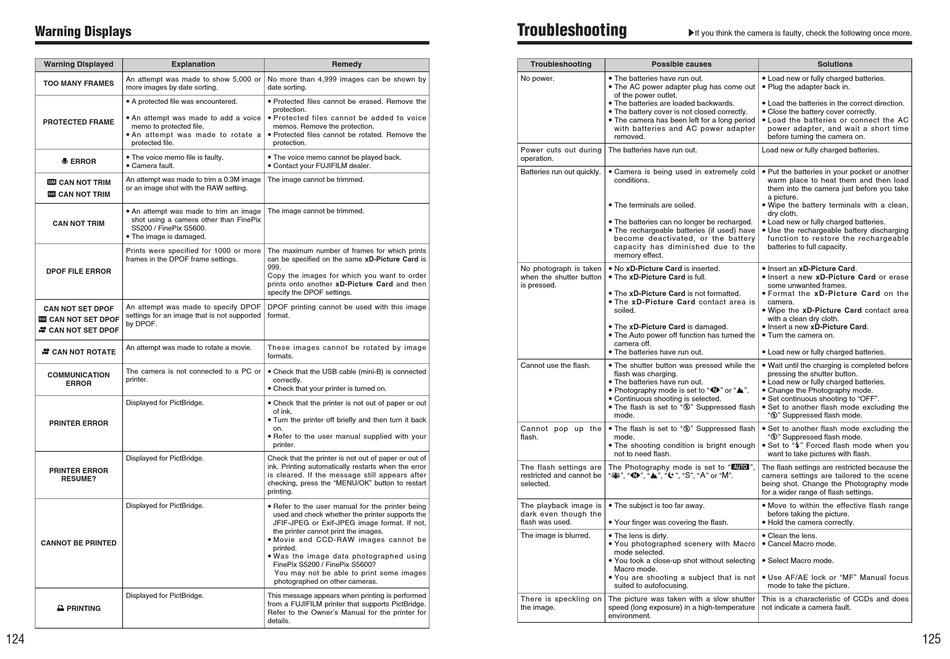

Troubleshooting - FujiFilm FinePix S5200 Owner's Manual

Warning Displays
Warning Displayed Explanation
An attempt was made to show 5,000 or
TOO MANY FRAMES
more images by date sorting.
i A protected file was encountered.
i An attempt was made to add a voice
PROTECTED FRAME
memo to protected file.
i An attempt was made to rotate a
protected file.
i The voice memo file is faulty.
t ERROR
i Camera fault.
An attempt was made to trim a 0.3M image
` CAN NOT TRIM
or an image shot with the RAW setting.
≤ CAN NOT TRIM
i An attempt was made to trim an image
shot using a camera other than FinePix
CAN NOT TRIM
S5200 / FinePix S5600.
i The image is damaged.
Prints were specified for 1000 or more
frames in the DPOF frame settings.
DPOF FILE ERROR
An attempt was made to specify DPOF
CAN NOT SET DPOF
settings for an image that is not supported
≤ CAN NOT SET DPOF
by DPOF.
r CAN NOT SET DPOF
An attempt was made to rotate a movie.
r CAN NOT ROTATE
The camera is not connected to a PC or
COMMUNICATION
printer.
ERROR
Displayed for PictBridge.
PRINTER ERROR
Displayed for PictBridge.
PRINTER ERROR
RESUME?
Displayed for PictBridge.
CANNOT BE PRINTED
Displayed for PictBridge.
u PRINTING
124
Remedy
No more than 4,999 images can be shown by
date sorting.
i Protected files cannot be erased. Remove the
protection.
i Protected files cannot be added to voice
memos. Remove the protection.
i Protected files cannot be rotated. Remove the
protection.
i The voice memo cannot be played back.
i Contact your FUJIFILM dealer.
The image cannot be trimmed.
The image cannot be trimmed.
The maximum number of frames for which prints
can be specified on the same xD-Picture Card is
999.
Copy the images for which you want to order
prints onto another xD-Picture Card and then
specify the DPOF settings.
DPOF printing cannot be used with this image
format.
These images cannot be rotated by image
formats.
i Check that the USB cable (mini-B) is connected
correctly.
i Check that your printer is turned on.
i Check that the printer is not out of paper or out
of ink.
i Turn the printer off briefly and then turn it back
on.
i Refer to the user manual supplied with your
printer.
Check that the printer is not out of paper or out of
ink. Printing automatically restarts when the error
is cleared. If the message still appears after
checking, press the "MENU/OK" button to restart
printing.
i Refer to the user manual for the printer being
used and check whether the printer supports the
JFIF-JPEG or Exif-JPEG image format. If not,
the printer cannot print the images.
i Movie and CCD-RAW images cannot be
printed.
i Was the image data photographed using
FinePix S5200 / FinePix S5600?
You may not be able to print some images
photographed on other cameras.
This message appears when printing is performed
from a FUJIFILM printer that supports PictBridge.
Refer to the Owner's Manual for the printer for
details.

Troubleshooting

eIf you think the camera is faulty, check the following once more.
Troubleshooting Possible causes
i The batteries have run out.
No power.
i The AC power adapter plug has come out
of the power outlet.
i The batteries are loaded backwards.
i The battery cover is not closed correctly.
i The camera has been left for a long period
with batteries and AC power adapter
removed.
Power cuts out during The batteries have run out.
operation.
i Camera is being used in extremely cold
Batteries run out quickly.
conditions.
i The terminals are soiled.
i The batteries can no longer be recharged.
i The rechargeable batteries (if used) have
become deactivated, or the battery
capacity has diminished due to the
memory effect.
No photograph is taken i No xD-Picture Card is inserted.
when the shutter button i The xD-Picture Card is full.
is pressed.
i The xD-Picture Card is not formatted.
i The xD-Picture Card contact area is
soiled.
i The xD-Picture Card is damaged.
i The Auto power off function has turned the
camera off.
i The batteries have run out.
Cannot use the flash. i The shutter button was pressed while the
flash was charging.
i The batteries have run out.
i Photography mode is set to "
i Continuous shooting is selected.
v
i The flash is set to " " Suppressed flash
mode.
v
Cannot pop up the i The flash is set to " " Suppressed flash
flash. mode.
i The shooting condition is bright enough
not to need flash.
The flash settings are The Photography mode is set to "
√ À , / M
restricted and cannot be " ", " ", " ", " ", " ", "
selected.
The playback image is i The subject is too far away.
dark even though the
flash was used. i Your finger was covering the flash.
The image is blurred. i The lens is dirty.
i You photographed scenery with Macro
mode selected.
i You took a close-up shot without selecting
Macro mode.
i You are shooting a subject that is not
suited to autofocusing.
There is speckling on The picture was taken with a slow shutter
the image. speed (long exposure) in a high-temperature
environment.
Solutions
i Load new or fully charged batteries.
i Plug the adapter back in.
i Load the batteries in the correct direction.
i Close the battery cover correctly.
i Load the batteries or connect the AC
power adapter, and wait a short time
before turning the camera on.
Load new or fully charged batteries.
i Put the batteries in your pocket or another
warm place to heat them and then load
them into the camera just before you take
a picture.
i Wipe the battery terminals with a clean,
dry cloth.
i Load new or fully charged batteries.
i Use the rechargeable battery discharging
function to restore the rechargeable
batteries to full capacity.
i Insert an xD-Picture Card.
i Insert a new xD-Picture Card or erase
some unwanted frames.
i Format the xD-Picture Card on the
camera.
i Wipe the xD-Picture Card contact area
with a clean dry cloth.
i Insert a new xD-Picture Card.
i Turn the camera on.
i Load new or fully charged batteries.
i Wait until the charging is completed before
pressing the shutter button.
i Load new or fully charged batteries.
À " or " , ". i Change the Photography mode.
i Set continuous shooting to "OFF".
i Set to another flash mode excluding the
" v " Suppressed flash mode.
i Set to another flash mode excluding the
" v " Suppressed flash mode.
i Set to " d
" Forced flash mode when you
want to take pictures with flash.
B ", The flash settings are restricted because the
< >
" or " ". camera settings are tailored to the scene
being shot. Change the Photography mode
for a wider range of flash settings.
i Move to within the effective flash range
before taking the picture.
i Hold the camera correctly.
i Clean the lens.
i Cancel Macro mode.
i Select Macro mode.
i Use AF/AE lock or "MF" Manual focus
mode to take the picture.
This is a characteristic of CCDs and does
not indicate a camera fault.
125
