Removing the SAS (Serial attached SCSI)
Backplane
1.
Follow the procedures in
2.
Remove:
–
front bezel
–
cover
–
cooling shroud
–
optical drive
–
hard-drive carrier
–
hard-drive assembly
3.

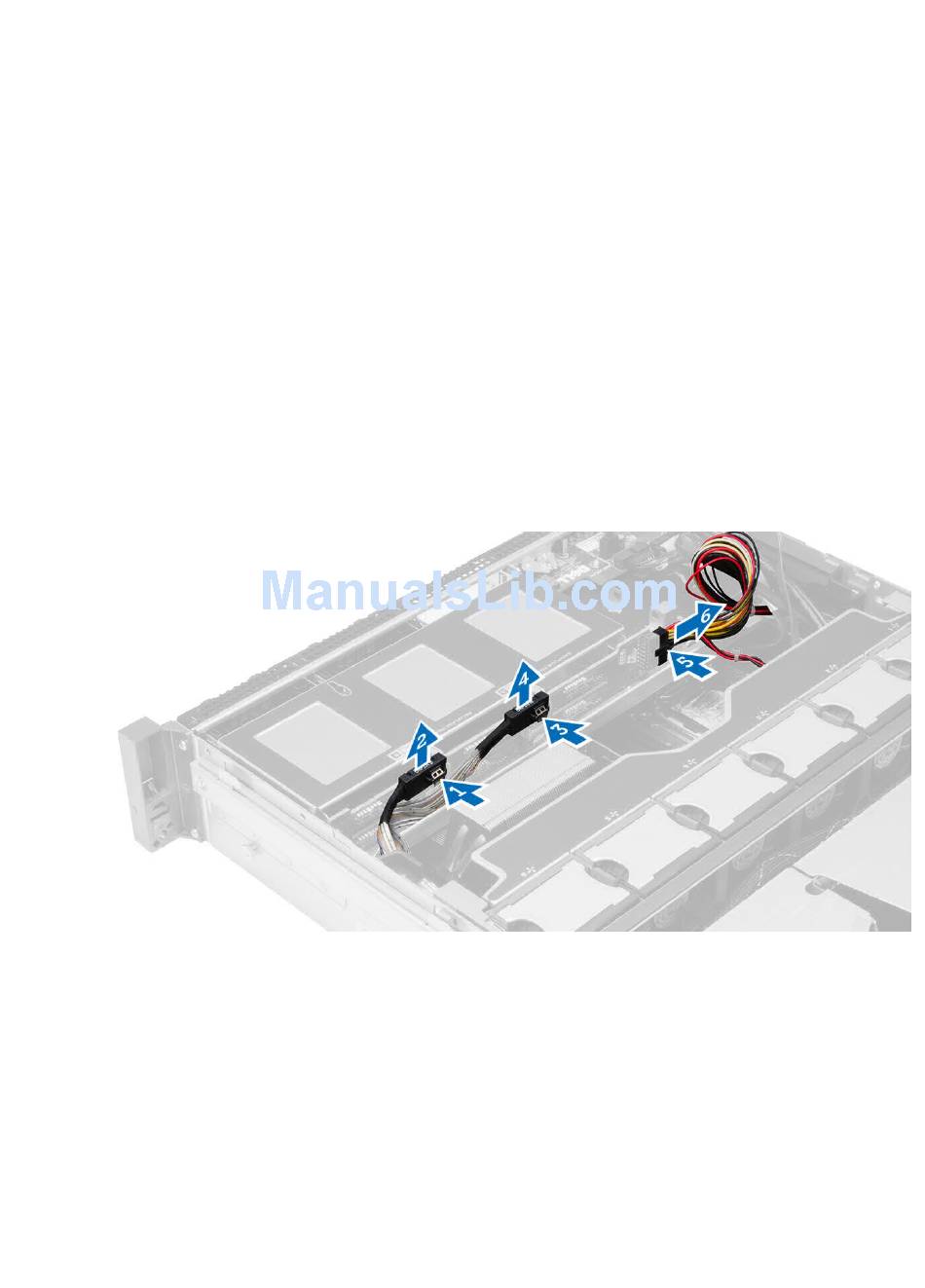

Disconnect all the SAS cables by pressing on their respective release tabs.
4.
Push the blue release tabs in the direction of the arrows towards the hard-drive assembly to release the SAS
backplane from the system board.
a) Lift and remove the SAS backplane from the computer.
Before Working Inside Your Computer .
