Photography Functions; Setting The Shutter Speed; Setting The Aperture - FujiFilm FinePix FinePix S9600 Owner's Manual

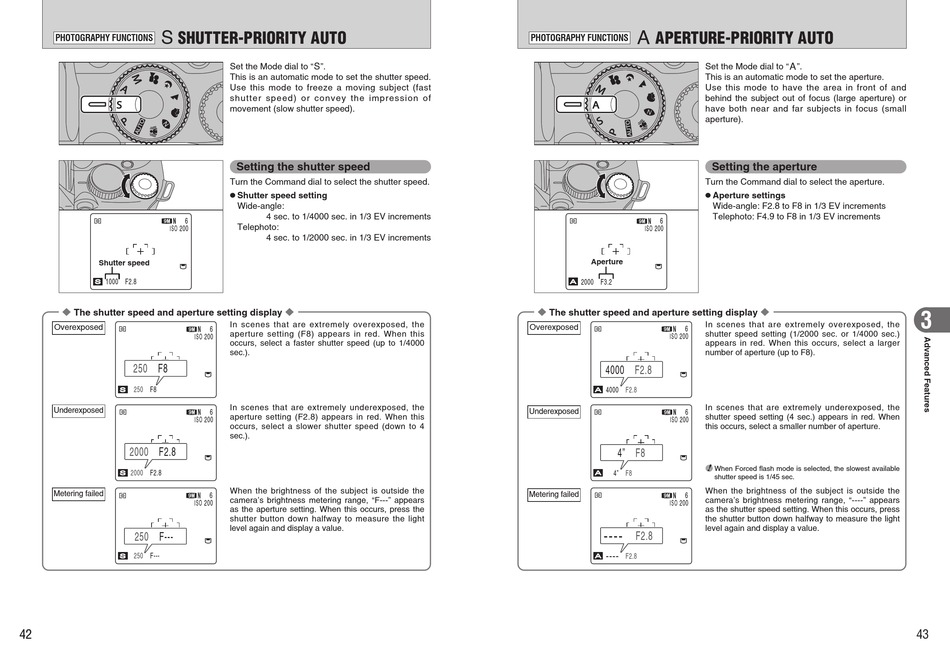

M SHUTTER-PRIORITY AUTO

PHOTOGRAPHY FUNCTIONS

6
N
ISO 200
Shutter speed
1000 F2.8
◆
The shutter speed and aperture setting display
Overexposed
N
ISO 200
250 F8
250 F8
Underexposed
N
ISO 200
2000 F2.8
2000 F2.8
Metering failed
N
ISO 200
250 F---
250 F---
42 42
M
Set the Mode dial to " ".
This is an automatic mode to set the shutter speed.
Use this mode to freeze a moving subject (fast
shutter speed) or convey the impression of
movement (slow shutter speed).

Setting the shutter speed

Turn the Command dial to select the shutter speed.
h Shutter speed setting
Wide-angle:
4 sec. to 1/4000 sec. in 1/3 EV increments
Telephoto:
4 sec. to 1/2000 sec. in 1/3 EV increments
◆
In scenes that are extremely overexposed, the
6
aperture setting (F8) appears in red. When this
occurs, select a faster shutter speed (up to 1/4000
sec.).
In scenes that are extremely underexposed, the
6
aperture setting (F2.8) appears in red. When this
occurs, select a slower shutter speed (down to 4
sec.).
When the brightness of the subject is outside the
6
camera's brightness metering range, "F---" appears
as the aperture setting. When this occurs, press the
shutter button down halfway to measure the light
level again and display a value.
< APERTURE-PRIORITY AUTO
PHOTOGRAPHY FUNCTIONS
Set the Mode dial to "
This is an automatic mode to set the aperture.
Use this mode to have the area in front of and
behind the subject out of focus (large aperture) or
have both near and far subjects in focus (small
aperture).
Turn the Command dial to select the aperture.
h Aperture settings
N 6
ISO 200
Aperture
2000 F3.2
◆
The shutter speed and aperture setting display
In scenes that are extremely overexposed, the
Overexposed
6
N
shutter speed setting (1/2000 sec. or 1/4000 sec.)
ISO 200
appears in red. When this occurs, select a larger
number of aperture (up to F8).
4000 F2.8
4000 F2.8
In scenes that are extremely underexposed, the
Underexposed 6
N
shutter speed setting (4 sec.) appears in red. When
ISO 200
this occurs, select a smaller number of aperture.
4" F8
●
!
4" F8
When the brightness of the subject is outside the
Metering failed
N 6
camera's brightness metering range, "----" appears
ISO 200
as the shutter speed setting. When this occurs, press
the shutter button down halfway to measure the light
level again and display a value.
- --- - - - - F2.8
--- - -- -- F2.8
<
".

Setting the aperture

Wide-angle: F2.8 to F8 in 1/3 EV increments
Telephoto: F4.9 to F8 in 1/3 EV increments
◆
When Forced flash mode is selected, the slowest available
shutter speed is 1/45 sec.
3
43
