2.2 AP-93

This section introduces the Aruba AP-93 Wireless Access Point (AP) with FIPS 140-2 Level 2 validation.
It describes the purpose of the AP, its physical attributes, and its interfaces.
The Aruba AP-93 is robust-performance 802.11n (2x2:2) MIMO, single radio supporting 2.4 GHz or 5
GHz (802.11a/ b/g/n), indoor wireless access points capable of delivering wireless data rates of up to
300Mbps. This multi-function access point provides wireless LAN access, air monitoring, and wireless
intrusion detection and prevention. The access point works in conjunction with Aruba Mobility Controllers
to deliver high-speed, secure user-centric network services in education, enterprise, finance, government,
healthcare, and retail applications.

2.2.1 Physical Description

The Aruba AP-93 series Access Point is a multi-chip standalone cryptographic module consisting of
hardware and software, all contained in a hard plastic case. The module contains 802.11 a/b/g/n transceiver
and 2 integrated omni-directional multi-band dipole antenna elements (supporting up to 2x2 MIMO with
spatial diversity).
Action
On – Green
Flashing - Green
Off
On - Amber
On – Green
Flashing - Green

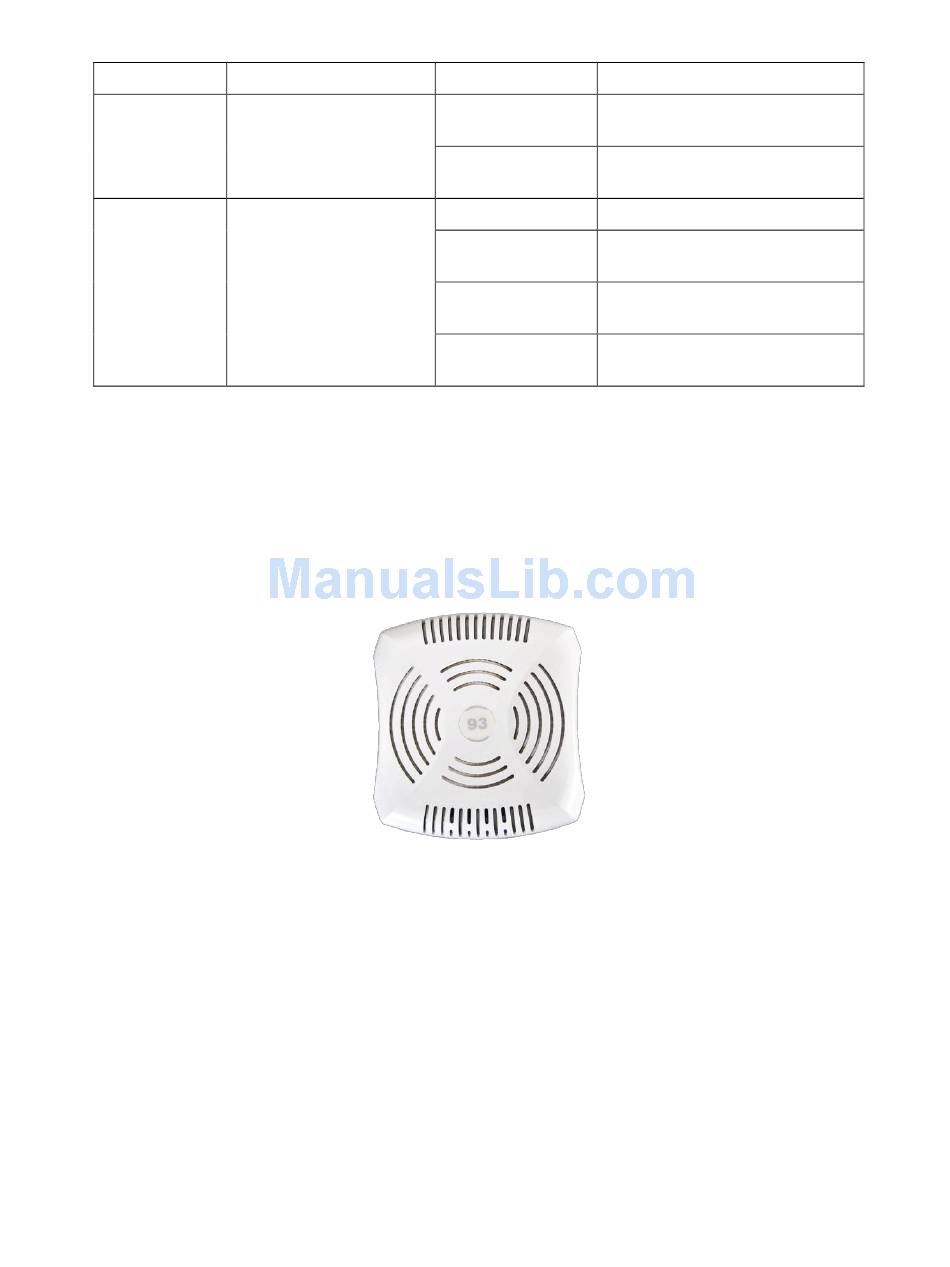

Figure 2 - AP-93 Wireless Access Point
9
Status
2.4GHz radio enabled in 802.11n
mode
2.4GHz Air monitor or RF protect
sensor
5GHz radio disabled
5GHz radio enabled in WLAN
mode
5GHz radio enabled in 802.11n
mode
5GHz Air monitor or RF protect
sensor
