3.2.2 AP-92 TEL Placement
This section displays all the TEL locations of the Aruba AP-92. The AP-92 requires a minimum of 3 TELs
to be applied as follows:
3.2.2.1

To detect access to restricted ports:

1. Spanning the serial port
3.2.2.2

To detect opening of the chassis cover:

2. Spanning the bottom and top chassis covers on the right side
3. Spanning the bottom and top chassis covers on the left side

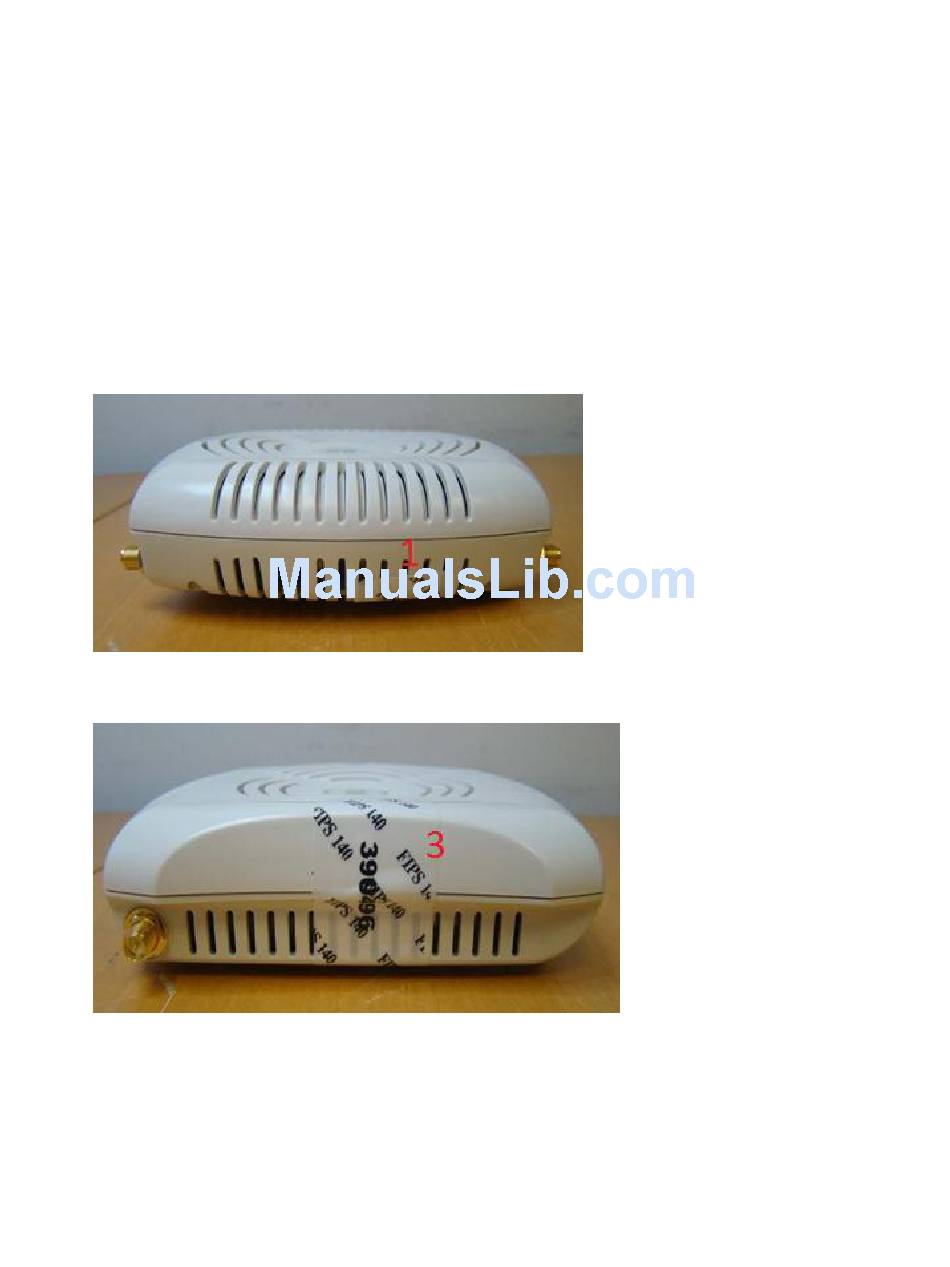

Following is the TEL placement for the AP-92:
Figure 5 - AP-92 Tel placement front view
Figure 6 - Aruba AP-92 Tel placement left view
