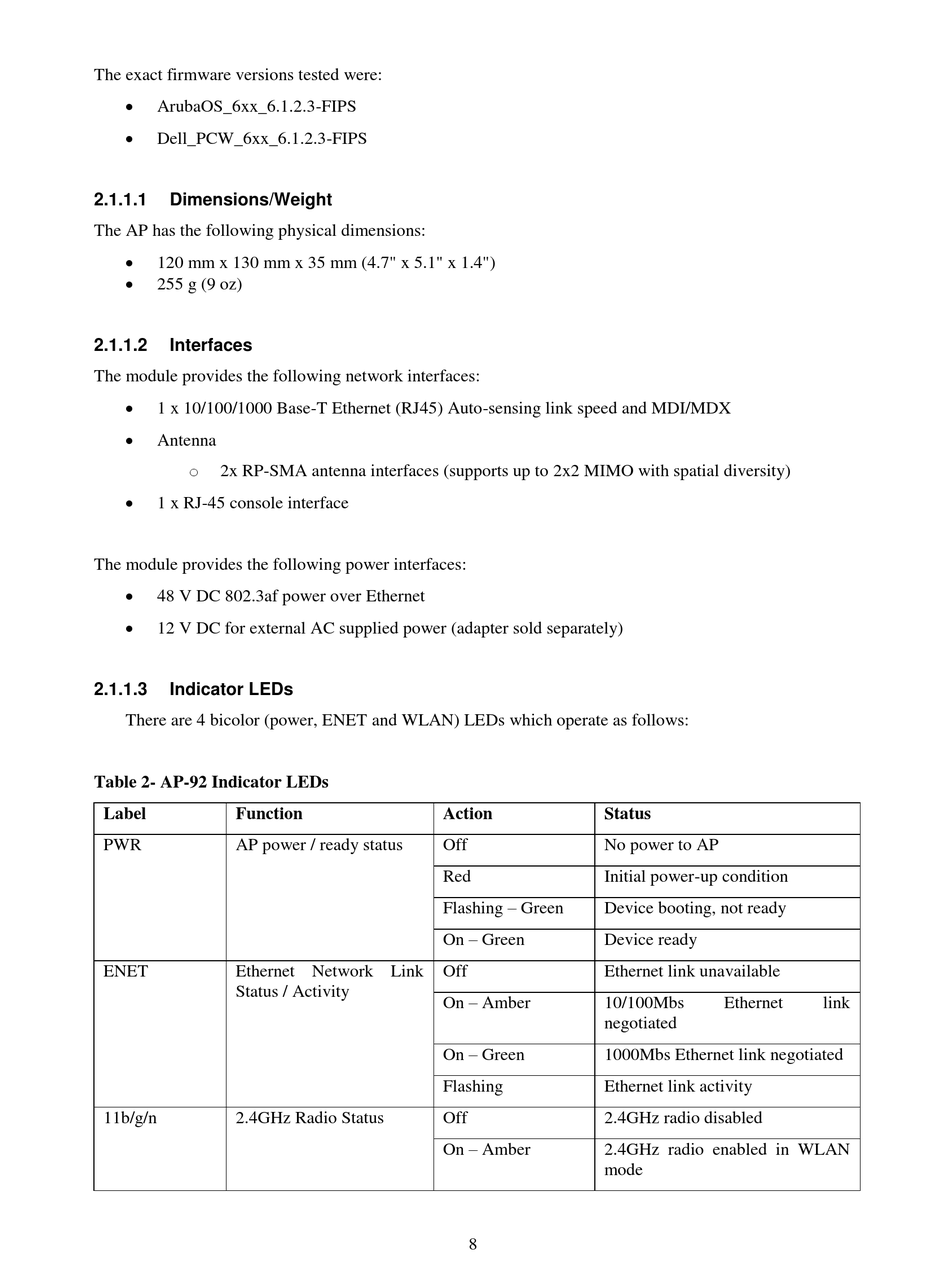

The exact firmware versions tested were:

ArubaOS_6xx_6.1.2.3-FIPS

Dell_PCW_6xx_6.1.2.3-FIPS
2.1.1.1

Dimensions/Weight

The AP has the following physical dimensions:

120 mm x 130 mm x 35 mm (4.7" x 5.1" x 1.4")

255 g (9 oz)
2.1.1.2

Interfaces

The module provides the following network interfaces:

1 x 10/100/1000 Base-T Ethernet (RJ45) Auto-sensing link speed and MDI/MDX

Antenna
o
2x RP-SMA antenna interfaces (supports up to 2x2 MIMO with spatial diversity)

1 x RJ-45 console interface
The module provides the following power interfaces:

48 V DC 802.3af power over Ethernet

12 V DC for external AC supplied power (adapter sold separately)
2.1.1.3

Indicator LEDs

There are 4 bicolor (power, ENET and WLAN) LEDs which operate as follows:
Table 2- AP-92 Indicator LEDs
Label Function
PWR AP power / ready status
ENET Ethernet Network Link
Status / Activity
11b/g/n 2.4GHz Radio Status
Action Status
Off No power to AP
Red Initial power-up condition
Flashing – Green
Device booting, not ready
On – Green
Device ready
Off Ethernet link unavailable
On – Amber
10/100Mbs
negotiated
On – Green
1000Mbs Ethernet link negotiated
Flashing Ethernet link activity
Off 2.4GHz radio disabled
On – Amber
2.4GHz radio enabled in WLAN
mode
8
Ethernet link
