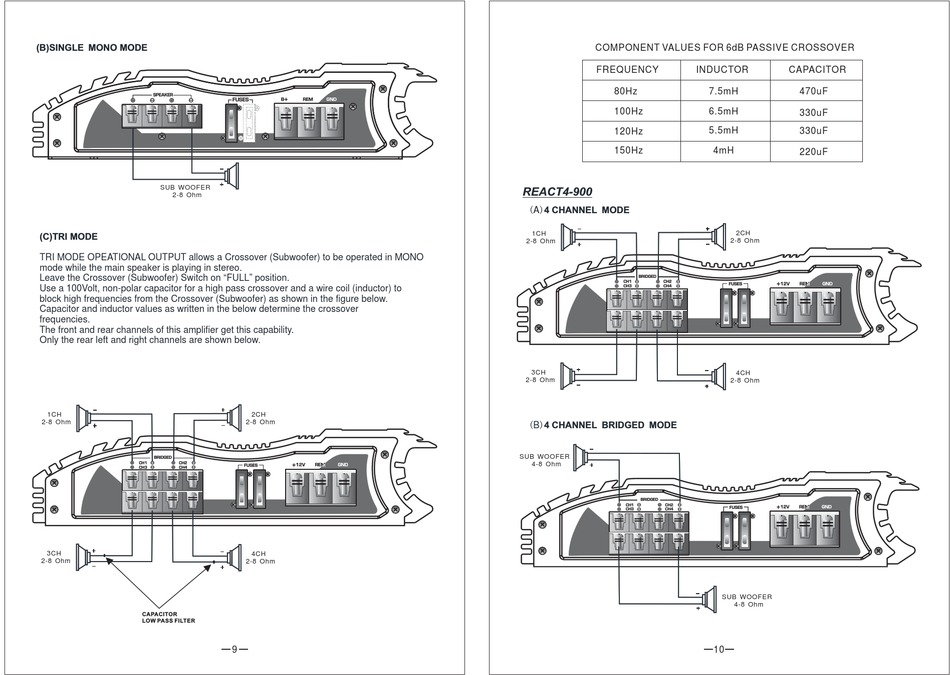

(B) SINGLE MONO MODE
SPEAKER
SUB WOOFER
2-8 Ohm
(C)TRI MODE
TRI MODE OPEATIONAL OUTPUT allows a Crossover (Subwoofer) to be operated in MONO
mode while the main speaker is playing in stereo.
Leave the Crossover (Subwoofer) Switch on "FULL" position.
Use a 100Volt, non-polar capacitor for a high pass crossover and a wire coil (inductor) to
block high frequencies from the Crossover (Subwoofer) as shown in the figure below.
Capacitor and inductor values as written in the below determine the crossover
frequencies.
The front and rear channels of this amplifier get this capability.
Only the rear left and right channels are shown below.
1CH
2-8 Ohm
BRIDGED
CH1 CH2
CH3 CH4
3CH
2-8 Ohm
CAPACITOR
LOW PASS FILTER
FUSES B REM GND
2CH
2-8 Ohm
FUSES 12V REM GND
4CH
2-8 Ohm
9
COMPONENT VALUES FOR 6dB PASSIVE CROSSOVER
FREQUENCY INDUCTOR
80Hz
100Hz
120Hz
150Hz
REACT4-900
( )
A 4 CHANNEL MODE
1CH
2-8 Ohm
BRIDGED
CH1 CH2
CH3 CH4
3CH
2-8 Ohm
( )
B 4 CHANNEL BRIDGED MODE
SUB WOOFER
4-8 Ohm
CAPACITOR
7.5mH 470uF
6.5mH
330uF
5.5mH
330uF
4mH
220uF
2CH
2-8 Ohm
12V REM GND
FUSES
4CH
2-8 Ohm
SUB WOOFER
4-8 Ohm
10
