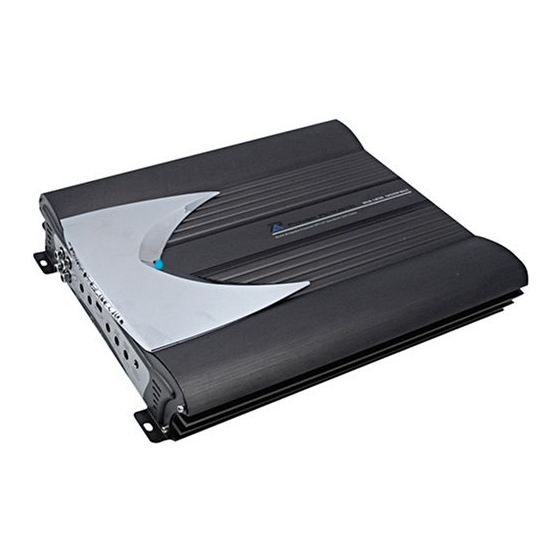

OV2-420/OV2-600/OV2-800/OV2-1250/OV2-1800
65-C0486-MA
Model No.:
OV2-2200/OV2-2600/OV4-840/OV4-1200/OV4-1600
Owner s Manual
OV2-420/OV2-600/OV2-800/OV2-1250/OV2-1800
OV2-2200/OV2-2600/OV4-840/OV4-1200/OV4-1600
,
INTRODUCTION
Amplifiers provide high-performance sound reinforcement for your mobile audio equipment.
It s versatility enables compatibility with optional Equalizers,Frequency Dividing Network
Crossovers,and other audio processors in a customized system.The Multi-Mode bridging
Capabilities allow flexibility in hosting several different speaker configurations.
To achieve optimum performance,it is highly recommended that you read this Owner s
Manual before beginning installation.
FEATURES
Full Mosfet Power Supply
PWM Circuitry
Full Selectable Crossover Hi/Full/Low
Three Way Protection Circuit
2 Ohm Stable Stereo
Tri-Mode Capable
Super Cool Blue Led
Chrome Top Plate Panel
Variable Low Pass 40Hz-250Hz/30Hz-500Hz
Variable Hi Pass 40Hz-250Hz/50-500Hz
Variable 24 dB Bass Boost @ 40Hz
Frequency Response: 10Hz to 30 KHz
S/N Ratio: 98dB
THD: 0.02%
System Distress Indicator
4 Gauge Power/Ground Connection
Platinum Plated RCA Connectors
Line Output
High/Low Level Inputs With Floating Ground
WARNING
High powered audio systems in a vehicle are capable of generating Live Concert high
levels of sound pressure,Continual exposure to excessively high volume sound levels may
cause hearing loss or damage.Also,operation of a motor vehicle while listening to audio
equipments at high volume levels may impair your ability to hear external sounds such as;
horns,warning signals,or emergency vehicles,thus constituting to a potential traffic hazard.
In the interest of safety,Consumer Electronics recommends listening at lower volume levels
While driving.
2
：A2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OV2-1250 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Acoustik OV2-1250

Summary of Contents for Power Acoustik OV2-1250

  • Page 1 OV2-420/OV2-600/OV2-800/OV2-1250/OV2-1800 65-C0486-MA Model No.: ：A2 OV2-2200/OV2-2600/OV4-840/OV4-1200/OV4-1600 INTRODUCTION Amplifiers provide high-performance sound reinforcement for your mobile audio equipment. It s versatility enables compatibility with optional Equalizers,Frequency Dividing Network Crossovers,and other audio processors in a customized system.The Multi-Mode bridging Capabilities allow flexibility in hosting several different speaker configurations.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PLANNING YOUR SYSTEM Before beginning the installation,consider the following: a.If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left,and cooling requirements are met. PLANNING YOUR SYSTEM..........b.Speaker level or RCA,which to use and why? If your source unit is equipped with both types of outputs,Use the RCA s for the amplifier MOUNTING YOUR AMPLIFIER...........

  • Page 3: Wiring Connection

    Amplifier be grounded to a clean,bare,metal surface of the vehicles chassis. BASS BOOST NOTE: OV2-1250/OV2-1800/OV2-2200/OV2-2600 GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT.(1 METER). (2)+12Volt(Fused) Constant Power:To Battery(+) Due to the power requirements of the Amplifier,this connection should be made directly to the positive (+) terminal of battery.For safety measure,install an in-line Fuse...

  • Page 4: Power Indicator Led

    OV4-840/OV4-1200/OV4-1600 INPUT SENSITIVITY(LEVEL) CONTROL CHASSIS GROUND-Black In order to achieve maximum signal-to-noise performance,this control adjusts the signal 3 CH(-) 1 CH(-) level from your Car Stereo/Source,to match the Amplifier sensitivity.It is NOT a volume 3 CH(+) 1 CH(+) control. To adjust,proceed as follows: a.Set INPUT LEVEL Control at mid-point.

  • Page 5: Input Sensitivity Control

    OV2-800/OV2-1250/OV2-1800/OV2-2200/OV2-2600 (C)TRI MODE TRI MODE OPEATIONAL OUTPUT allows a Crossover(Subwoofer) to be operated in MONO mode while the main speaker is playing in stereo. " " Leave the Crossover(Subwoofer)Switch on FULL position. Use a 100Volt,non-polar capacitor for a high pass crossover and a wire coil (inductor)to block high frequencies from the Crossover (Subwoofer)as shown in the figure below.
  • Page 6 (D)6 CHANNEL MODE Model:OV4-840/OV4-1200/OV4-1600 (A)4 CHANNEL MODE 2-4Ohm 2-4Ohm RIGHT WOOFER 8 Ohm INDUCTOR LOW PASS FILTER 4-8Ohm CAPACITOR HIGH PASS FILTER 4-8Ohm 2-4Ohm 2-4Ohm (B)3 CHANNEL MODE 2-4Ohm 2-4Ohm 4-8Ohm CAPACITOR HIGH PASS FILTER 4-8Ohm INDUCTOR LOW PASS FILTER LEFT 1CH/2CH BRIDGE WOOFER...

  • Page 7: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE WARNING system SYMPTOMS CHECK POINTS CURE Check fuses in amplifier. In the power Be sure Turn-on lead is connected LED illuminated? Check signal leads.Check gain control. Check Tuner/Deck volume level. NO SOUND Clean contacts on fuse holders. Check for speaker short or Is the Diagnosis amplifier overheating.

  • Page 8: Specification

    SPECIFICATIONS MODEL NO OV2-420 OV2-600 OV2-800 OV2-1250 OV2-1800 MAX Power@2 Ohm 420W 600W 800W 1250W 1800W @4 Ohm 80WX2CH 95WX2CH 150WX2CH 220WX2CH 300WX2CH 95WX2CH 120WX2CH 180WX2CH 280WX2CH 380WX2CH @2 Ohm Bridged Power 190W 240W 360W 560W 760W <0.02% <0.02% <0.02% <0.02%...
