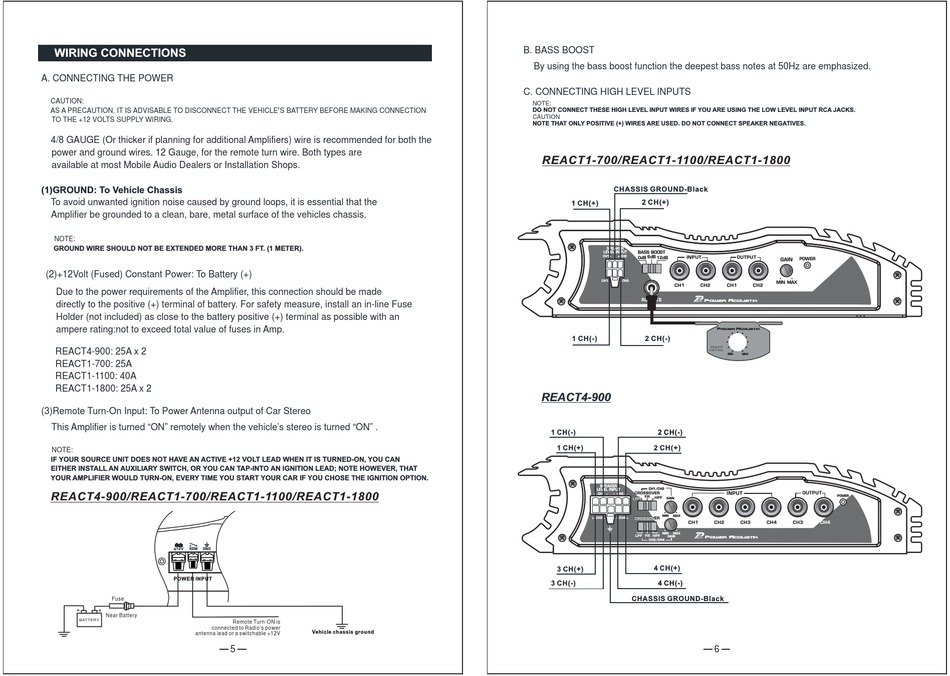

WIRING CONNECTIONS
A. CONNECTING THE POWER
CAUTION:
AS A PRECAUTION, IT IS ADVISABLE TO DISCONNECT THE VEHICLE S BATTERY BEFORE MAKING CONNECTION
TO THE +12 VOLTS SUPPLY WIRING.
4/8 GAUGE (Or thicker if planning for additional Amplifiers) wire is recommended for both the
power and ground wires. 12 Gauge, for the remote turn wire. Both types are
available at most Mobile Audio Dealers or Installation Shops.
(1)GROUND: To Vehicle Chassis
To avoid unwanted ignition noise caused by ground loops, it is essential that the
Amplifier be grounded to a clean, bare, metal surface of the vehicles chassis.
NOTE:
GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT. (1 METER).
(2)+12Volt (Fused) Constant Power: To Battery (+)
Due to the power requirements of the Amplifier, this connection should be made
directly to the positive (+) terminal of battery. For safety measure, install an in-line Fuse
Holder (not included) as close to the battery positive (+) terminal as possible with an
ampere rating:not to exceed total value of fuses in Amp.
REACT4-900: 25A x 2
REACT1-700: 25 A
REACT - 00: 0A 1 11 4
REACT1- 18 00: 2 A 2 5 x
(3)Remote Turn-On Input: To Power Antenna output of Car Stereo
This Amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON" .
NOTE:
IF YOUR SOURCE UNIT DOES NOT HAVE AN ACTIVE +12 VOLT LEAD WHEN IT IS TURNED-ON, YOU CAN
EITHER INSTALL AN AUXILIARY SWITCH, OR YOU CAN TAP-INTO AN IGNITION LEAD; NOTE HOWEVER, THAT
YOUR AMPLIFIER WOULD TURN-ON, EVERY TIME YOU START YOUR CAR IF YOU CHOSE THE IGNITION OPTION.
REACT4-900/REACT1-700/REACT1-1100/REACT1-1800
12V REM GND
POWER INPUT
Fuse
Near Battery
BATTERY
connected to Radio's power
antenna lead or a switchable +12V
Remote Turn-ON is
Vehicle chassis ground
5
B. BASS BOOST
By using the bass boost function the deepest bass notes at 50Hz are emphasized.
C. CONNECTING HIGH LEVEL INPUTS
NOTE:
DO NOT CONNECT THESE HIGH LEVEL INPUT WIRES IF YOU ARE USING THE LOW LEVEL INPUT RCA JACKS.
CAUTION
NOTE THAT ONLY POSITIVE (+) WIRES ARE USED. DO NOT CONNECT SPEAKER NEGATIVES.
REACT1-700/REACT1-1100/REACT1-1800
CHASSIS GROUND-Black
2 CH(+)
1 CH(+)
SPEAKER
LEVEL INPUT BASS BOOST
CH1 CH2 6dB
0dB 12dB INPUT
CH1 CH2
CH1 CH2
REMOTE
1 CH(-) 2 CH(-)
REACT4-900
1 CH(-) 2 CH(-)
1 CH(+) 2 CH(+)
SPEAKER
CH1/CH2
LEVEL INPUT
CROSSOVER
CH1 CH2
FR
LPF HPF
GAIN
MIN MAX
CH3 CH4 CROSSOVER
CH1
MIN MAX
LPF FR HPF
GAIN
CH3/CH4
4 CH(+)
3 CH(+)
3 CH(-) 4 CH(-)
CHASSIS GROUND-Black
OUTPUT
GAIN POWER
MIN MAX
CH1 CH2
REMOTE
CONTROL
MIN MIN MAX
INPUT OUTPUT
POWER
CH2 CH3 CH4 CH3 CH4
