NOTE: CONNECT TO ONLY ONE LEFT/RIGHT INPUT
Step 6: Bring the Subwoofer cabinet to the wall baffle. Connect the Subwoofer Driver Leads from
the cabinet to the Low Frequency Driver Wires from the Module.

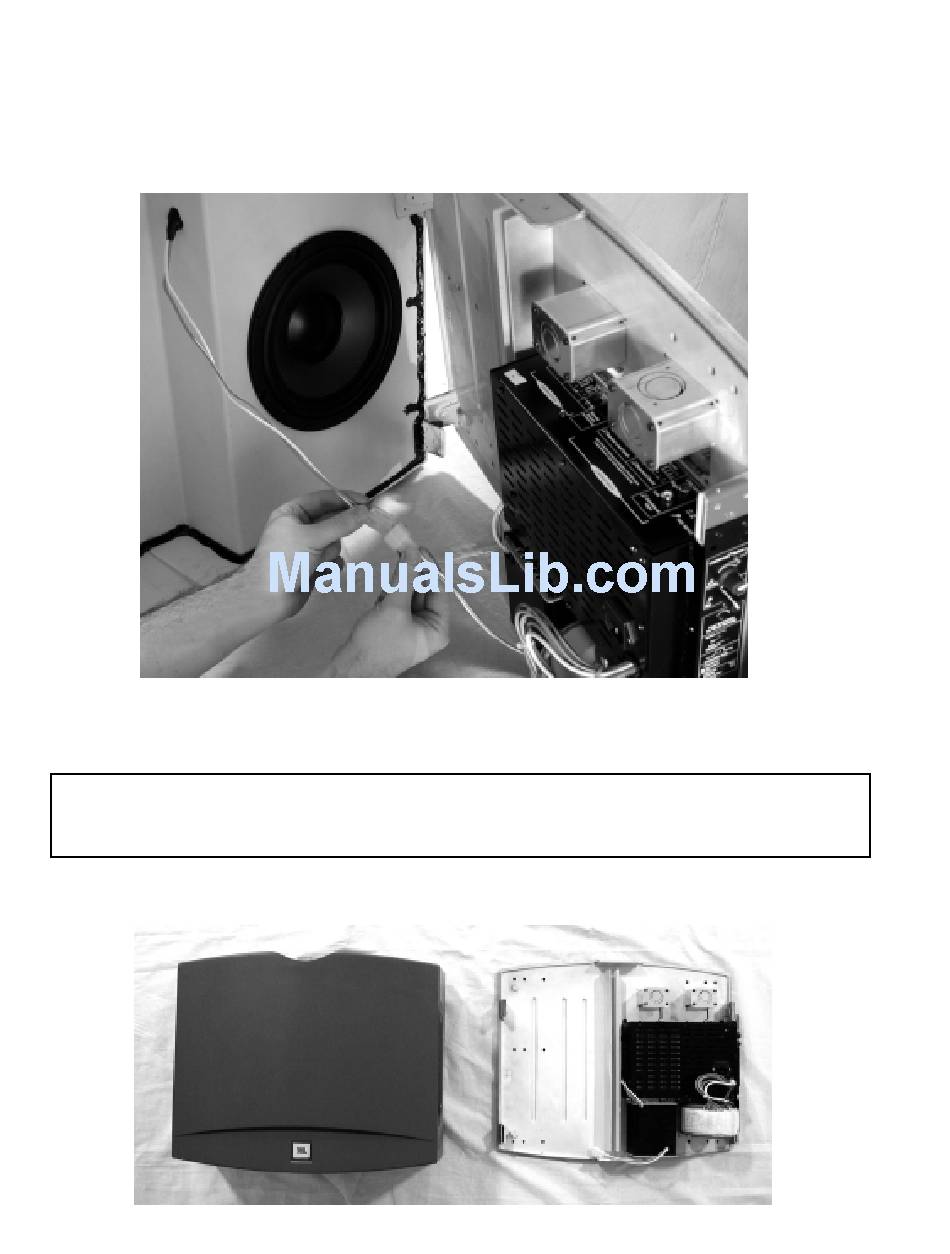

Figure 8: Connecting the Subwoofer Driver
Step 7: Place the Subwoofer cabinet onto the Wall Baffle. The mounting tabs should all be lined up.
Hold the Cabinet in place until screws are placed and tightened.
It is important the cabinet be oriented in its intended upright position. This is very important for correct air
circulation. For the Wall Baffle, the correct orientation has the electronic module in the bottom right corner. The
Subwoofer is in its upright position when the logos on the front are in correct position to be read. See Figure 9.
Figure 9 – Subwoofer Baffle and Cabinet in UPRIGHT Position
