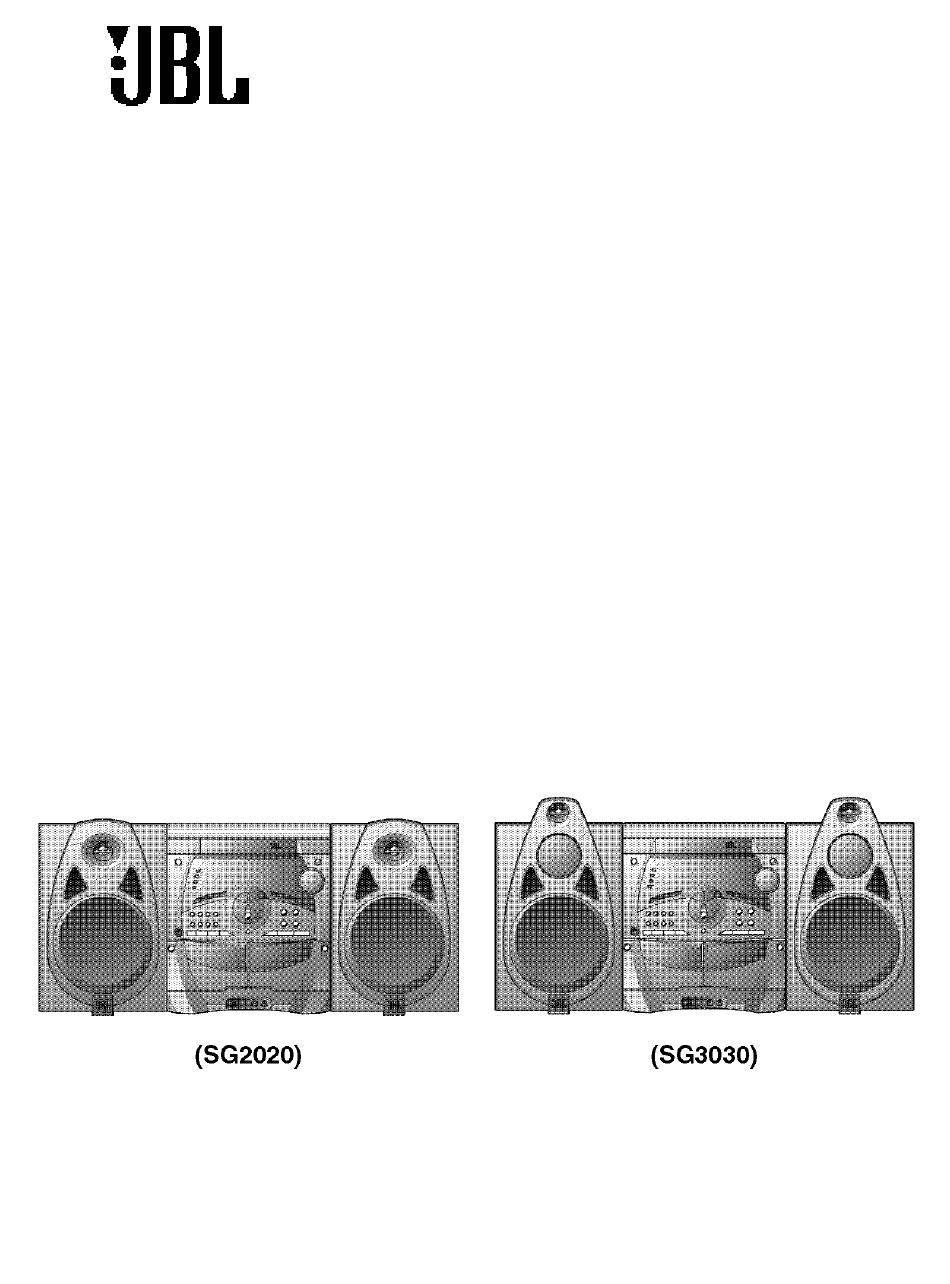

Soundgear Series SG2020 SG3030 3 CD Changer Hi-Fi System PRELIMINARY SERVICE MANUAL JBL Incorporated, Inc. 250 Crossways Park Dr. Woodbury, New York 11797...
SERVICING PRECAUTIONS NOTES REGARDING HANDLING OF THE PICK-UP 1. Notes for transport and storage 1) The pick-up should always be left in its conductive bag until immediately prior to use. 2) The pick-up should never be subjected to external pressure or impact. Drop impact Storage in conductive bag 2.
Page 4
NOTES REGARDING COMPACT DISC PLAYER REPAIRS 1. Preparations 1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These compo- nents are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.
ESD PRECAUTIONS Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components com- monly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated cir- cuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
ADJUSTMENTS This set has been aligned at the factory and normally will not require further adjustment. As a result, it is not recommended that any attempt is made to modificate any circuit. If any parts are replaced or if anyone tam- pers with the adjustment, realignment may be necessary.
Page 8
3. RECORD BIAS ADJUSTMENT Deck Mode Test Tape Test Point Adjustment Adjust for ERASE HEAD 60kHz±5kHz (Auto-stop) Rec/Pause MTT-5511 L201 WIRE(PN402) 85kHz±5kHz (Auto-Reverse) Record/Playback PN402 Frequency Counter Head and Pause Mode Test Tape Unit MTT-5511 Record/Playback head Figure 3. Record Bias Adjustment Connection Diagram 4.
TROUBLESHOOTING GUIDE Turn power on. Check power supply circuit. Is power on? (Check PN 807) Check laser circuit. Does initial read work? Check focus circuit. Check disc. Check tracking servo circuit. Does it play? Check audio circuit. Does it output audio?
Page 10
Fails to initial read Does laser light? Disc motor turns. Does tracking Does signal Does TE2 signal Does RF servo work? appear at appear at pin waveform Defective IC Lower envelope TP801(TEO)? of IC801? appear? 801, pick up of TP801(RF) TP 801(RF) and/or open waveform is flat.
Page 11
Laser does not light. Is “3.5V” applied to pin of IC 801? Did pickup return to Is data transferred from Defective MICOM. innermost circular? MICOM IC ? Does voltage appear at IC Defective IC 801, 803 803 pin Defective slide motor and/or connector.
Page 12
Laser lights. Does IC 801 out focus search signal? Does lens move up/down? Defective IC801 IC 801 pin (FEO) Is focus search signal applied to pin Defective IC803 CN801? Open activator and/or connector. Confirm Does TP 801 RF signal appear even in initial low level? read with...
Page 13
Does FE1 signal appear? IC 801 Defective IC 801. Open pick diode Does FZC signal (focus zero cross signal) appear at pin of IC 801, ISTAT (SENSE) (Focus servo turns terminal? ON by FZC signal Defective IC 801. of FOK mod.) ISTAT(SENSE) Does SMON signal appear at pin...
WAVEFORMS OF MAJOR CHECK POINT 1. HF signal (RF signal ) waveform 2. EFM signal (pin IC 801)waveform (Test Point TP801) during normal play during Normal Play 0.5V/Div. 2V/Div. 500nS/Div. 500nS/Div. 3. Focus coil drive waveform(Pin NO 1, 2 of IC 803) 3.
