- Page 1 ® DP Series ™ DrivePack DP3–DPIP Operator’s Guide...
- Page 3 ® DP Series DrivePack™ DP3–DPIP Operator’s Guide Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7.
-
Page 4: Watch For These Symbols
THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE DRIVEPACK CHASSIS, INPUT MODULE OR AC INPUT COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WATCH FOR THESE SYMBOLS The lightning bolt triangle is used to alert the user to the risk of electric shock. The exclamation point triangle is used to alert the user to important operating or maintenance instructions. - Page 5 Declaration of Conformity Safety and EMC Compliance Specifications EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M EN 55022:2003 Limits and Methods of measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits;...

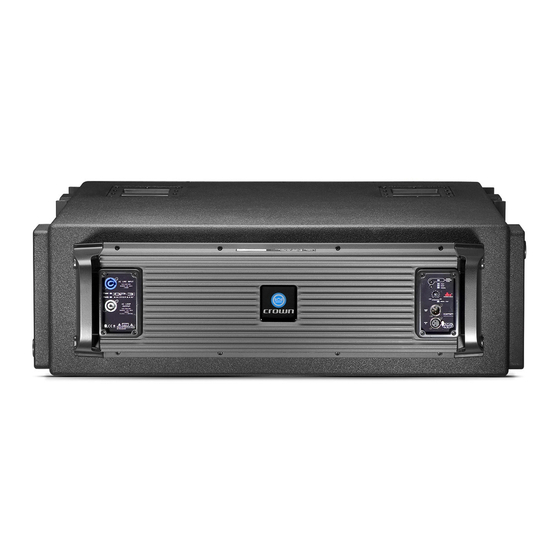

- Page 6 ® DP Series enclosure, creating a seamless electro-mechanical system that offers both convenience and portability along with the unmatched reliability, accuracy and superb sound of JBL loudspeakers. The DrivePack includes onboard DSP functionality to communicate readiness and operational status, including a self-test cycle and lighted indicators for fault detection upon power-up.
-
Page 7: Audio Out
Controls, Indicators and Connectors See Figure 1 CONTROLS 1) Subwoofer Filter Enable Select Switch a) Momentary, Enables or disables the selected function. On subwoofer applications the low-pass frequency is set to 80 Hz and for full range systems the high-pass is raised to 80 Hz. - Page 8 AC POWER REQUIREMENTS ® DP Series line array elements are equipped with a DP multi-channel Crown Class-I power amplifier and dbx™ loudspeaker specific DSP electronics and require appropriate AC power. CAUTION: In compliance with safety agency criteria and proper system operation, it is critical that the system installer observe all electrical safety practices at all times and provide proper earth grounding for all AC Power connections.
-
Page 9: Ac Power Module
Line Voltage Selection: The DrivePack features an international Auto-Sensing power supply and will automatically select the correct operating voltage range window. Automatic voltage selection is between 100-120VAC and 200-240VAC operation, 50/60Hz. Line Voltage Tolerance: The amp will operate normally (with expected de-rating in power output during low line conditions) over a range of 100-120VAC +/-10% or 200-240VAC +/-10% AC input voltage. - Page 10 PROTECTIVE JACKET INSTALLATION Complies with IEC 60529 - IPX-3, not evaluated for outdoor use 1. Remove two protective jackets from the protective jacket kit. To install, open the jacket by “unzipping” the Velcro strip and locate two smaller Velcro tabs on the inside of the jacket. See Figure 2 Figure 2 2.
- Page 11 5. Wrap the opposite end of the open jacket around the riser ring as shown in Figure 5. Be certain that the bottom of the protective jacket is tucked-in all the way around the riser ring as shown. Figure 5 6.
- Page 12 DP SERIES SYSTEM SUPPORT Mailing Address: Outside the USA: JBL Professional Contact the JBL Professional Distributor in your area. A 8500 Balboa Blvd. complete list of JBL Professional international distributors is Northridge, CA 91329 USA provided at our U.S.A. website - www.jblpro.com...
