13"
max.
cabinet
depth
3 / " x 10" Rectangular
1
4
duct location (rear)
7" Round or
3 / " x 10" rectangular
1
4
duct location (top)
7 / "
1
4

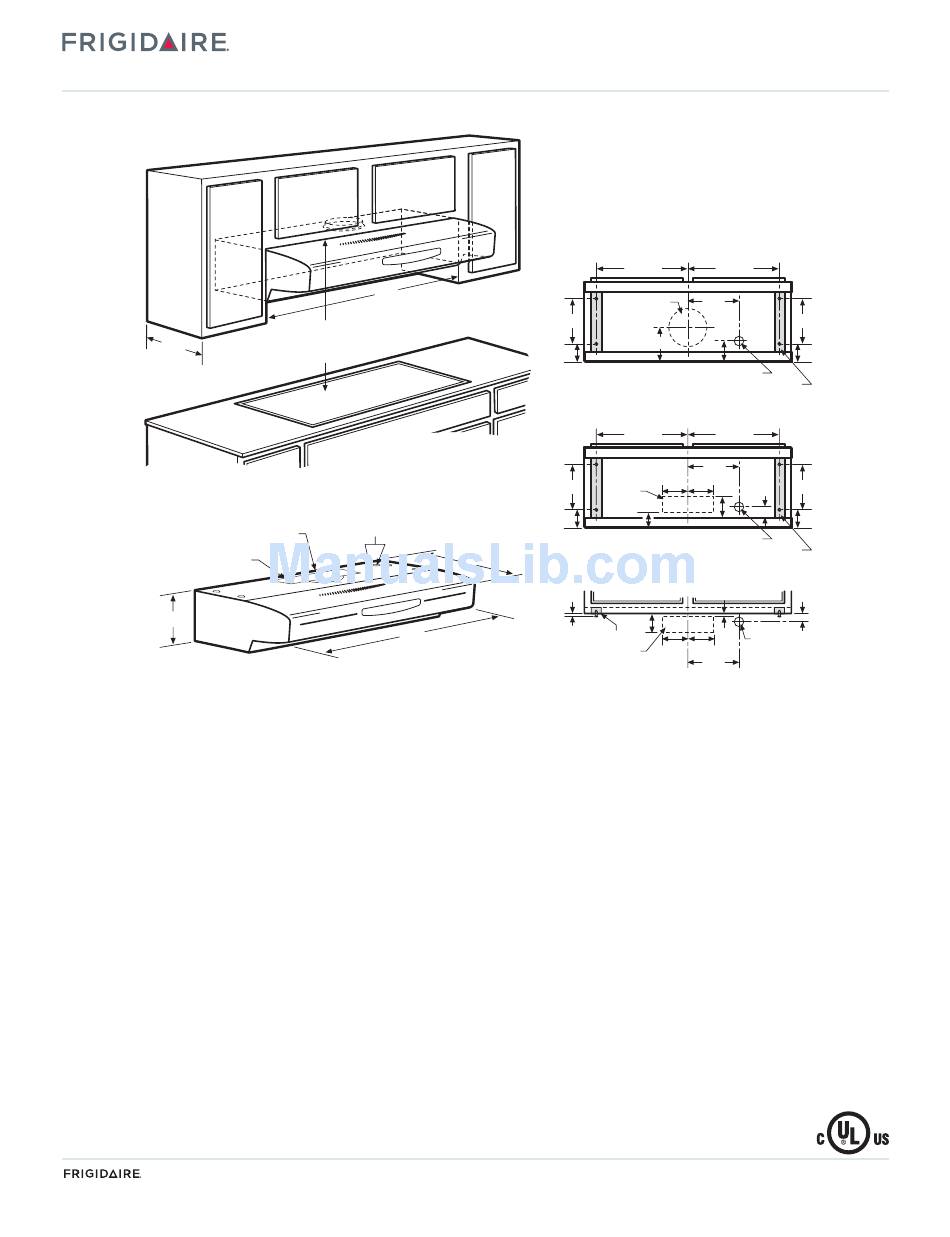

Under-Cabinet Hood Specifications
Product Shipping Weight (Approx.) – 32 Lbs.
•
• Wall-Mount Installation – can be ducted vertically or horizontally.
• Ventilation system is preset to recirculate air inside with no ducting
system required. Exhausting air outside is optional, using either
vertical or horizontal ducting system. (Refer to Ducted Option
Specifications for outside ventilation.)
• Sones Rating – 4.5
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = TBD
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120 Volts = 3.0 Amps
• Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
Connect vent hood with copper wire only.
•
• Minimum installation height allowed from top of hood to cooking
surface is 24" - 30".
• To improve performance, optional Duct-Free Kit recommended for
use with recirculating system.
• Installation on recessed-bottom cabinets requires attachment of two
wood filler strips at each side of recessed area under cabinet.
USA 10200 David Taylor Drive Charlotte, NC 28262
• •
CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4
• •
PL36WC41E 01/11
36"
Minimum 24"-30"
allowed from cooking surface
to top of hood
Top or rear power
supply locations
36 "
1-800-FRIGIDAIRE frigidaire.com
• •
1-800-265-8352 frigidaire.ca
• •
© 2011 Electrolux Home Products, Inc.
Under-Cabinet Hood
Exhaust Options
Vent hood can be vertically or horizontally
ducted outside using round or rectangular duct; or
recirculated inside with no ducting required.
For detailed duct preparation and installation
specifications, refer to installation
instructions on web.
Outside Vertical – 7"Round Duct
16 15
8" dia.cutout
for 7"round
9"
duct
1 / "
1
2
Electrical access hole (in cabinet bottom)
Wood filler strips (recessed cabinet bottoms only)
Outside Vertical – 3
16
15
Vertical
duct
9"
cutout
1
1 / "
1
2
Electrical access hole (in cabinet bottom)
Wood filler strips (recessed cabinet bottoms only)
20"
Outside Horizontal – 3
/ "
3
8
3 /
3
4
Wood filler strips
Horizontal
duct cutout (in wall)
Ducted Option Specifications
• For outside ventilation.
• Exhaust Duct Required – 3-1/4" x 10" (3-1/4" x 10" to 6"-round transition
duct can be used if needed)
• For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
• Use metallic flex ducting only to connect rigid duct directly to
transitions (if allowed by code).
Thermal breaks such as short section of nonmetallic duct, should be
•
used in areas of extreme cold.
Cold weather installations should have additional backdraft damper
•
installed.
• Refer to installation instructions on web for detailed duct preparation and
converting exhaust vent blower system for exterior exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Duct-Free Kit (Single-Pack) – (PN # 5304455850).
• Duct-Free Kit (8-Pack) – (PN # DFKIT368PK).
• Damper Kit (6-Pack) – (PN # DAMPKIT6PK).
• 7"- Round Damper Kit (Single-Pack) – (PN # 5304455851).
PL36WC41E C 36" Wall Mount
Cabinet Bottom
/ " 16 15 / "
16 16
7 / "
1
2
9"
2"
5"
1 / "
1
2
/ " x 10" Rectangular Duct
1
4
Cabinet Bottom
/ " 16 / "
15
16 16
7 1 / "
2
5 / " 5 / "
1 1
4 4 9"
5" 2"
/ "
1
4
1 / "
1
2
/ " x 10" Rectangular Duct
1
4
Cabinet Front
/ "
3
4
"
/ "
1
8
Electrical
5 / " 5 / "
1 1
access hole
4 4
7 / " (in wall)
1
2
Accessories information available
on the web at frigidaire.com
subject to change.
Printed in the U.S.A.
Specifications
