Triumph Adler LP 4030 Advanced Operation Manual

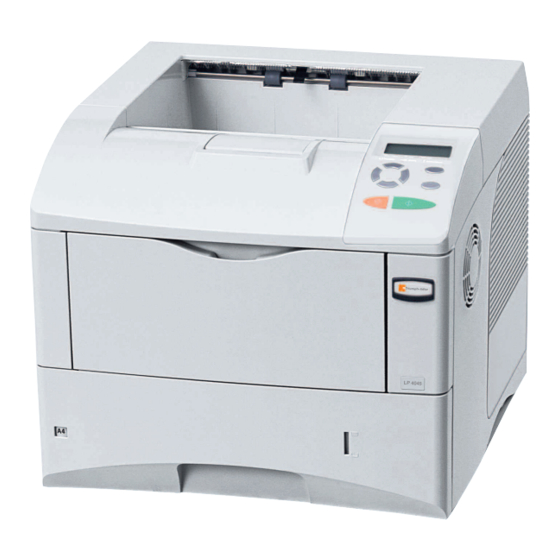

Laser printer b/w
Hide thumbs Also See for LP 4030:
Table of Contents

Advertisement

Quick Links

Instruction Handbook
Advanced
LP 4030 | 4035 | 4045
Laser Printer b/w

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP 4030 and is the answer not in the manual?

Questions and answers

Related Manuals for Triumph Adler LP 4030

Summary of Contents for Triumph Adler LP 4030

  • Page 1 Instruction Handbook Advanced LP 4030 | 4035 | 4045 Laser Printer b/w...

  • Page 3: Table Of Contents

    Contents Handling Paper General Guidelines ............1-2 Selecting the Right Paper .
  • Page 4 Contents ADVANCED OPERATION GUIDE...
  • Page 5 Introduction This guide has the following chapters: • 1 Handling Paper Explains how choose, handle and load paper. • 2 Using the Operation Panel Explains how to use the operation panel to configure the printer. • 3 Options Shows the available options. •...
  • Page 6 Introduction Conventions This manual uses the following conventions Convention Description Example Italic Typeface Used to emphasize a key word, Close the top cover. phrase or message. Refer to Toner Container Replacement on page 3-3. Courier Typeface Used to denote messages or Replace the waste toner box when the names displayed on the Check waste toner box message is...

  • Page 7: Handling Paper

    1 Handling Paper This chapter contains explanations on the following topics: • General Guidelines............1-2 • Selecting the Right Paper..........1-4 • Paper Type ..............1-12 • Loading Paper ............1-13 ADVANCED OPERATION GUIDE...

  • Page 8: General Guidelines

    Handling Paper General Guidelines The machine is designed to print on standard copier paper (the type used in ordinary dry copier machines), but it can also accept a variety of other types of paper within the limits specified below. NOTE: The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used.

  • Page 9: Minimum And Maximum Paper Sizes

    The minimum and maximum paper sizes are as follows. For non standard paper, the MP tray must be used. Paper cassette MP tray Minimum Minimum Paper Size Paper Size 10.5cm (LP 4030:14.8cm) Maximum Maximum Paper Size Paper Size 21.6cm 21.6cm ADVANCED OPERATION GUIDE...

  • Page 10: Selecting The Right Paper

    Handling Paper Selecting the Right Paper This section describes the guidelines for selecting paper. Condition Avoid using paper that is bent at the edges, curled, dirty, torn, embossed, or contaminated with lint, clay, or paper shreds. Use of paper in these conditions can lead to illegible printing and paper jams, and can shorten the life of the machine.

  • Page 11: Basis Weight

    Handling Paper Cassette or MP tray Size Size MP tray Youkei 2 11.4 × 16.2 cm Folio 21 × 33 cm Youkei 4 10.5 × 23.5 cm 16 kai 19.7 cm × 27.3 cm Custom Cassette: 14.8 × 21cm to 21.6 × 35.6cm MP tray: 7 ×...

  • Page 12: Moisture Content

    Handling Paper U. S. Bond Weight (lb) Europe Metric Weight (g/m²) Thickness The paper used with the machine should be neither extremely thick nor extremely thin. If you are having problems with paper jams, multiple feeds, and faint printing, the paper you are using may be too thin. If you are having problems with paper jams and blurred printing the paper may be too thick.

  • Page 13: Special Paper

    Handling Paper Stiffness: Limp paper may buckle in the machine, resulting in paper jams. Curl: Most paper naturally tends to curl one way if left unpacked. When paper passes through the fixing unit, it curls upward a little. To produce flat printouts, load the paper so that the upward pressure from the machine can correct their curling.
  • Page 14 Handling Paper NOTE: Before purchasing any type of special paper, test a sample on the machine and check that printing quality is satisfactory. Transparency Transparencies must be able to withstand the heat of fusing during the printing process. The recommended transparency product is 3M PP2500 (Letter, A4).
  • Page 15 Handling Paper Some label paper is manufactured with an extra margin of top sheet around the edge. Do not remove the extra top sheet from the carrier sheet until after printing is finished. Acceptable Unacceptable Top sheet Carrier sheet The table below lists the specifications for adhesive label paper. Item Specification Weight of top sheet...
  • Page 16 Handling Paper Envelopes Envelopes should be fed in the face-up position, right edge first. Since the composition of an envelope is more complex than that of ordinary paper, it is not always possible to ensure consistent printing quality over the entire envelope surface.
  • Page 17 Handling Paper to withstand the heat of fusing during the printing process, and must not be affected by silicone oil. Do not use paper with any kind of surface treatment, such as the type of paper commonly used for calendars. Recycled paper Select recycled paper that meets the same specifications as the white bond paper except for whiteness, refer to Paper Specifications, on page 1-...

  • Page 18: Paper Type

    Handling Paper Paper Type The printer is capable of printing under the optimum setting for the type of paper being used. Setting the paper type for the paper source from the printer’s operation panel will cause the printer to automatically select the paper source and print in the mode best suited to that type of paper.

  • Page 19: Loading Paper

    MP tray. Loading Paper into the Cassette The paper cassette can accommodate A6 (LP 4030: A5) to A4/Letter and Legal size paper and can hold approximately 500 sheets. Pull the paper cassette all the way out of the printer.
  • Page 20 Handling Paper Turn the paper size dial so that the size of the paper you are going to use appears in the paper size window. Paper Size Dial Paper Size Window NOTE: When the paper size dial is set to OTHER the paper size must be set into the printer on the operation panel.
  • Page 21 Handling Paper If you are going to set paper that is longer than A4, pull out the extension paper cassettes pushing the lock lever one by one and adjust them to the desired paper size. Pull the release lever and slide the paper stopper to the desired paper size. When using non-standard size paper, move the paper guides and paper stopper all the way out, insert the paper, then adjust the paper guides and paper stopper to the size of the paper.
  • Page 22 Handling Paper Push the bottom plate down until it locks (FS-2000D only). Bottom Plate Fan the paper, then tap it on a level surface to avoid media jams or skewed printing. Place the paper in the paper cassette. Ensure the side to be printed is facing down and the paper is not folded, curled, or damaged.
  • Page 23 Handling Paper NOTE: Do not load more paper than will fit under the load limits on the paper guides. Load Limit Load Limit Set the stack of paper so that it is under the clips as shown. Clip Clip Insert the paper cassette into the slot in the printer. Push it straight in as far as it will go.
  • Page 24 Handling Paper There is a paper gauge on the right side of the front of the paper cassette to indicate the remaining paper supply. When paper is exhausted, the pointer will go down to the level of (empty). Paper Gauge Loading Paper into the MP (Multi-Purpose) Tray The MP tray can accommodate the various paper sizes and can hold approximately 100 sheets of paper.
  • Page 25 Handling Paper Pull out the subtray. Adjust the position of the paper guides on the MP tray. Standard paper sizes are marked on the MP tray. For standard paper sizes, slide the paper guides to the position marked correspondingly. Align the paper with the paper guides and insert as far as it will go. Load Limit Load Limit ADVANCED OPERATION GUIDE...
  • Page 26 Handling Paper NOTE: Do not load more paper than will fit under the load limits on the inside of the MP tray. If the paper is considerably curled in one direction, for example, if the paper is already printed on one side, try to roll the paper in the opposite direction to counteract the curl.

  • Page 27: Using The Operation Panel

    2 Using the Operation Panel This chapter contains explanations on the following topics: • General Information............2-2 • Understanding the Operation Panel ......2-3 • Canceling a Printing Job ..........2-10 • Using the Menu Selection System ......2-11 • Status Pages .............. 2-15 •...

  • Page 28: General Information

    Using the Operation Panel General Information This chapter provides the information you need to configure the Ecosys printer. In general you need to use the operation panel only to make default settings. You can make most changes to the printer settings using the printer driver through the application software.

  • Page 29: Understanding The Operation Panel

    Using the Operation Panel Understanding the Operation Panel The operation panel on the top of the printer has a 2-line by 16-character liquid crystal display (LCD), eight keys, and three indicators (LED). LP 4030 Ready Message Display PAR A4 PLAIN...

  • Page 30: Message Display

    Using the Operation Panel Message Display The message display on the operation panel shows: • Status information, the messages listed below which are displayed during normal operation. • Error codes, when the printer requires the operator’s attention; as explained in the Operation Guide. Status Information Message Meaning...

  • Page 31: Indicators In Message Display

    Parallel interface is in use. USB interface is in use. Serial (RS-232C) interface is in use. (option) Network interface is in use. (LP 4030: appears only when the optional network interface card is installed.) Network interface is in use. (option) No interface is in use.
  • Page 32 Cassette: 10.5 × 14.8cm to 21.6 × 35.6cm (FS-2000D: 148 × 210cm to 21.6 × 35.6cm), MP Tray: 7 × 14.8cm to 21.6 × 35.6cm) †. Only with MP tray feeding (LP 4030) ††. Only with MP tray feeding Paper Type Indicator (TYPE) This indicator shows the paper type defined for the current paper casette.
  • Page 33 Using the Operation Panel † Vellum VELLUM Rough paper ROUGH Letterhead LETTERHD Colored paper COLOR Prepunched paper PREPUNCH † Envelope ENVELOPE † Card stock CARDSTOCK † Thick paper THICK High-quality paper for color printing HIGH QLT CUSTOM 1 (to 8) Custom 1 (to 8) †.
  • Page 34 Using the Operation Panel Keys The operation panel keys are used to configure the printer operation. Note that certain keys have a secondary function. NOTE: The printer has a parallel, USB, network, and an optional interface. Configuration of the printer settings affect only the interface that is currently active (shown by the INTERFACE indicator on the message display).
  • Page 35 Using the Operation Panel Cursor Keys The four cursor keys are used in the menu system to access an item or enter numeric values. The arrow key with the question mark ( ) may be pressed when the paper jam message has appeared on the message display. A help message will then appear to facilitate jam clearing in the location.

  • Page 36: Canceling A Printing Job

    Print Cancel? appears on the message display followed by the interface in use. The interface is indicated by one of the following messages: Parallel Network (LP 4030: appears only when the optional network interface card is installed.) Serial (option serial interface) Option (option network interface) Press [OK].

  • Page 37: Using The Menu Selection System

    Using the Operation Panel Using the Menu Selection System Menu Selection System This section explains how to use the menu selection system. [Menu] on the operation panel allows you to use the menu to configure the printer settings to your specific needs. Settings can be made when Ready is indicated on the printer message display.
  • Page 38 Using the Operation Panel > is displayed before the sub-menu. Indicates that this is the sub-menu >Type Adjust > Indicates that there is another sub-menu Press B to move to another sub-menu or A to go back. >> is displayed before the second sub-menu. Indicates that this is the second sub-menu >>Paper Weight Normal 1...

  • Page 39: Menu System Road Map

    Using the Operation Panel Menu System Road Map The menu map is the hierarchy diagram of the menu selection system of the printer. The menu map is useful as a reference to guide yourself through the menu selection system. Printing a Menu Map The printer prints a full list of the menu selection system —...

  • Page 40: Menu Map

    Using the Operation Panel Menu Map Sample LP 3045/4045 Laser Printer MENU MAP 2-14 ADVANCED OPERATION GUIDE...

  • Page 41: Status Pages

    Using the Operation Panel Status Pages This section explains the procedure for printing the status pages. The status page is a list of parameters and settings for most basic printer configurations. You may be required to produce a status page when requesting service to the printer.
  • Page 42 Using the Operation Panel Understanding the Status Page The numbers in the following diagram refer the items explained below the diagram. The items and values on the status page may vary depending on the printer’s firmware version. LP 3045/4045 Laser Printer Test pattern Firmware Version This item shows the version and release date of the printer...
  • Page 43 Using the Operation Panel Sleep time timeout time Formfeed timeout time Memory This item shows: Standard memory in the printer Option memory slot status in kilobytes Total memory in the printer Current status of the RAM disk Page Information This item shows the page related items: Number of copies, from 1 to 999 Total page count Installed Options...
  • Page 44 Using the Operation Panel Consumable Status This item shows the approximate level of remaining toner. When the value is 100, the toner container is full. The closer to 0, the smaller the amount of remaining toner. If you use non-original toner kit, the toner gauge measurement will not be indicated correctly.

  • Page 45: E-Mps

    Using the Operation Panel e-MPS e-MPS is an abbreviation for enhanced-Multiple Printing System which implements the following functions that are available from the printer driver: • Job Retention • Job Storage In either job mode, when printing a document, the print data is transferred from the computer to the printer then stored on the printer’s hard disk.

  • Page 46: Using Quick Copy

    Using the Operation Panel Job Storage Job storage stores print jobs either temporarily or permanently, or in virtual mailboxes, as you click an appropriate radio button on the printer driver when printing from a computer. Virtual Mailbox Virtual mailbox is part of Job Storage, which stores print jobs on the Microdrive without printing.
  • Page 47 Using the Operation Panel Press [OK]. A blinking question mark (?) >Quick Copy appears before the user name. ?Harold Press ? or @ to display the desired user >Quick Copy name, Arlen, in this example. ?Arlen Press [OK]. The job name entered in the >Arlen printer driver (Report, in this example) ?Report...
  • Page 48 Using the Operation Panel Printing Remaining Copies of a Proof and Hold Job Printing a Proof-and-Hold job on the operation panel is similar to printing a quick copy job. Refer to Printing Additional Copies using Quick Copy on page 2-20 Printing a Private Print/Stored Job In private printing, you can specify that a job is not printed until you release the job from the operation panel.
  • Page 49 Using the Operation Panel Press [OK]. The ID input line appears. >Agenda Enter the four-digit access code entered in 0000 the printer driver and press [OK]. To enter the ID, press ? or @ to move the cursor to the number to be changed and then enter the correct number by pressing ? or @.
  • Page 50 Using the Operation Panel Printing a List of Code Jobs If you select Permanent Job Storage on the printer driver, you can print a List of Code Jobs using the operation panel. Press [Menu]. Press ? or @ repeatedly until e-MPS > e-MPS >...
  • Page 51 Using the Operation Panel Press ? or @ repeatedly until >Print >Print VMB Data Data appears. The virtual mailbox Tray001: number will also appear. If you have named the virtual mailbox with >Print VMB Data an alias, the alias (Richard, in this Tray001:Richard example) will follow the number: Press [OK].
  • Page 52 Using the Operation Panel Press [OK] again. The printer prints a list of jobs currently posted in the virtual mailboxes as shown in the following illustration. Changing e-MPS Configuration You can change the following parameters for e-MPS operation: • Maximum number of Quick Copy/Proof-and-Hold jobs •...
  • Page 53 Using the Operation Panel Press ? or @ repeatedly until >>Quick >>Quick Copy Copy appears. Press [OK]. A blinking cursor (_) appears. >>Quick Copy Press ? or @ to increase or decrease the value at the blinking cursor. The value can be set between 0 and 50. Use B and A to move the cursor right and left.
  • Page 54 Using the Operation Panel When the desired size is displayed, press [OK]. Press [Menu]. The display returns to Ready. Maximum Space Assigned to Permanent Code Jobs This changes the Microdrive space that holds permanent code jobs. You can change the maximum space from 0 to 9999 (megabytes). The actual maximum size depends on the size of free Microdrive space.
  • Page 55 Using the Operation Panel Maximum Space Assigned to Virtual Mailboxes (VMB) This changes the Microdrive space for virtual mailboxes. You can change the maximum space from 0 to 9999 (megabytes). The actual maximum size depends on the size of free Microdrive space. The default size is 1/6 of the total Microdrive space, rounded off in units of 50MB.

  • Page 56: Changing The Interface Parameters

    Using the Operation Panel Changing the Interface Parameters This printer is equipped with a parallel interface, a USB interface and a network interface (LP 4035/4045). An optional serial interface and a network interface can be installed. Various printing environment parameters such as the default emulation can be changed independently on different interfaces by using the printer’s menu selection system.

  • Page 57: Changing Serial Interface Parameters

    Using the Operation Panel Press ? or @ to scroll through the following communication modes: • Nibble (high) • Auto • Normal • High speed When the desired communication mode is displayed, press [OK]. Press [Menu] to exit the menu selection. Changing Serial Interface Parameters NOTE: This section applies to the printer having the optional serial...
  • Page 58 Using the Operation Panel Pressing ? or @ toggles through the serial parameters as follows. To change the serial parameter, press [OK]. Use ? or @ to change the value or selection. Range 1200, 2400, 4800, 9600 (Default), >Baud Rate 19200, 38400, 57600, 115200 9600 7 or 8 (Default)

  • Page 59: Changing Network Interface Parameters

    This printer supports TCP/IP, NetWare and AppleTalk protocols. In addition, you can install the optional network interface card in the option interface slot. NOTE: Installing the optional network interface card on the LP 4030 enables the following network settings. Using the operation panel, you can: •...

  • Page 60: Resolving Ip Address

    Using the Operation Panel Press B. One of the following menus is indicated. To change settings for the item, press [OK]. Use ? or @ to change the value or selection. Set this item to On when you connect to a >NetWare >...
  • Page 61 Using the Operation Panel Enter the submenu by pressing B. Each time you press ? or @, the selection changes. >>DHCP >>BOOTP >>IP Address 000.000.000.000 >>Subnet Mask 000.000.000.000 >>Gateway 000.000.000.000 When >>IP Address is displayed, press >>IP Address [OK]. A blinking cursor (_) appears at the 000.000.000.000 last digit.
  • Page 62 Using the Operation Panel Printing a Network Interface Status Page You can have your printer print out a network status page when the printer prints the status page. The network status page shows the network addresses, and other information under various network protocols about the network interface card.
  • Page 63 Using the Operation Panel Press [Menu]. The display returns to Ready. The printer prints a network status page as an example shown in the following illustration. ADVANCED OPERATION GUIDE 2-37...

  • Page 64: Making Default Settings

    Using the Operation Panel Making Default Settings Using the operation panel, you can set the default for the following items. Default Emulation You can change the emulation mode and character code set for the current interface. The printer can automatically change the emulation mode according to the print job that is received from the computer.

  • Page 65: Default Font

    Using the Operation Panel Select KPDL or KPDL (AUTO) using ? or Emulation ?KPDL Press [OK]. Press B. Press ? or @ until >Print KPDL >Print KPDL Errs Errs (errors) appears. Press [OK]. A blinking question mark (?) >Print KPDL Errs appears.
  • Page 66 Using the Operation Panel The letter before the number indicates the location of the font, as shown below: Internal font Soft (downloaded) font Fonts in optional CompactFlash card Fonts in RAM disk or optional Microdrive Fonts in optional ROM (API) Press [OK].
  • Page 67 Using the Operation Panel Press [OK]. Press [Menu]. The display returns to Ready. Changing the Default Font Size You can change the size of the default font. If you selected a proportional font, the character size can also be changed. Press [Menu].
  • Page 68 Using the Operation Panel Character Pitch for Courier/Letter Gothic You can set the character pitch for fixed fonts when the default font is Courier or Letter Gothic. Press [Menu]. Press ? or @ repeatedly until Font > Font > appears. Press B.
  • Page 69 Using the Operation Panel Press ? or @ repeatedly until >Code Set >Code Set appears. IBM PC-8 Press [OK]. A blinking question mark (?) >Code Set appears. ?IBM PC-8 Press ? or @ until the desired character code set appears. Press [OK].
  • Page 70 Using the Operation Panel Samples of Fonts List Internal Scalable and Bitmapped Fonts List PRESCRIBE Font Name Scalable/Bitmap Password Selection [FSET] Font ID Internal Scalable and Bitmapped Fonts List PRESCRIBE Font Name Scalable/Bitmap Password Selection [FSET] Font ID 2-44 ADVANCED OPERATION GUIDE...

  • Page 71: Pagination

    Using the Operation Panel Pagination In Page Set menus, you can set the number of copies, page orientation, and other settings regarding pagination. Number of Copies You can set the number of copies of each page to be printed for the current interface.

  • Page 72: Page Protect Mode

    Using the Operation Panel Press [Menu]. Press ? or @ repeatedly until Page Set > Page Set > appears. Press B. Press ? or @ repeatedly until >Orientation >Orientation appears. Portrait Press [OK]. A blinking question mark (?) >Orientation appears. ? Portrait Select Portrait or Landscape using ? or @.
  • Page 73 Using the Operation Panel Press ? or @ repeatedly until Auto >Page Protect appears. ? Auto Press [OK]. Press [Menu]. The display returns to Ready. Linefeed (LF) Action This procedure instructs the printer what to do when it receives a linefeed code (0AH).

  • Page 74: Wide A4 Pitch

    Using the Operation Panel Carriage-Return (CR) Action This procedure instructs the printer what to do when it receives a carriage- return code (0DH). • CR only: A carriage-return is performed (Default). • CR and LF: A linefeed and carriage return are performed. •...
  • Page 75 Using the Operation Panel Press ? or @ repeatedly until >Wide A4 >Wide A4 appears. Press [OK]. A blinking question mark (?) >Wide A4 appears. ? Off Select On or Off using ? or @. Press [OK]. Press [Menu]. The display returns to Ready. ADVANCED OPERATION GUIDE 2-49...

  • Page 76: Setting Print Quality

    Using the Operation Panel Setting Print Quality In Print Quality menus, you can set the KIR mode, EcoPrint mode, and other settings. KIR Mode This printer incorporates the KIR (Kyocera Image Refinement) smoothing function. KIR users the software to enhance resolution, resulting in high quality printing at resolution of 600 dpi and 300 dpi.

  • Page 77: Ecoprint Mode

    Using the Operation Panel Press [Menu]. Press ? or @ repeatedly until Print Print Quality > Quality > appears. Press B. Press ? or @ repeatedly until >KIR Mode >KIR Mode appears. Press [OK]. A blinking question mark (?) >KIR Mode appears.

  • Page 78: Print Resolution

    Using the Operation Panel Press ? or @ repeatedly until >EcoPrint >EcoPrint Mode Mode appears. Press [OK]. A blinking question mark (?) >EcoPrint Mode appears. ? Off Select On or Off using the ? or @. Press [OK]. Press [Menu]. The display returns to Ready. Print Resolution You can set the default print resolution in four ways: 300dpi, 600dpi, Fast 1200 mode and Fine 1200 mode.
  • Page 79 Using the Operation Panel Press [Menu]. Press ? or @ repeatedly until Print Print Quality > Quality > appears. Press B. Press ? or @ repeatedly until >Print >Print Density Density appears. Press [OK]. A blinking question mark (?) >Resolution appears.

  • Page 80: Operating The Storage Device

    Using the Operation Panel Operating the Storage Device The printer supports four types of storage device; CompactFlash card, Microdrive, USB flash memory, and RAM disk. The CompactFlash card and Microdrive are installed into the dedicated slots of the printer. The RAM disk is an allocated part of the printer’s memory.
  • Page 81 Using the Operation Panel Press [OK]. Processing appears and the >Read Fonts reading of data from the CompactFlash Processing card starts. When completed, Processing disappears. Press [Menu]. The display returns to Ready. Reading Data You can print out the data in the CompactFlash card. Press [Menu].
  • Page 82 Using the Operation Panel Writing Data Data can be written to a CompactFlash card until the card is full. When writing to a CompactFlash card, a name is assigned to the file automatically. You can use the procedure explained in the section Printing a List of Data Names (Partitions) on page 2-59 to print a list of data names for confirmation.
  • Page 83 Using the Operation Panel assigns one after another as follows: DataS001 (first data), DataS002 (second data), DataS003 (third data)... The write information page includes the following items: Item Description Partition Type Type of data written (currently only type 2 is supported). Partition Name The destination name of data written to the CompactFlash card.
  • Page 84 Using the Operation Panel Press B. Press ? or @ repeatedly until >Delete >Delete Data Data appears. The data name also Report appears (Report, in this example). To delete font data, program data, macro data or language data, press ? or @ to display >Delete Font, >Delete Program, >Delete Macro or >Delete Language.
  • Page 85 Using the Operation Panel When the formatting is successfully completed, the printer automatically prints out a format information page, which allows you to check the CompactFlash card for proper formatting. Format information page includes the following items: Item Description Capacity The total size of the CompactFlash card.
  • Page 86 Using the Operation Panel Press [OK]. A question mark (?) appears. >List of Partitions ? Press [OK]. Processing appears and the printing of the list starts. The printout (example above) includes the following information: Item Description Device Name/Number MEMORY CARD/A is indicated for the CompactFlash card.

  • Page 87: Using The Ram Disk

    Using the Operation Panel Using the Microdrive Installing the optional Microdrive into the printer allows you to perform the following operations on the Microdrive. • Reading data • Writing data • Deleting data • Formatting Microdrive • Printing a list of data names (partitions) When an Microdrive is inserted into the printer for the first time, it must be formatted before use.
  • Page 88 Using the Operation Panel The operations of the RAM disk are the same as those of the CompactFlash card. Refer to the relevant sections in Using the CompactFlash Card on page 2-54. When data is written to the RAM disk, the name automatically given to the corresponding file will be DataH001 (for the 1st file), DataH002 (for the 2nd file), DataH003 (for the 3rd file), etc.
  • Page 89 Using the Operation Panel Using USB Flash Memory The USB flash memory is available for only PDF file. PDF files should be stored on the root directory of USB flash memory. The PDF file name can be up to 99 single-byte characters in length. NOTE: The file name which is displayed on the message display can be up to 16 characters.

  • Page 90: Paper Handling

    Using the Operation Panel Paper Handling This section explains how to change mode for the MP tray, the paper size and type for each paper source, and how to select the paper source and paper destinations. MP Tray Mode The MP tray can be used in either of two modes — Cassette or First. The MP tray feed paper differently depending on the mode: •...

  • Page 91: Setting Mp Tray Paper Size

    Using the Operation Panel Setting MP Tray Paper Size When you use the MP tray in cassette mode, you should set the MP tray size to the paper size that is used to format the job to print. If the sizes do not match, printing will not be performed on the correct size paper.

  • Page 92: Setting The Mp Tray Paper Type

    Using the Operation Panel ISO B5 Executive When the desired paper size is displayed, press [OK]. The paper size is set for the MP tray. To exit the menu selection, press [Menu]. Setting the MP Tray Paper Type By setting a paper type (plain, recycled, etc.) for the MP tray, you can select the paper on the MP tray according to the paper type you command on the printer driver.

  • Page 93: Setting The Cassette Paper Size

    Using the Operation Panel High quality Custom 1(to 8) When the desired paper type is displayed, press [OK]. The paper type is set to the MP tray. To exit the menu selection, press [Menu]. Setting the Cassette Paper Size To set the standard sizes A6 (excl. FS-2000D), A5, B5, A4, Letter, and Legal size for the paper cassette, load the paper and turn the paper size dial so that the size of the paper you are going to use appears in the paper size window (refer to Loading Paper on page 1-13).
  • Page 94 Using the Operation Panel Executive Letter Legal When the desired paper size is displayed, press [OK]. The paper size is set for the paper cassette. If you selected Custom in step 6, be sure to set the unit of measurement and the dimensions of the paper as described in the following sections.

  • Page 95: Setting The Cassette Paper Type

    Using the Operation Panel When the unit of measurement is set, press >>X Dimension 216 mm >>X Dimension appears (the paper width setting). Press [OK]. A blinking cursor (_) appears. >>X Dimension 216 mm Press ? or @ to increase or decrease the value of the figure where the cursor is blinking and display the desired width.

  • Page 96: Selecting The Paper Feed Source

    Using the Operation Panel (LP 4035/4045), and Cassette 4 Type (LP 4035/ LP 4045) will appear for the optional paper feeders. Press [OK]. A blinking question mark (?) >Cassette Type appears. ? Plain Press ? or @ to display the desired paper type. The message display toggles through the following paper types: Plain Preprinted...

  • Page 97: Duplex Printing

    Using the Operation Panel the installed optional paper feeders (from the top most paper cassette to the bottom paper cassette): MP tray Cassette 1 Cassette 2 Cassette 3 (LP 4035/4045 only) Cassette 4 (LP 4035/4045 only) When the desired paper source is displayed, press [OK]. To exit the menu selection, press [Menu].
  • Page 98 Using the Operation Panel Depending on the binding type and print orientation, the duplexer provides four types of binding. Portrait, long-edge Portrait, short-edge Landscape, long-edge Landscape, short-edge Press [Menu]. Press ? or @ repeatedly until Paper Paper Handling > Handling > appears. Press @.

  • Page 99: Overriding Difference Between A4 And Letter

    Using the Operation Panel Selecting the Output Stack (LP 4035/4045) The Stack Select menu on the operation panel allows you to select either the face-down tray or the faceup tray option for the output stack. Press [Menu]. Press ? or @ repeatedly until Paper Paper Handling >...

  • Page 100: Creating Custom Paper Type

    Using the Operation Panel To change overriding mode, press [OK]. A >Override A4/LT blinking question mark (?) appears. ? Off Press ? or @ to change Off to On. Press [OK]. The overriding mode is set. To exit the menu selection, press [Menu]. Creating Custom Paper Type The following describes the procedure used to set a user-defined paper type for the printer.
  • Page 101 Using the Operation Panel Rough Letterhead Color Prepunched Envelope Cardstock Thick High quality When the paper type to be customized is displayed, press [OK]. Press B and proceed to Setting the Paper Weight. Setting the Paper Weight You can set the paper thickness for your custom paper type to be customized.

  • Page 102: Resetting The Custom Paper Type

    Using the Operation Panel Press ? or @ repeatedly until >>Duplex >>Duplex path path appears. Enable Press [OK]. A blinking question mark (?) >>Duplex path appears. ? Enable Select Enable or Disable using ? or @. For details of the default setting for each paper type, refer to Paper Availability on page 1-2.

  • Page 103: Reading Life Counters

    Using the Operation Panel Reading Life Counters You can display the total number of pages printed by your printer whenever it is necessary. The total number of printed pages can also be checked on the status page. Refer to Printing a Status Page on page 2-15. Displaying the Total Printed Pages This procedure displays the total number of printed pages.

  • Page 104: Other Modes

    Using the Operation Panel Other Modes The following modes can be accessed in the Others submenu: • Message Language • Automatic Form Feed Timeout Setting • Sleep Timer Setting • Received Data Dumping • Printer Resetting • Resource Setting • Alarm (Buzzer) Setting •...

  • Page 105: Automatic Form Feed Timeout Setting

    Using the Operation Panel Press [OK]. Press [Menu]. The display returns to Ready Automatic Form Feed Timeout Setting If the printer receives no data for a certain period, it will time out and release the current interface. It prints whatever data it has in its buffer and feeds out the page.
  • Page 106 Using the Operation Panel Press ? or @ repeatedly until >Sleep >Sleep Timer > Timer > appears. 015 min. Press B and display >>Auto Sleep. >>Auto Sleep To set the sleep timer, press [OK]. A >>Auto Sleep blinking question mark (?) appears. ? On Press ? or @ to change On to Off.

  • Page 107: Received Data Dump

    Using the Operation Panel Press ? or @ to increase or decrease the value at the blinking cursor and set the desired time. The timer can be set between 5 and 240 min, in 5- minute increments. Use B and A to move the cursor right and left. When the desired timeout time is displayed, press [OK].

  • Page 108: Printer Resetting

    Using the Operation Panel Printer Resetting The procedure described below resets the printer’s temporary conditions, such as the current page orientation, font, etc., set by commands to their default values. Downloaded fonts and macros are deleted from the printer’s memory. Press [Menu].
  • Page 109 Using the Operation Panel By default, resource protection is deactivated. Press [Menu]. Press ? or @ repeatedly until Others > Others > appears. Press B. Press ? or @ repeatedly until >Resource >Resource Prot. Prot. appears. Permanent Press [OK]. A blinking question mark (?) >Resource Prot.

  • Page 110: Auto Error Clear Setting

    Using the Operation Panel Press ? or @ to display the desired alarm. > Error The display changes as shown below. Error Ready Job End Key Confirm. Press [OK]. A blinking question mark (?) > Error appears. ? On Select On or Off using ? or @. Press [OK].
  • Page 111 Using the Operation Panel Press ? or @ repeatedly until Others > Others > appears. Press B. Press ? or @ repeatedly until >Auto >Auto Error > Error Clear > appears. Clear Press [OK]. A blinking question mark (?) >Auto Error appears.

  • Page 112: Duplex Printing Error Detection Setting

    Using the Operation Panel immediately without any time interval. You can use B and A to move the cursor right and left. Display the desired time and press [OK]. Press [Menu]. The display returns to Ready. Duplex Printing Error Detection Setting If the error detection setting for duplex printing has been turned On, and you attempt to print onto a paper size and paper type that cannot be used for duplex printing, the Duplex disabled Press GO error message will...

  • Page 113: Printing The Service Status Page

    Using the Operation Panel Printing the Service Status Page The service status page contains printer settings information that is more detailed than the standard status page and is therefore mostly for service purposes. However, there is a great deal of information on the service status page that may be useful to you.
  • Page 114 Using the Operation Panel 2-88 ADVANCED OPERATION GUIDE...
  • Page 115 3 Options This chapter contains explanations on the following topics: • General Information............3-2 • Expansion Memory Modules ........3-3 • General Description............3-6 • Network Interface Cards ..........3-8 For availability of the options, consult your service technician. ADVANCED OPERATION GUIDE...

  • Page 116: Options

    Faceup Output Tray PT-310 (for LP 4035/4045) (for LP 4035/4045) Printer Network Interface Card (for LP 4030) USB Flash Memory CompactFlash Card/Microdrive Expansion Memory (DIMM 64/128/256/512MB) Paper Feeder PF-310 LP 4030 x 1 LP 4035/LP 4045 x 3 ADVANCED OPERATION GUIDE...

  • Page 117: Options

    You can select additional memory module from 64, 128, 256 or 512MB. The maximum memory size is 640MB (LP 4030, LP 4035: 576MB). NOTE: The expansion memory should only be installed by your service technician.
  • Page 118 Options Remove the screw and open the inner cover. Push out the clamps on both ends of the memory socket. Clamp Clamp Remove the memory module from its package. Aligning the cutouts of the memory module with the matching keys of the socket, carefully plug the memory module into the memory socket until it clicks in place.
  • Page 119 Options Removing a Memory Module To remove a memory module, open the right cover and inner cover, then carefully push out the two socket clamps. Ease the memory module out of the socket to remove. Testing the expanded memory To verify that the memory module is working properly, test it by printing a status page (refer to Printing a Status Page on page 2-15).

  • Page 120: General Description

    Options General Description Microdrive (Hard Disk)/CompactFlash (Memory) Card Insert the Microdrive/CompactFlash card into its slot on the printer. If a Microdrive/CompactFlash card is installed in the printer, received data can be rasterized and stored on this Microdrive/CompactFlash card. This enables high-speed printing of multiple copies using an electric sort function.
  • Page 121 Options The PF-310 paper feeder allows you to add three (LP 4030: one) more paper cassettes to the bottom of the printer for continuous feeding of a large volume of paper. Each paper cassette can hold up to approximately 500 sheets of ISO A4, ISO A5, JIS B5, letter, and legal size (80g/m²) paper.

  • Page 122: Network Interface Cards

    Options Install the faceup output tray on the rear of the printer. UT-110 Network Interface Card Along with the standard for the network interface on the printer, the network interface card supports TCP/IP, IPX/SPX, NetBEUI and AppleTalk protocols, so that the printer can be used on network environments including Windows, Macintosh, UNIX, NetWare, etc.

  • Page 123: Other Options

    Options Other Options PF-315 Bulk Paper Feeder (for LP 4035/4045) Holds approximately 2,000 sheets of 76 to 216 mm × 148 to 305 mm size paper. This bulk paper feeder can be attached to the front of the printer after the MP tray has been removed. EF-310 Envelope Feeder (for LP 4035/4045) Holds more envelopes at a time than the MP tray.
  • Page 124 Options 3-10 ADVANCED OPERATION GUIDE...
  • Page 125 4 Computer Interface This chapter contains explanations on the following topics: • General Information............4-2 • Parallel Interface ............4-3 • USB Interface ............... 4-5 • Serial Interface (Option) ..........4-6 • RS-232C Protocol ............4-7 • RS-232C Cable Connection ........4-10 ADVANCED OPERATION GUIDE...

  • Page 126: Computer Interface

    Computer Interface General Information This chapter explains the signals used in the printer's parallel, USB, and serial (option) interfaces. It also lists pin assignments, signal functions, timings, connector specifications, and voltage levels. This chapter explains the following topics: • Parallel Interface •...

  • Page 127: Parallel Interface

    Computer Interface Parallel Interface Communication Modes The printer provides high-speed data transmission on a parallel interface. You can select the parallel interface communication mode from the operation panel. To change communication mode, refer to Changing Parallel Interface Mode on page 2-30. NOTE: Use a parallel interface cable that complies with the IEEE 1284 standard.
  • Page 128 Computer Interface In or Signal Description † Acknowledge [nAck] This negative-going pulse acknowledges the previous character received. Busy [Busy] When this signal is high, the printer is busy. When it is low, the printer is able to receive more data. ††...

  • Page 129: Usb Interface

    Computer Interface USB Interface This printer supports the Hi-Speed USB. USB (Universal Serial Bus) interface specifications and interface signals are as follows. Specifications Basic specification Complies with the Hi-Speed USB. Connectors Printer: B-type receptacle (female) with upstream port Cable: B-type plug (male) Cable Use a shielded cable that complies with USB 2.0 (Hi-Speed USB) and not longer than 5 meters (16 feet).

  • Page 130: Serial Interface (Option)

    Computer Interface Serial Interface (Option) Installing an optional serial interface board kit in the printer enables connection to a computer with an RS-232C standard serial interface. Interface Signals The table below shows the pins and corresponding input and output signals of the RS-232C interface connector. In or out Signal Description...

  • Page 131: Rs-232C Protocol

    Computer Interface RS-232C Protocol Parameters of the RS-232C Protocol A protocol is a set of rules followed by various devices to send or receive data. The parameters of the RS-232C protocol are stored in the battery- powered memory of the printer. You can verify these parameters on the status printout as marked by the following identifications: •...
  • Page 132 Computer Interface H4: Parity Parameter value Baud rate None Even Ignored The factory setting is 0 (none). H5: Protocol logic Parameter value Baud rate Combination of DTR (positive logic) and XON/ XOFF DTR (positive logic) DTR (negative logic) XON/XOFF ETX/ACK The factory setting is 0.

  • Page 133: Prescribe Frpo D0 Command

    Computer Interface PRESCRIBE FRPO D0 Command The PRESCRIBE FRPO D0 command is provided to allow manipulating XON/XOFF when an error has occurred on the serial interface. The following table summarizes the error status corresponding to different D0 values. Timing of XON transfer to Serial interface error host while Ready or Waiting...

  • Page 134: Rs-232C Cable Connection

    Computer Interface RS-232C Cable Connection Connecting the Printer to the Computer Make sure that both computer and printer are powered off. Discharge static electricity from your body by touching a metal object such as a doorknob. Plug the end (printer side) of the RS-232C cable into the printer’s serial interface connector and screw it on securely.
  • Page 135 Computer Interface System Properties window opens. Click on the Hardware tab, then click on the Device Manager button, and double click on Ports (COM & LPT). Double click on Communications Port. The Communications Port Properties dialog is displayed for the selected COM port.
  • Page 136 Computer Interface System Properties window opens. Click on the Device Manager tab, then double click on Ports (COM & LPT). Double click on Communications Port. The Communications Port Properties dialog is displayed for the selected COM port. Click on the Port Settings tab and set the port properties.

  • Page 137: Glossary

    Glossary Additional memory An additional memory (optional) is used for increasing the memory capacity of this machine. For DIMM that can be used in this machine, contact your service technician. AppleTalk AppleTalk offers file sharing and printer sharing and it also enables you to utilize application software that is on another computer on the same AppleTalk network.
  • Page 138 Glossary KPDL KPDL is Kyocera’s implementation of the PostScript page description language Level3. MP tray This tray is used instead of the cassette when printing on envelopes, postcards, transparency sheets, and labels. NetBEUI (NetBIOS Extended An enhanced version of the NetBIOS protocol, it enables the utilization of User Interface) more advanced functions on small-scale networks than do other protocols such as TCP/IP, etc.
  • Page 139 Index Error log on the status page 2-17 Additional memory Glossary-1 Audible alarm how to set 2-83 Auto-continue Faceup output tray changing recovery time 2-85 Font how to set 2-84 adjusting character pitch for fixed fonts 2-42 changing the default size 2-41 printing lists of fonts 2-43...
  • Page 140 functions 2-20 Network interface a sample of the network status page 2-37 interface cards, diagrammed Keys printing a network status page 2-36 basic operation protocols and parameters 2-33 Cancel resolving the IP address 2-34 Cursor keys Number of copies how to select 2-45 Menu KIR mode...
  • Page 141 changing parallel inteface mode 2-30 Sleep timer signals and definitions setting the timer 2-79 understanding the modes setting timeout time 2-80 Partition Special paper a sample of the partition list 2-60 Specifications printing a list of 2-59 Paper Postcard Status page Preprinted paper 1-10 how to print...
  • Page 142 Index-4 ADVANCED OPERATION GUIDE...
