Installing a Distributed OracleAS Cluster (Identity Management) Configuration

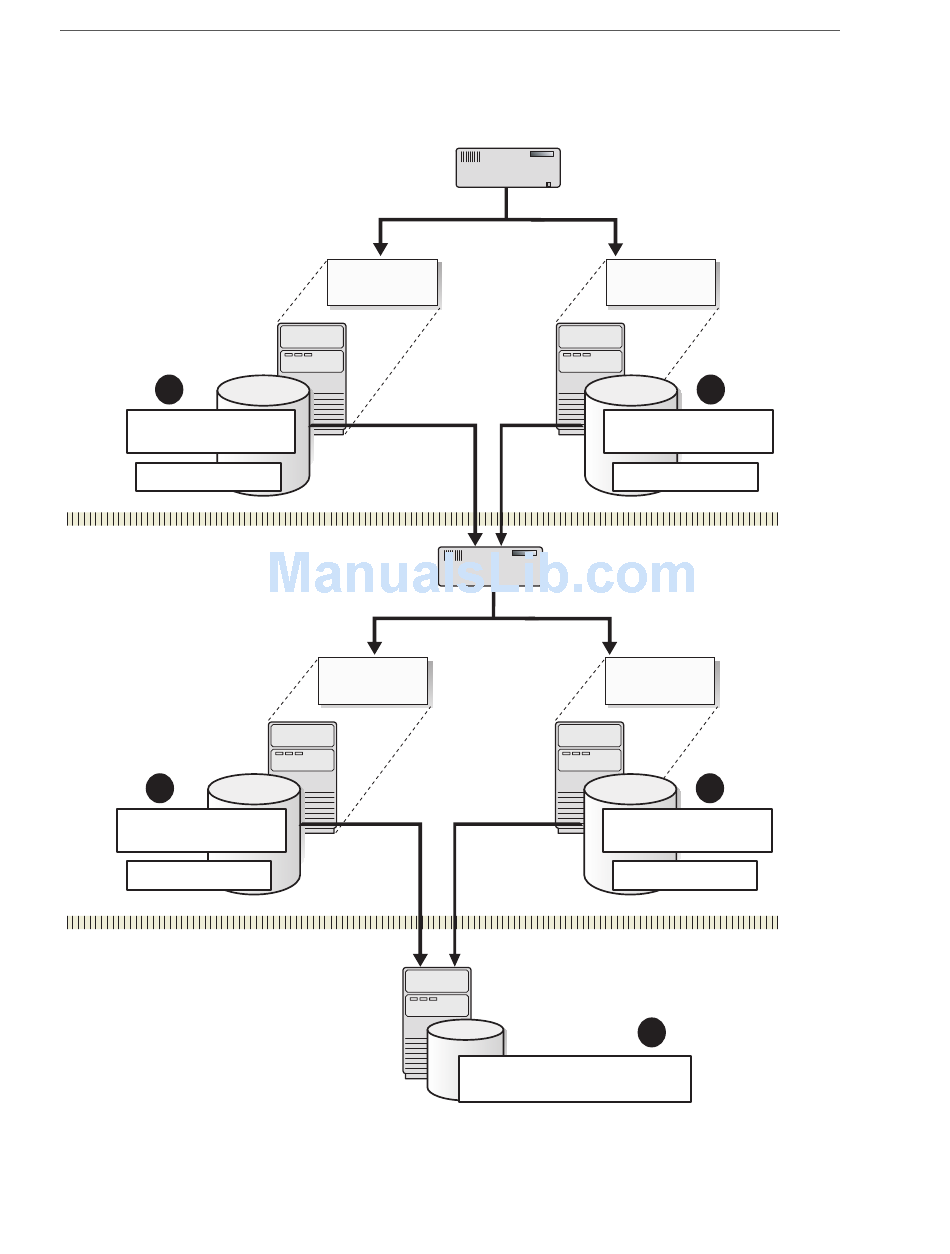

Figure 9–2 Distributed OracleAS Cluster (Identity Management) Configuration
Distributed OracleAS Cluster (Identity Management) Configuration
On this tier, Identity Management includes:
- Oracle Delegated Administration Services
- OracleAS Single Sign-On
4
Oracle Home for
Identity Management
inventory Directory
On this tier, Identity
Management includes:
- Oracle Internet Directory
- Oracle Directory Integration and
Provisioning
2
Oracle Home for
Identity Management
inventory Directory
