Installing Oracle Delegated Administration Services and OracleAS Single Sign-On in an OracleAS Cold Failover Cluster

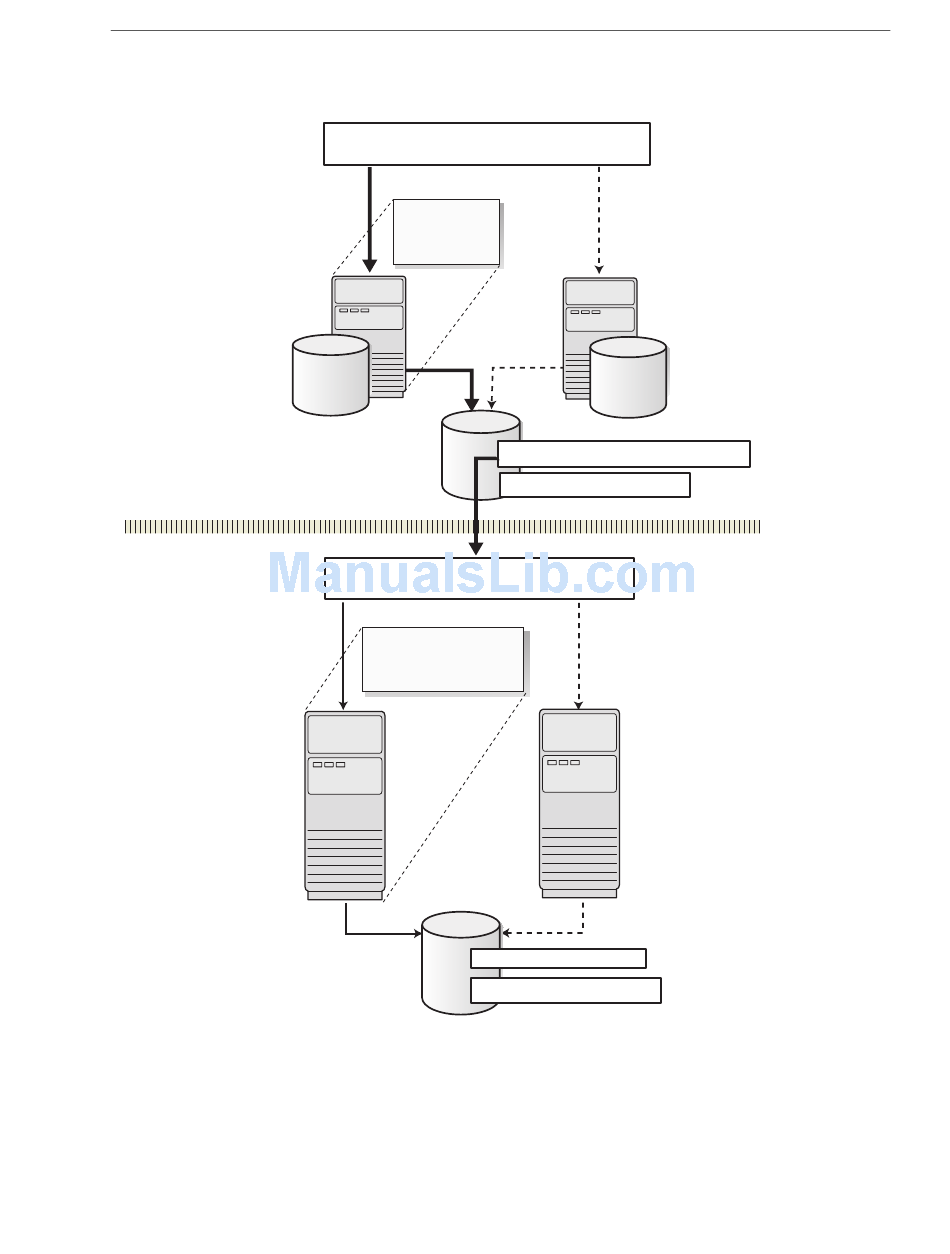

Figure 8–5 Oracle Delegated Administration Services and OracleAS Single Sign-On in a Cold Failover
Cluster
Node 3
(Primary Node, Active)
Physical IP:
123.45.67.222
Node 1
(Primary Node, Active)
Physical IP:
123.45.67.22
Virtual Hostname: vhost_2.mydomain.com
Virtual IP: 123.45.67.111
· DAS
· SSO
on failover
Shared Storage
Virtual Hostname: vhost.mydomain.com
Virtual IP: 123.45.67.11
· Metadata Repository
· OID
· DIP
OracleAS Infrastructure
Shared
oraInventory Directory
Storage
Installing in High Availability Environments: OracleAS Cold Failover Cluster 8-25
on failover
Node 4
(Secondary Node)
Physical IP:
123.45.67.333
Oracle Home for DAS and SSO
oraInventory Directory
on failover
Node 2
(Secondary Node)
Physical IP:
123.45.67.33
on failover
Firewall
