Summary of Contents for Packard Bell EasyNote MT

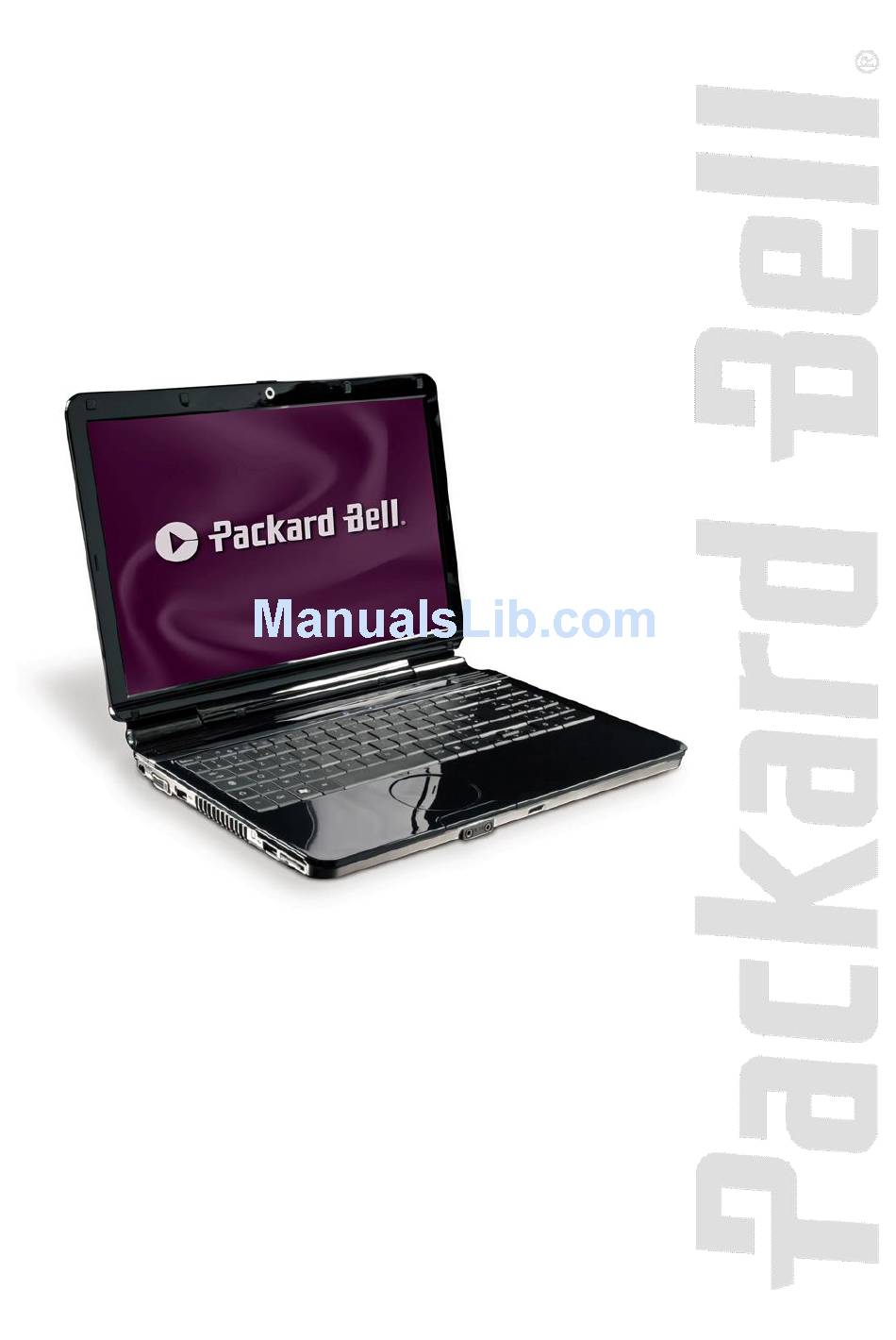

- Page 1 Packard Bell EasyNote MT Disassembly Manual...
-
Page 2: Table Of Contents
I/O and HDMI Board ..........................21 Audio Board............................. 22 Subwoofer..............................22 TV Antenna (Optional) ..........................23 Touchpad..............................23 Button Board............................24 LCD Bezel..............................24 Inverter Board............................25 LCD Panel ............................... 25 Webcam/Microphone..........................26 Notice............................... 27 Packard Bell EasyNote MT Disassembly Manual... -
Page 3: About This Guide
Packard Bell B.V. reserves the right to make changes to the EasyNote MT without notice. For More Information For more information about the Packard Bell EasyNote MT, visit Packard Bell‘s support web site at www.packardbell.com. The support web site also has links to additional Packard Bell documentation and detailed product specifications. -
Page 4: Hazardous Voltage
Always return a Non avviare il sistema senza aver prima defective power supply to the dealer. messo a posto il coperchio. Packard Bell EasyNote MT Disassembly Manual... -
Page 5: Battery
To remove the hard disk drive, first remove the battery (see Battery on page 4) and then perform the following steps: 1. Remove the two screws securing the hard disk drive compartment cover. Fig. 2 Removing hard disk drive compartment cover. Packard Bell EasyNote MT Disassembly Manual... -
Page 6: Memory
Memory To remove the memory installed, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... -
Page 7: Optical Disk Drive
Note: In case two memory modules have been installed, you have to remove the top module first before you can remove the one underneath. Optical Disk Drive To remove the optical disk drive, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... - Page 8 3. Pull the tray and take out the optical disk drive from the drive bay (see Fig. 4. Remove the two screws securing the metal bracket and remove it from the drive. Fig. 8 Removing metal bracket. Packard Bell EasyNote MT Disassembly Manual...
-
Page 9: Keyboard
To remove the keyboard, first remove the battery (see Battery on page 4) and then perform the following steps: 1. Turn the notebook over so the top is facing up and open the LCD completely. Packard Bell EasyNote MT Disassembly Manual... -
Page 10: Keyboard Cover
Fig. 12 Releasing keyboard flat cable. Keyboard Cover To remove the keyboard cover, first remove the battery (see Battery on page 4) and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... -
Page 11: Top Cover
3. Lift the cover diagonally upwards from the front left corner. There are two tabs holding the cover in place on the back and the right. Raise the cover until you can remove it from the casing. Packard Bell EasyNote MT Disassembly Manual... - Page 12 6. Release the white clips securing the touchpad flat cable and the button board flat cable. Fig. 16 Location of touchpad and button board flat cables. 7. Remove the three screws securing the top cover (see Fig. 16). 8. Turn the notebook upside down. Packard Bell EasyNote MT Disassembly Manual...
-
Page 13: Lcd Assembly
1. Disconnect the LCD and webcam cables from the headers on the main board. Fig. 18 Location LCD/webcam cables. 2. Open the LCD into an angle of approximately 90 degree. Packard Bell EasyNote MT Disassembly Manual... -
Page 14: Speakers
1. Remove the screws securing the speakers to the casing. Fig. 20 Location speaker screws. 2. Clear the speaker cables: detach any adhesive tape securing the speaker cables to the main board. Packard Bell EasyNote MT Disassembly Manual... -
Page 15: Bluetooth (Optional)
1. Carefully lift the Bluetooth module from the casing. 2. Disconnect the cable from the Bluetooth module (A). Fig. 22 Location of Bluetooth module. 3. Disconnect the cable (B) from the header on the main board (see Fig. 22). Packard Bell EasyNote MT Disassembly Manual... -
Page 16: Usb Board
12), remove the speakers (see Speakers on page 13), remove the Bluetooth module (see Bluetooth (Optional) on page 14), remove the USB board (see USB Board on page 15), and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... - Page 17 4. Lift the cover upwards from the right. There are three tabs holding the cover in place on the left. Raise the cover until you can remove it from the casing (see Fig. 5. Carefully disconnect the optional TV antenna cable. Packard Bell EasyNote MT Disassembly Manual...
-
Page 18: Cmos Battery
Fig. 28 Location of main board bracket screws. 8. Lift the main board out of the casing. CMOS Battery To remove the CMOS battery, first remove the LCD assembly (see LCD Assembly on page 12), and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... -
Page 19: Wireless Lan Adapter
3. Take out the wireless LAN adapter from the socket. TV Tuner (Optional) To remove the optional TV tuner (mini PCI Express), first remove the main board (see Main Board on page 15), and then perform the following steps: Packard Bell EasyNote MT Disassembly Manual... -
Page 20: Intel Turbo Memory (Optional)
Fig. 31 Location of TV tuner screws. 3. Take out the TV tuner card from the socket. Note: The EasyNote MT can have a TV tuner card installed or the Intel Turbo memory, not both. Intel Turbo Memory (Optional) To remove the optional Intel Turbo Memory module (mini PCI Express), first remove the main... - Page 21 4. Remove the fan/chipset heat sink. 5. Remove the four screws securing the CPU heat sink in designated order. Fig. 33 Location of CPU heat sink screws. 6. Carefully remove the CPU heat sink. Packard Bell EasyNote MT Disassembly Manual...
-
Page 22: I/O And Hdmi Board
2. Disconnect the I/O and HDMI board from the main board. Note: During re-assembly, align the I/O and HDMI board properly with the main board before reconnecting them to prevent damage to the pins of the connector on the main board. Packard Bell EasyNote MT Disassembly Manual... -
Page 23: Audio Board
Subwoofer To remove the subwoofer, first remove the main board (see Main Board on page 15), and then do the following: 1. Remove the three screws securing the subwoofer. Fig. 37 Location subwoofer screws. Packard Bell EasyNote MT Disassembly Manual... -
Page 24: Tv Antenna (Optional)
10), and then do the following: 1. Carefully release the white clip securing the touchpad flat cable and disconnect the cable from the header on the top cover. Fig. 39 Location touchpad cable and screws. Packard Bell EasyNote MT Disassembly Manual... -
Page 25: Button Board
1. Remove the eight screw covers on the LCD bezel (four at the top and four at the bottom). 2. Remove the screws that became accessible after removing the covers. Fig. 41 LCD bezel screws. Packard Bell EasyNote MT Disassembly Manual... -
Page 26: Inverter Board
1. Disconnect the cable on both ends of the inverter board (see Fig. 42). 2. Remove the two screws securing the top bracket and remove the bracket. Fig. 43 Location of bracket screws. Packard Bell EasyNote MT Disassembly Manual... -
Page 27: Webcam/Microphone
1. Disconnect the cable from the header on the module. Fig. 45 Location of webcam connector. 2. Carefully remove any adhesive tape securing the module (see Fig. 45). 3. Extract the webcam/microphone module. Packard Bell EasyNote MT Disassembly Manual... -
Page 28: Notice
The information in this guide is subject to change without notice. This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form or by any means without prior written consent from Packard Bell B.V. B.V.
