Summary of Contents for Packard Bell EasyNote ME

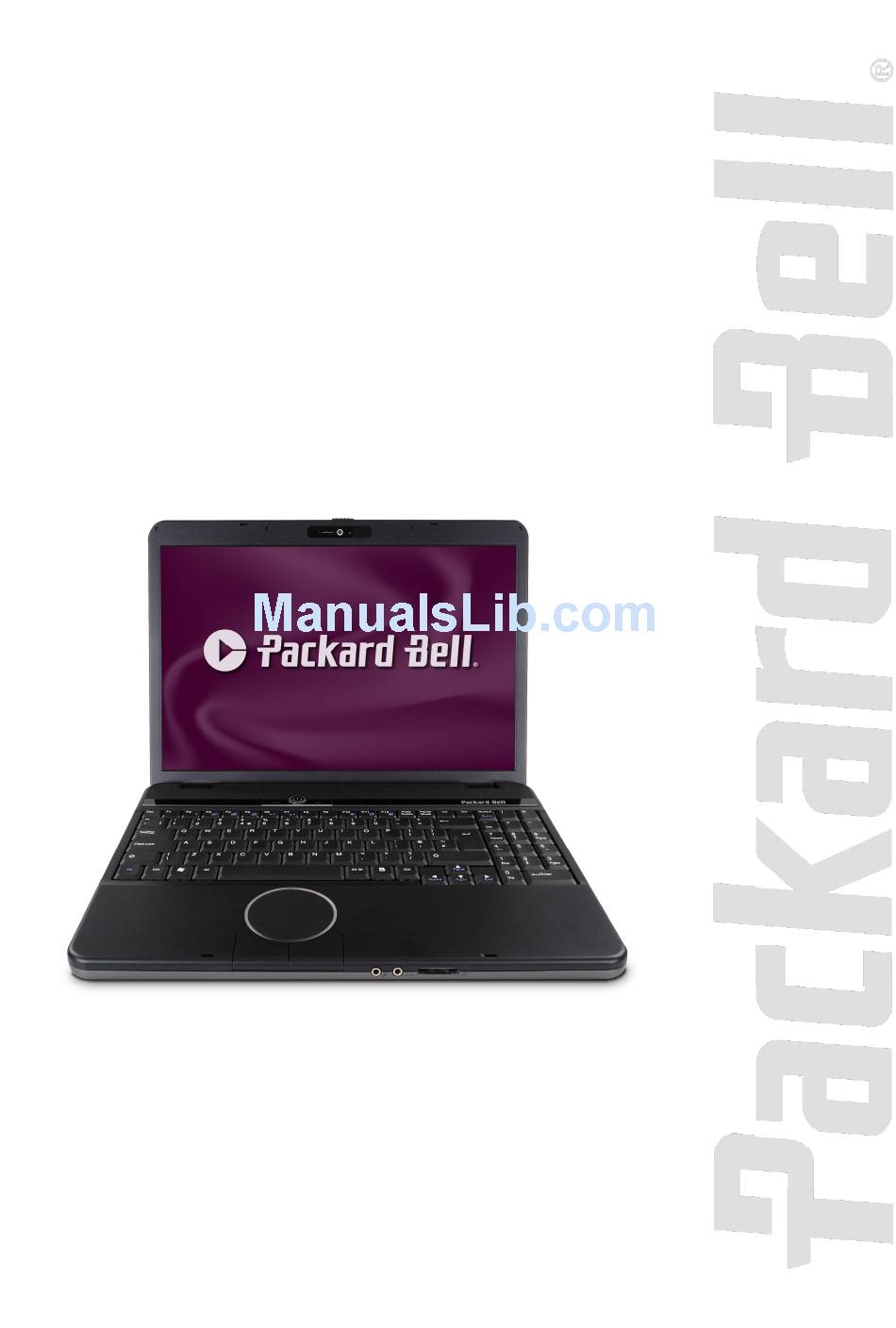

- Page 1 Packard Bell EasyNote ME Disassembly Manual...
-
Page 2: Table Of Contents
Speakers .............................. 16 Modem (Optional) ..........................16 RJ11 Connector (Optional)........................17 USB Board............................18 Main Board ............................19 Inverter Board ............................20 LCD Panel ............................21 Webcam ............................... 22 WLAN Antenna............................. 22 Notice ..............................24 Packard Bell EasyNote ME Disassembly Manual... -
Page 3: About This Guide
Packard Bell B.V. reserves the right to make changes to the EasyNote ME without notice. For More Information For more information about the Packard Bell EasyNote ME, visit Packard Bell‘s support web site at www.packardbell.com. The support web site also has links to additional Packard Bell documentation and detailed specifications. -
Page 4: Hazardous Voltage
Non serious personal injury. Always return a defective avviare il sistema senza aver prima messo a posto il coperchio. power supply to the dealer. Packard Bell EasyNote ME Disassembly Manual... -
Page 5: Battery
To remove the hard disk drive, first remove the battery (see Battery) and then perform the following steps: 1. Remove the screw securing the hard disk drive cover and remove the cover. Fig. 2 Removing hard disk drive cover. Packard Bell EasyNote ME Disassembly Manual... -
Page 6: Memory
4. Remove the 2 screws on the metal bracket to separate it from the hard disk drive. Fig. 4 Location of hard disk drive bracket screws. Memory To remove the memory installed, first remove the battery (see Battery) and then perform the following steps: Packard Bell EasyNote ME Disassembly Manual... -
Page 7: Wireless Lan Adapter
To remove the wireless LAN adapter, first remove the battery (see Battery) and then perform the following steps: 1. Remove the 8 screws securing the wireless LAN compartment cover and remove the cover (see Fig. Packard Bell EasyNote ME Disassembly Manual... -
Page 8: Cpu Fan, Heat Sink And Cpu
To remove the CPU, first remove the battery (see Battery) and then perform the following steps: 1. Remove the 8 screws securing the CPU compartment cover (see Fig. 2. Remove the 2 screws holding the CPU fan. Fig. 8 Location of CPU fan screws. Packard Bell EasyNote ME Disassembly Manual... -
Page 9: Optical Disk Drive
To remove the optical disk drive, first remove the battery (see Battery) and then perform the following steps: 1. Remove the screw securing the optical disk drive. Fig. 11 Removing screw securing optical disk drive. Packard Bell EasyNote ME Disassembly Manual... - Page 10 6. Next release the tray cover on the bottom of the drive. Fig. 14 Releasing tray cover (bottom). 7. Remove the cover and close the tray! Note: When assembling the tray cover, first insert the left side (see Fig. 13) and then the right side. Packard Bell EasyNote ME Disassembly Manual...
-
Page 11: Keyboard
3. Tilt the cover from the left to the right and lift it out. 4. Remove the 4 screws securing the keyboard. Fig. 16 Location of keyboard screws. 5. Tilt the keyboard gently forward (see Fig. 16). Packard Bell EasyNote ME Disassembly Manual... -
Page 12: Button Board
(see steps 1 to 3 in Keyboard), and then perform the following steps: 1. Remove the 2 screws securing the button board Fig. 18 Location button board screws. 2. Lift the button board and turn it around towards you. Packard Bell EasyNote ME Disassembly Manual... -
Page 13: Lcd Assembly
To disassemble the LCD assembly, first remove the keyboard (see Keyboard), disconnect the wireless LAN antenna (see step 1 to 3 in Wireless LAN Adapter), and then perform the following steps: 1. Disconnect the webcam cable. Fig. 20 Disconnecting webcam cable. Packard Bell EasyNote ME Disassembly Manual... - Page 14 2. Disconnect the 2 LCD cable connectors. Fig. 21 Disconnecting LCD cable connectors. 3. Pull the wireless LAN antenna cables through the base and clear them from the clips. Fig. 22 Clearing wireless LAN antenna cables. Packard Bell EasyNote ME Disassembly Manual...
-
Page 15: Top Cover
(see Optical Disk Drive), remove the keyboard (see Keyboard), remove the LCD assembly (see Assembly), and then perform the following steps: 1. Carefully disconnect the speaker cable connector. Fig. 24 Location of speaker connector. Packard Bell EasyNote ME Disassembly Manual... - Page 16 Fig. 26 Location of cover screws. 4. Turn the notebook upside down 5. Remove the 16 screws securing the top cover. Fig. 27 Location of top cover screws. Note: One screw is located inside the hard disk drive compartment. Packard Bell EasyNote ME Disassembly Manual...
-
Page 17: Speakers
Modem (Optional) To remove the optional modem, first remove the top cover (see Cover), and then perform the following steps: 1. Remove the 2 screws securing the modem. Fig. 29 Location of screws securing modem. Packard Bell EasyNote ME Disassembly Manual... -
Page 18: Rj11 Connector (Optional)
1. Clear the modem cable from the tape and clips securing the cable to the bottom cover. Fig. 30 Clearing modem cable. 2. Take out the RJ11 connector bracket and cable. Fig. 31 Location of RJ11 connector bracket. Packard Bell EasyNote ME Disassembly Manual... -
Page 19: Usb Board
1. Remove the 2 screws securing the HDD board. Fig. 32 Location of USB board cable and screw. 2. Disconnect the cable from the USB board (see 32). 3. Lift out the USB board. Packard Bell EasyNote ME Disassembly Manual... -
Page 20: Main Board
4. Remove the tape securing the DC jack cable. 5. Remove the 2 screws marked with a white on the main board. Fig. 34 Location of markings on main board. 6. Lift out the main board and turn it upside down. Packard Bell EasyNote ME Disassembly Manual... -
Page 21: Inverter Board
1. Remove the 4 rubber stoppers on the top of the cover and the 2 covers near the hinges. Fig. 36 Location of LCD cover screws. 2. Removed the 6 screws that became accessible when removing the covers (see Fig. 36). 3. Remove the LCD cover. Packard Bell EasyNote ME Disassembly Manual... -
Page 22: Lcd Panel
2. Remove the screw securing the grounding cable. Fig. 38 Location of screw securing grounding cable. 3. Lift out the LCD panel. 4. Remove the 4 screws on each side of the LCD brackets. Packard Bell EasyNote ME Disassembly Manual... -
Page 23: Webcam
Note: You may have to remove the LCD panel if you need to replace the webcam cable. WLAN Antenna To remove the wireless antenna, first remove the LCD panel (see Panel), and then do the following: Packard Bell EasyNote ME Disassembly Manual... - Page 24 Fig. 41 Location WLAN antenna. 2. Release the antenna from the shielding foil in the LCD housing. Note: You may have to remove the webcam to clear the light-grey cable. Packard Bell EasyNote ME Disassembly Manual...
-
Page 25: Notice
This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form or by any means without prior written consent from Packard Bell B.V. PACKARD BELL B.V. SHALL NOT BE HELD LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN;...
