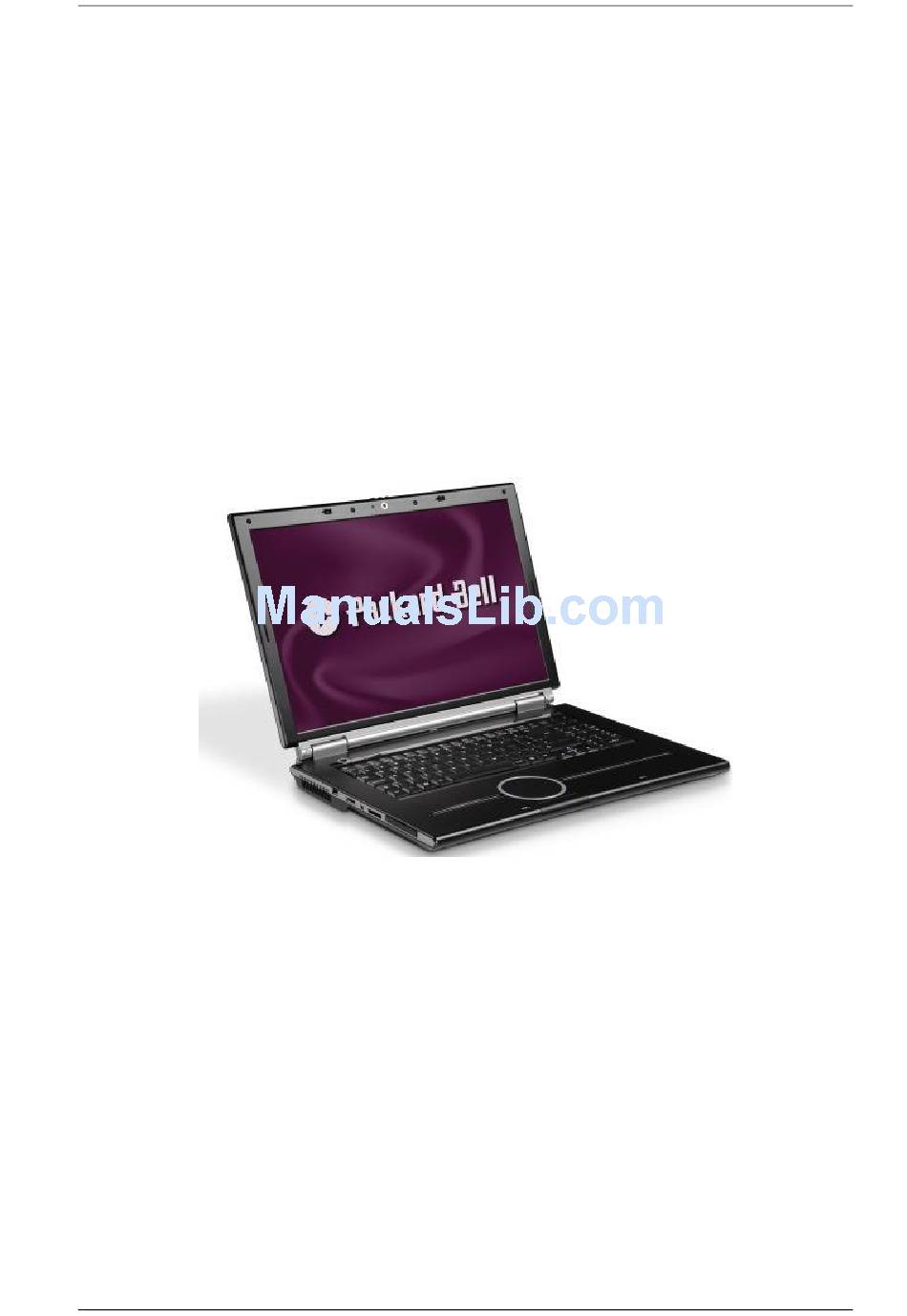

  • Page 1 Packard Bell EasyNote SB Series Disassembly Guide...

  • Page 2: Table Of Contents

    Table of Contents Overview ........................3 Technician Notes......................3 Disassembly Instructions..................3 Reassembly Instructions ..................3 Required Tools ......................3 Battery ........................4 Hard disk ........................4 Optical Drive......................6 Memory Modules ......................8 Wireless LAN card....................9 Intel Turbo Memory Module (optional)..............11 CPU........................11 Keyboard ........................12 LCD Assembly......................13 LCD Panel ......................14 Webcam .........................16 Inverterboard ......................16 Wireless Antenna ....................16...

  • Page 3: Overview

    This document contains step-by-step disassembly instructions for the EasyNote SB series. The instructions are illustrated where necessary with images of the part of the device that is being removed or disassembled. Packard Bell reserves the right to make changes to the EasyNote SB series without notice. Technician Notes Only technicians authorized by Packard Bell B.V.

  • Page 4: Battery

    Battery Push aside the 2 clips securing the battery. Fig. 1 Removing the battery. Pull out the battery Hard disk Remove the battery Remove the screw securing the hard disk cover. Remove the screws securing the main cover. Fig. 2 The bottom of the notebook. Note: the screw does NOT stay attached to the cover.
  • Page 5 Fig. 3 The HDD compartment. Remove the 2 screws of the HDD bracket and take away the bracket. Fig. 4 The HDD and its bracket. Remove the screw on the right hand drive. Pull the right hard disk to the right and lift it out. EasyNote SB Disassembly Manual...

  • Page 6: Optical Drive

    Remove the 2 screws of the HDD bracket and take away the bracket. Fig. 6 The HDD and its bracket. Note: The EasyNote SB series use S-ATA hard disks. S-ATA hard disks have no master/slave settings (so no jumpers needed).
  • Page 7 Fig. 7 The optical drive screws. Use the emergency-eject to open the drive tray. Pull the drive out. Close the tray again. Fig. 8 Removing the optical drive. Remove the 2 brackets from the optical drive (1x 2 and 1x 1 screws). EasyNote SB Disassembly Manual...

  • Page 8: Memory Modules

    Fig. 9 The optical drive brackets. Remove the bezel: push the 2 clips to push the bezel loose Fig. 10 Removing the optical drive bezel. Memory Modules Remove the battery. Remove the screws for the large cover on the bottom of the unit. Fig.

  • Page 9: Wireless Lan Card

    The memory module(s) are located in the left of the compartment. To release the modules, push the metal clips aside. This will release the module. Fig. 12 Removing the memory modules. Lift the memory module out. Note: In case you have 2 memory modules installed, you will need to remove the top memory module before you can remove the module in the bottom memory slot.
  • Page 10 Fig. 13 The bottom base screws. Note: the screws stay attached to the cover. Lift the door out. The Wireless LAN adapter is located to the left side. Remove the two screws securing the card and lift the card up. Fig.

  • Page 11: Intel Turbo Memory Module (Optional)

    TV-Card Remove the battery. Remove the screws of the cover on the bottom base (see Fig 13). Note: the screws stay attached to the cover. Lift the door out. The TV-Card is located to left. Remove the screws securing the card and lift it up.

  • Page 12: Keyboard

    Fig. 16 The heatsink. Lift out the heatsink. Turn the screw in the CPU socket 180 degrees. Lift the CPU out. Note: The socket used on the EasyNote MB65, MB66, MB85 and MB86 resembles the CPU socket used for older Celeron M, Pentium M, Core Duo and Core 2 Duo systems a lot. However, it is not pin-compatible! Only “...

  • Page 13: Lcd Assembly

    Fig. 18 The keyboard flatcable. Lift out the keyboard. LCD Assembly Remove the battery. Disconnect the WLAN antenna as described above. Remove screw ‘ 3’ from the heatsink to loosen the grounding cable. Disconnect the LCD Cable. Fig. 19 The LCD cable. EasyNote SB Disassembly Manual...

  • Page 14: Lcd Panel

    Remove two screws located near the edges on the rear side bottom of the unit. Remove the two screws from the rear side of the unit. Fig. 20 The bottom of the notebook. Remove the 2 hinge covers. You can leverage them loose with a small flathead screwdriver.
  • Page 15 Fig. 21 The LCD panel. Remove the LCD bezel; it is clicked in place. Disconnect both cables from the inverterboard, and the cable connected to the webcam. Lift out the LCD panel. Remove the 6 screws (3 at each side) to remove the LCD brackets. Fig.

  • Page 16: Webcam

    Webcam Remove the LCD Assembly as described above Remove LCD bezel as described above. Disconnect the cable from the webcam. Fig. 23 The webcam. Remove the 2 screws from the webcam module. Lift out the webcam module. Inverterboard Remove the LCD Assembly as described above Remove LCD bezel as described above.

  • Page 17: Top Cover

    Peel the optional 3rd antenna loose; it is glued to the metallic foil. Fig. 25 The LCD back panel. Release the antenna from the metallic foil. Top Cover Remove the battery, hard disk, optical drive, memory modules, Wireless LAN, TV-Card or Intel Turbo Memory, CPU, keyboard and LCD Assembly as described above.

  • Page 18: Mainboard

    Remove the 2 screws from the top cover. Fig. 27 The keyboard area. Disconnect the three cables accessible from the top cover. Remove the top cover. Mainboard Remove the top cover, as described above. Remove the 2 hex-bolts adjacent to the DVI-I Connector. Disconnect all cables from the mainboard.

  • Page 19: Bluetooth Module

    Remove the 6 screws marked with a screw-sign on the mainboard. Fig. 29 The screw-sign icon. Bluetooth Module Remove the top cover as described above. Disconnect the Bluetooth cable from the Bluetooth module. Fig. 30 The Bluetooth cable. Take out the Bluetooth module; it is glued in place. USB and Audio board Remove the top cover as described above.

  • Page 20: Dc Jack

    Fig. 31 The audio board. DC Jack Remove the top cover as described above. Disconnect the DC jack connector from the mainboard. EasyNote SB Disassembly Manual...

  • Page 21: Modem Connector

    Fig. 32 The DC jack connector. Remove the metal shield covering the DC Jack and modem connector. Fig. 33 The small metal shield. Lift the DC Jack from its bracket. Modem Connector Remove the mainboard as described as above. Remove the metal shield covering the DC Jack and modem connector. Lift the modem connector from its bracket.

  • Page 22: Speakers And Subwoofer

    Speakers and Subwoofer The speakers and subwoofer are shipped as part of the bottom base and do not require further disassembly. Button and LED Board and Touchpad The button/LED board and touchpad are shipped as part of the top cover and do not require further disassembly.

  • Page 23: Reassembly Notes

    Packard Bell B.V. PACKARD BELL B.V. SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
