INSTALLATION INSTRUCTIONS
HINGED PATIO DOOR - SOUTHWESTERN WALL WITH HARD COAT STUCCO
Installation Instructions for Typical Wood Frame Construction.
These instructions were developed and tested for use with typical wood frame wall construction in a wall system designed to manage water.
These instructions are not to be used with any other construction method. Installation instructions for use with other construction methods,
multiple units or bow and bay windows, may be obtained from Pella
building materials, and site conditions unique to your project may require an installation method different from these instructions and additional
care. Determining the appropriate installation method is the responsibility of you, your architect, or construction professional.

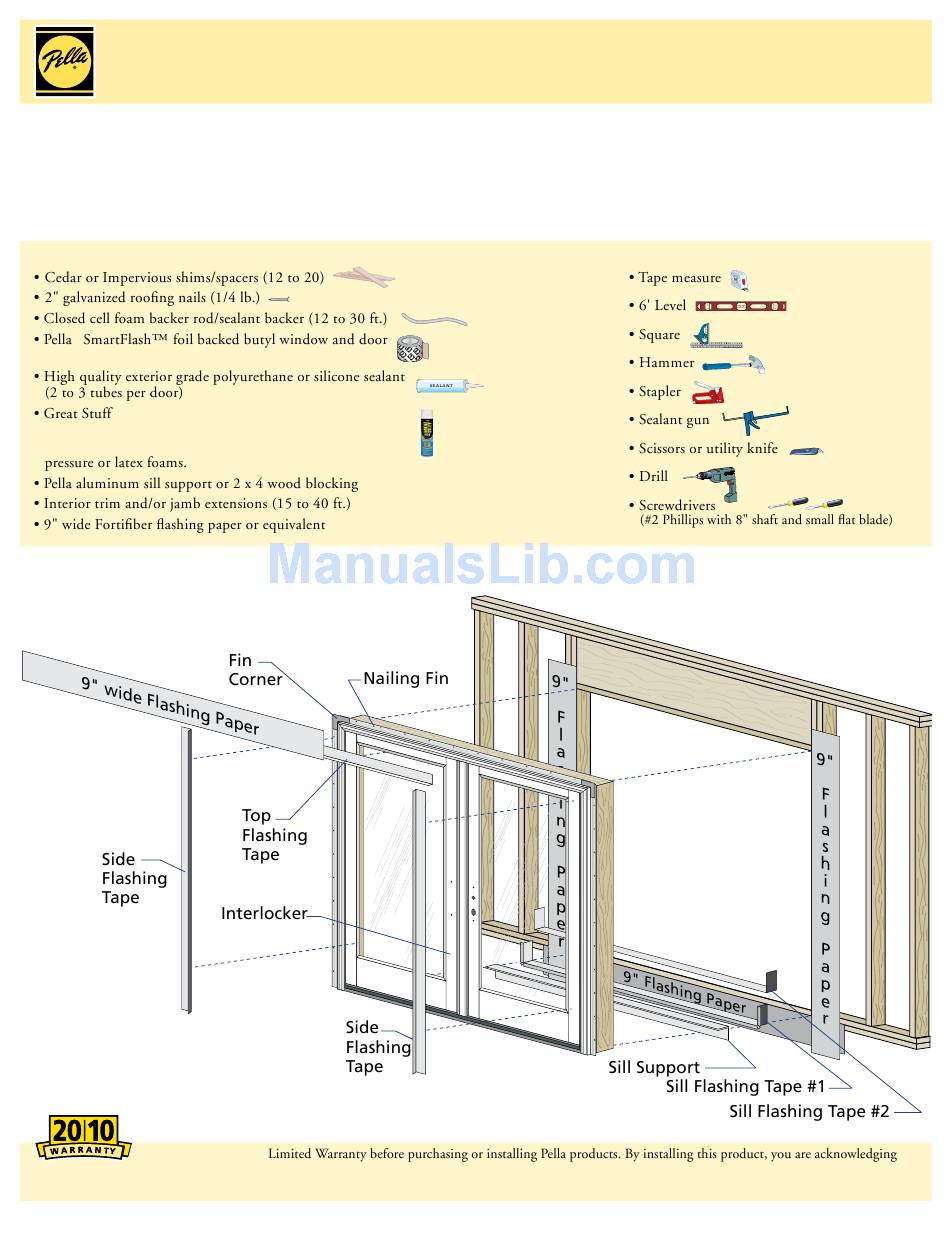

YOU WILL NEED TO SUPPLY:
®
flashing tape or equivalent
™
Window and Door Insulating Foam Sealant
by the Dow Chemical Company or equivalent low pressure
polyurethane window and door foam - DO NOT use high
REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.
Always read the Pella
that this Limited Warranty is part of the terms of the sale. Failure to comply with all Pella installation and maintenance instructions may void your Pella product
warranty. See Limited Warranty for complete details at http://warranty.pella.com.
®
®
Corporation or a local Pella retailer. Building designs, construction methods,
TOOLS REQUIRED:
Part Number: 80KM0103
