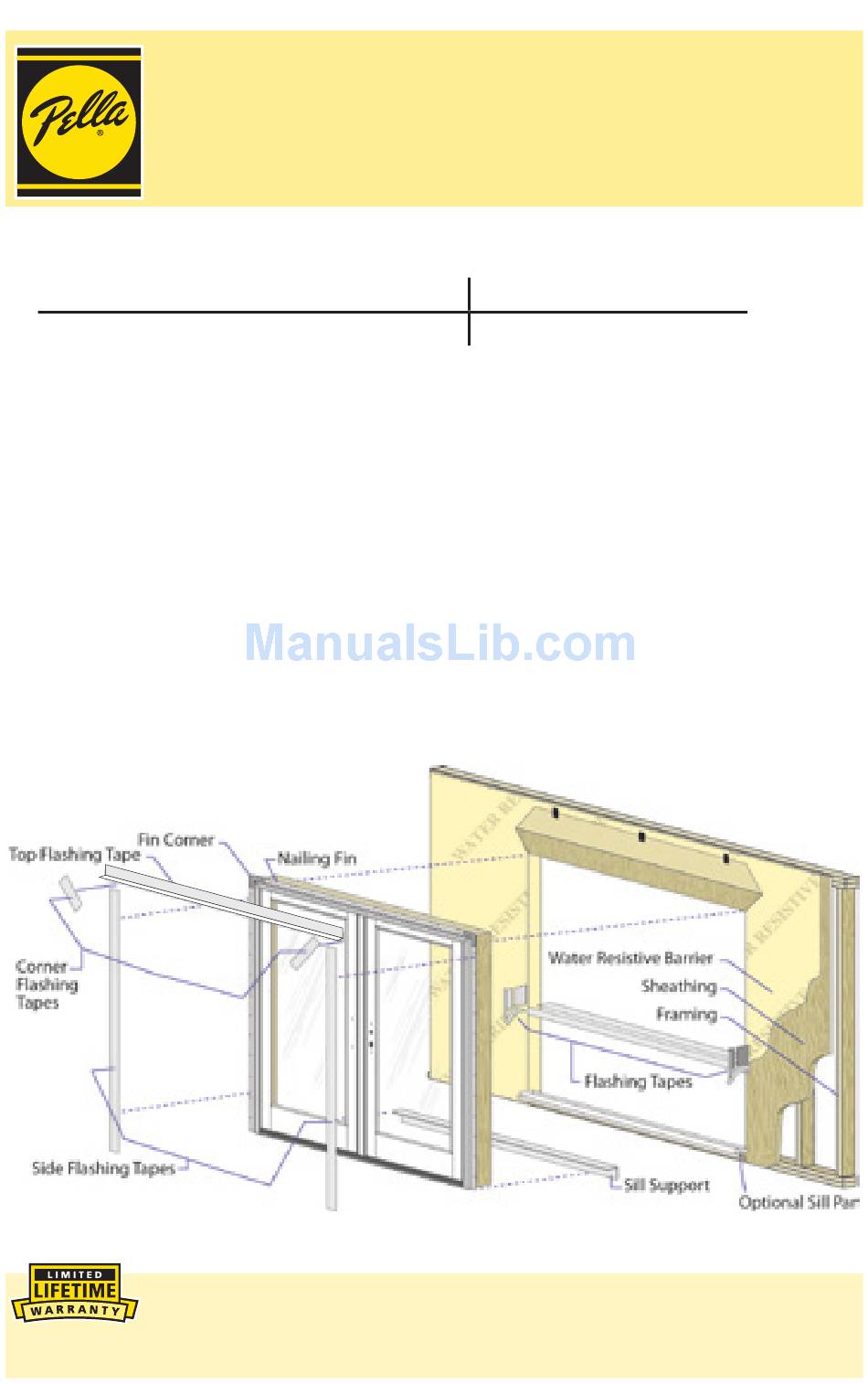

INSTALLATION INSTRUCTION -
NAIL FIN INSTALLATION AFTER WEATHER BARRIER AND
FRAME SCREW OR CLIP INSTALLATION FOR REPLACEMENT
ALUMINUM-CLAD EXTERIOR HINGED PATIO DOORS (PELLA® PROLINE AND DESIGNER SERIES®)
ALUMINUM-CLAD EXTERIOR ENTRY DOORS (PELLA® AND ARCHITECT SERIES®)
Please read thoroughly and understand completely all the steps in this instruction prior to
beginning installation.
Replacement Installation Without Nail Fin follow steps 1, 2, 3, 5, 6, 7
Important Safety Information:
These instructions were developed and tested for use with typical wood frame wall construction
in a wall system designed to manage water. These instructions are not to be used with any
other construction method. Installation instructions for use with other construction methods,
multiple units or bow and bay windows, may be obtained from Pella Corporation, a local Pella
retailer or by visiting http://www.pella.com. Building designs, construction methods, building
materials, and site conditions unique to your project may require an installation method
different from these instructions and additional care. Determining the appropriate installation
method is the responsibility of you, your architect or construction professional.
REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.
Always read the Pella
products. By installing this product, you are acknowledging that this Limited
Warranty is part of the terms of the sale. Failure to comply with all Pella installation
and maintenance instructions may void your Pella product warranty. See Limited Warranty for
complete details at http://warranty.pella.com.
Installation with Nail Fin follow steps 1, 2, 3, 4, 6, 7
®
Limited Warranty before purchasing or installing Pella
Part Number: 81AK0101
