Please read thoroughly and understand completely all the steps in this instruction prior to

beginning installation.

Replacement Installation Without Nail Fin follow steps 1, 2, 3, 5, 6, 7

com

REMEMBER TO USE APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT.

Note: This instruction is intended for walls with or without sheathing. Illustrations show wall

without sheathing.

Installation with Nail Fin follow steps 1, 2, 3, 4, 6, 7

http://warranty.pella.com.

Part Number: 81DU0100

http://www.pella.

Need help?

Do you have a question about the 81DU0100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pella 81DU0100

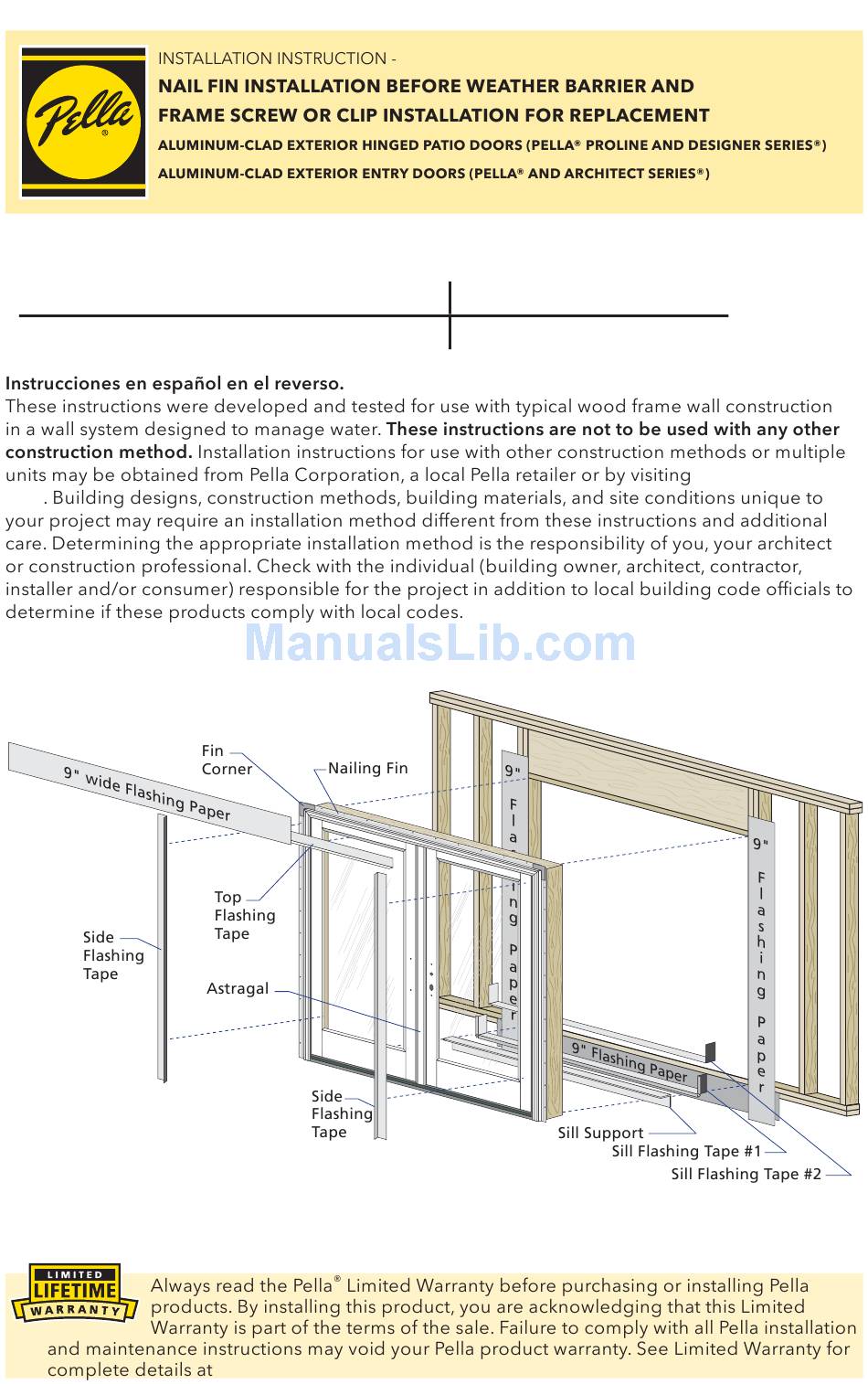

Page 1 © 2011 Pella Corporation Part Number: 81DU0100 Please read thoroughly and understand completely all the steps in this instruction prior to beginning installation. Installation with Nail Fin follow steps 1, 2, 3, 4, 6, 7 Replacement Installation Without Nail Fin follow steps 1, 2, 3, 5, 6, 7 http://www.pella.
Page 2 Note: It is critical the bottom is level.
Page 3 In t e r io r Note: 1-1/2" or more of solid wood blocking is required around the perimeter of the opening. Fix any problems with the rough opening before proceeding. Note: Sill ﬂashing paper is not required for installation on concrete ﬂoors.
Page 4 Note: The 2" added onto the rough opening width is for a 1" bend on each end. Note: These cuts will allow the edges of the sill pan to be bent. Note: 4-5/8" wide for Out-Swing and In-Swing for 4-9/16" wall condition. For other wall conditions, measure wall depth and add 1/16".
Page 5 Note: The purpose of this tape is to seal the sill screws when installing the door. I N T E R I O R S I L L P A N L I P E X T E R I O R S I L L P A N L I 1 "...
Page 6 1/2" 1 s t B e a d 6” 2 n d B e a d 6" L e a v e a 2 " b r e a k in c e n t e r o f I N T E R I O p a n R S I L L P A N L I P...
Page 7 In te ri o r Note: If dimensions are not equal, check to make sure the ﬁns are folded out to 90° at all points. Note: Make sure the ﬁn corner is lying as ﬂat as possible Note: Be sure to remove the spacers from the bottom edge of the door panel.
Page 8 I n t e r i o Note: For doors with pre-drilled installation holes in the head. If installation holes are present, drill 1/8" diameter pilot hole into the rough opening and install a #8 x 3" corrosion resistant screw (provided) in each hole. In te ri o r Note: If there are any problems with the operation, check to conﬁrm the door frame is installed plumb, level and square.
Page 9 Note: This step does not apply to center latching double doors. Head ~ 8” Pull back weatherstrip to expose strike hole. Flashing Tape Note: The ﬂashing tape must be applied approximately 1/2" onto the frame cladding at the jambs and head. Pre-folding the tape at 1/2" before removing the paper backing will make it easier to apply the tape correctly.
Page 10 As required by local code (such as Florida product approval system), additional anchors may be required. Install them at this time. Note: Pella Recommends and some codes require the use of a head drip ﬂashing. If there is a functioning, existing ﬂashing, proceed to step 5D.
Page 11 HEAD JAMBS ONLY CAUTION: The cut ﬁn may have sharp edges! PRESS SEALANT INTO OPENING For Sill Preparation see steps 1E - 1T. See steps 3A - 3F only for Setting the Door.
Page 12 ALTERNATE ANCHORING METHODS, CLIP AND SCREW PLACEMENT: 6" 6"...
Page 13 Note: If installing with installation clips, proceed to step P. Note: Out-Swing Doors Only - If choosing to locate clearance holes through the frame to be concealed by door panel; remove frame weatherstrip and drill holes under the weatherstrip. Note: DO NOT shim above the door. For masonry openings use two masonry screws that are a minimum size of 3/16"...
Page 14 Caution: Ensure use of low pressure polyurethane window and door insulating foams and strictly follow the foam manufacturer’s recommendations for application. Use of high pressure foams or improper application of the foam may cause the door frame to bow and hinder operation. In te ri o r 6 "...
Page 15 When applying siding, brick veneer or other exterior ﬁnish material, leave adequate space between the door frame and the material for sealant. Refer to the illustration corresponding to your ﬁnish material. Note: The sealant details shown are standard recommendations from the sealant industry. Contact your sealant supplier for recommendations and instructions for these and any other applications.
Page 16 Note: Backer rod adds shape and depth for the sealant line.
