Sharp R-85ST Operation Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. Microwave Oven
  5. R-85ST
  6. Operation manual

Sharp R-85ST Operation Manual

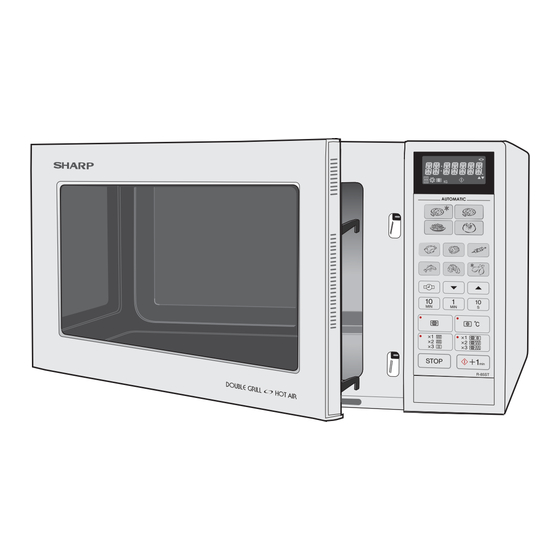

Microwave oven with top & bottom grills and convection
Hide thumbs
Table of Contents

Advertisement

Quick Links

R-85ST English
20/01/2005
16:32

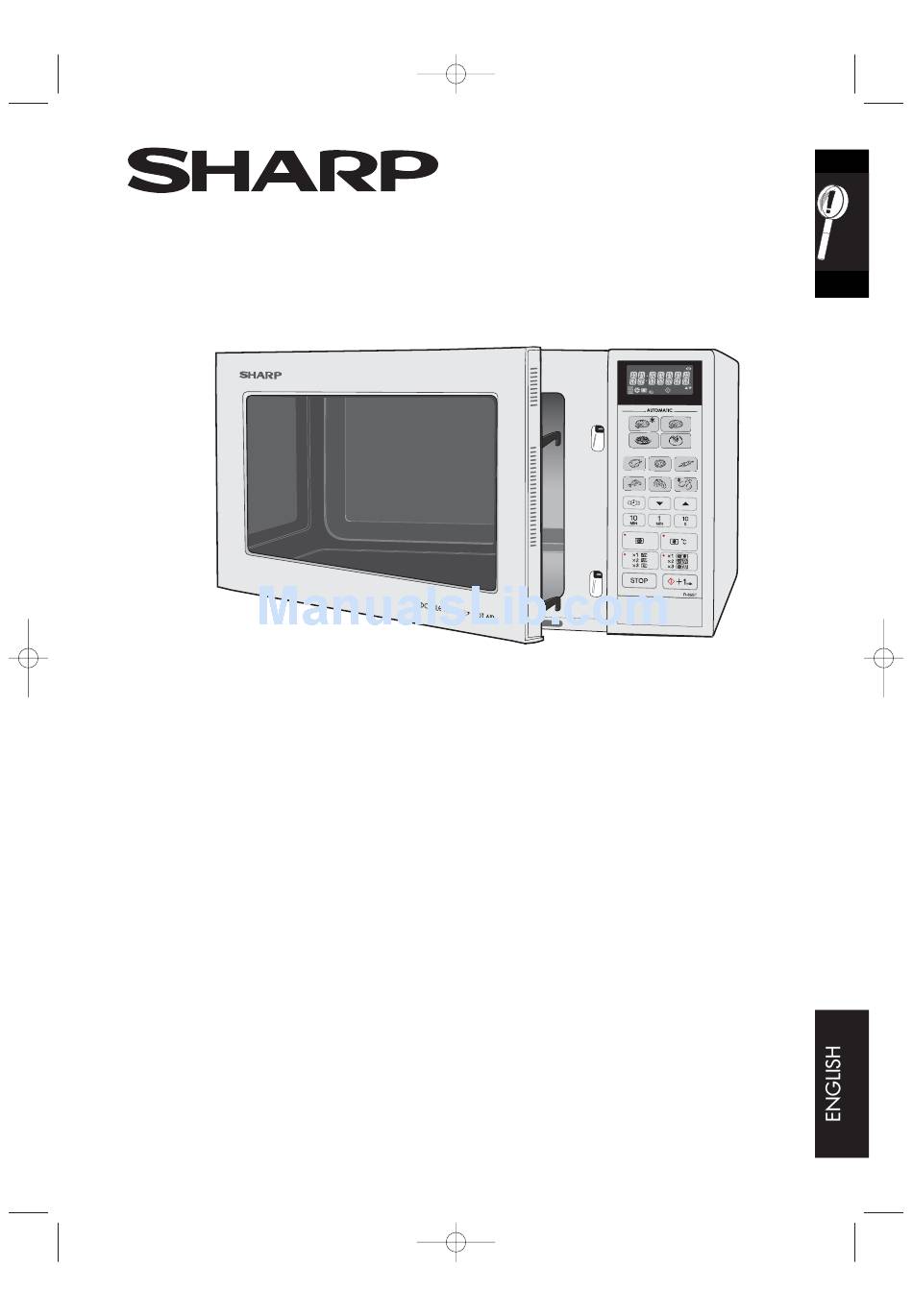

Page A
Important
R-85ST
MICROWAVE OVEN WITH TOP & BOTTOM
GRILLS AND CONVECTION
OPERATION MANUAL
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven
is modified so that it operates with the door open.
900 W (IEC 60705)
