Sharp R-852 Operation Manual

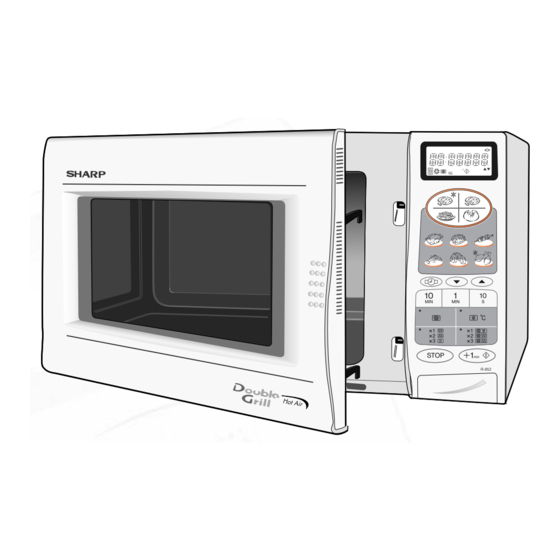

900 w microwave oven with top & bottom grills and convection
Hide thumbs Also See for R-852:
Table of Contents

Advertisement

Quick Links

R-852 ENGLISH
5/5/99 2:04 pm
Page 1
Important
R-852
R-852
MICROWAVE OVEN WITH TOP & BOTTOM
GRILLS AND CONVECTION
OPERATION MANUAL
900 W (IEC 705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-852

Summary of Contents for Sharp R-852

  • Page 1 R-852 ENGLISH 5/5/99 2:04 pm Page 1 Important R-852 R-852 MICROWAVE OVEN WITH TOP & BOTTOM GRILLS AND CONVECTION OPERATION MANUAL 900 W (IEC 705)
  • Page 2 R-852 ENGLISH 5/5/99 2:04 pm Page 2...

  • Page 3: Table Of Contents

    R-852 ENGLISH 5/5/99 2:04 pm Page 1 CONTENTS OVEN AND ACCESSORIES ..........2 CONTROL PANEL .

  • Page 4: Oven And Accessories

    Defrost) modes. Always use thick oven gloves when removing the food or turntable from the oven to prevent burns. NOTE: When you order accessories, please mention the following two items: Part name and model name to your dealer or SHARP authorised service agent.

  • Page 5: Control Panel

    R-852 ENGLISH 5/5/99 2:04 pm Page 3 CONTROL PANEL Digital display and indicators: 1. TOP GRILL indicator 2. BOTTOM GRILL indicator 3. CONVECTION indicator 4. MICROWAVE indicator 5. WEIGHT (kg) indicator 6. COOKING IN PROGRESS indicator 7. LESS/MORE indicators 8. CLOCK SET indicator Operating keys: 9.

  • Page 6: Important Safety Instructions

    WARNING: kitchen cabinet, the installation frame EBR-4700 Do not operate the oven if it is damaged or (W) licensed by SHARP must be used. This is malfunctioning. Check the following before use: available from your dealer. Refer to the frame a)The door;...
  • Page 7 SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP Temperature of the container is not a true service agent.

  • Page 8: Installation

    R-852 ENGLISH 5/5/99 2:05 pm Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves NOTE: and may cause electrical arcing. Do not put cans If you are unsure how to connect your oven, please in the oven.

  • Page 9: Before Operation

    R-852 ENGLISH 5/5/99 2:05 pm Page 7 BEFORE OPERATION Your oven has an energy save mode. Plug in the oven. Nothing will appear on the display at this time. 1. Open the door. The oven display will show “ENERGY SAVE MODE”.

  • Page 10: Setting The Clock

    R-852 ENGLISH 5/5/99 2:05 pm Page 8 SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. Step 1. Step 2. 1. To set the 12 hour clock, press the CLOCK SETTING key once, as in Step 1 opposite.

  • Page 11: Microwave Cooking

    R-852 ENGLISH 5/5/99 2:05 pm Page 9 MICROWAVE COOKING Your oven can be programmed for up to 99.90 minutes. (99.90). Example: Suppose you want to heat soup for 2 minutes and 30 seconds on 630 W microwave power. 1. Set the time: 2.

  • Page 12: Grill Cooking

    R-852 ENGLISH 5/5/99 2:05 pm Page 10 GRILL COOKING Your oven has 2 grill heating elements, and a combination of 3 grill cooking modes. Input the time first then select the desired grill mode by pressing the GRILL MODE key as indicated below.

  • Page 13: Convection Cooking

    R-852 ENGLISH 5/5/99 2:05 pm Page 11 CONVECTION COOKING This microwave oven has 10 pre-set oven temperatures which use a combination of the top and bottom grills. Press CONVECTION key Oven Temp (° C) Example 1: To cook with preheating Suppose you want to pre-heat to 180 o C and cook for 20 minutes at 180 o C.

  • Page 14: Convection Cooking

    R-852 ENGLISH 5/5/99 2:05 pm Page 12 CONVECTION COOKING Example 2: To cook without preheating Suppose you want to cook at 250 o C for 20 minutes. 3. Press the 2. Select the desired cooking 1. Enter the desired cooking time temperature.

  • Page 15: Dual Cooking

    R-852 ENGLISH 5/5/99 2:05 pm Page 13 DUAL COOKING Your oven has 3 DUAL cooking modes combining the heat of the grill(s) with the power of the microwave. To select the DUAL cooking mode, press the DUAL MODE key until the desired setting appears in the display.

  • Page 16: Other Convenient Functions

    R-852 ENGLISH 5/5/99 2:05 pm Page 14 DUAL COOKING Example 2: Suppose you want to cook for 20 minutes on DUAL 2, using 90 W microwave power and TOP GRILL. Check the display 1. Enter the 2. Press DUAL 4. Start cooking.
  • Page 17 R-852 ENGLISH 5/5/99 2:05 pm Page 15 OTHER CONVENIENT FUNCTIONS STAGE 3 6. Enter the desired 8. Start to cook by Check the display 7. Select TOP GRILL by pressing the +1 cooking time (20 pressing the GRILL /START minutes) by pressing the MODE key once.

  • Page 18: Other Convenient Functions

    R-852 ENGLISH 5/5/99 2:05 pm Page 16 OTHER CONVENIENT FUNCTIONS 3. +1 min function The + 1 min function allows you to operate the following functions: a) Direct Start. You can start to cook directly on full microwave power (900 W) and in 1 minute steps by pressing the + 1 min /START key.

  • Page 19: Pizza/Potato/Instant Action

    R-852 ENGLISH 5/5/99 2:05 pm Page 17 PIZZA/POTATO/INSTANT ACTION The PIZZA, POTATO AND INSTANT ACTION functions automatically work out the correct cooking mode and cooking time of the foods illustrated below. FROZEN PIZZA/ FRESH PIZZA/FRESH QUICHE key FROZEN QUICHE key...

  • Page 20: Pizza/Quiche

    R-852 ENGLISH 5/5/99 2:05 pm Page 18 PIZZA/QUICHE CHART Frozen Pizza, Frozen Quiche Procedure: • Remove the ready prepared frozen pizza/ Quantity: 0,15 - 0,6 kg Pizza quiche from the packaging and place on the 0,15 - 0,4 kg Quiche turntable.

  • Page 21: Potato Chart

    R-852 ENGLISH 5/5/99 2:05 pm Page 19 POTATO CHART French Fried Potatoes Procedure: • Remove the deep-frozen, French-fried potatoes Quantity: 0,2 - 0,4 kg (recommended for conventional ovens) from the Utensils: Directly on the turntable package and place them on the turntable.
  • Page 22 R-852 ENGLISH 5/5/99 2:05 pm Page 20 INSTANT ACTION CHART Procedure: Roast Pork • Lean roast pork is recommended. Quantity: 0,6 - 2,0 kg • Mix all ingredients and spread them onto the pork. Utensils: Low Rack • Place the pork on the low rack.
  • Page 23 R-852 ENGLISH 5/5/99 2:05 pm Page 21 INSTANT ACTION CHART Easy Defrost Poultry Procedure: • Position a plate up side down on the turntable and Quantity: 0,9 - 2,0 kg place the poultry on it. Utensils: (see note below) • When audible signal sounds, turn over. Shield the...

  • Page 24: Care And Cleaning

    R-852 ENGLISH 5/5/99 2:05 pm Page 22 CARE AND CLEANING CAUTION: DO NOT USE COMMERCIAL 2. Make sure that mild soap or water does not OVEN CLEANERS, ABRASIVE, HARSH penetrate the small vents in the walls which may CLEANERS OR SCOURING PADS ON ANY cause damage to the oven.

  • Page 25: Service Call Check

    After 3 minutes do both GRILL heating elements become red? (x 3 If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.

  • Page 26: Specifications

    R-852 ENGLISH 5/5/99 2:06 pm Page 24 SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1.45 kW Bottom Grill : 0.55 kW Top Grill : 1.05 kW...

  • Page 27: Service Addresses

    Phone: 463-43114, Fax: 463-43113 BELGIUM En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes. Indien uw magnetron problemen geeft kunt u zich wenden tot uw dealer of een van de onderstaande Sharp service centra.
  • Page 28 Dienstl. GmbH, Grimmelallee 40, Tel: 03631-2040, Fax: 3654 / 99817 Eisenach, Blitz Electronic GmbH, Bahnhofstr. 17, Tel: 03691-77291, Fax: 72105 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex.
  • Page 29 Dienstl. GmbH, Grimmelallee 40, Tel: 03631-2040, Fax: 3654 / 99817 Eisenach, Blitz Electronic GmbH, Bahnhofstr. 17, Tel: 03691-77291, Fax: 72105 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex.
  • Page 30 Grimmelallee 40, Tel: 03631-2040, Fax: 3654 / 99817 Eisenach, Blitz Electronic GmbH, Bahnhofstr. 17, Tel: 03691-77291, Fax: 72105 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex.
  • Page 31 R-852 ENGLISH 5/5/99 2:06 pm Page 29...
  • Page 32 R-852 ENGLISH 5/5/99 2:06 pm Page 30 SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3, 20097 Hamburg 1 TINS-A171URRO Germany...
