Snapper ESPV21S Parts Manual

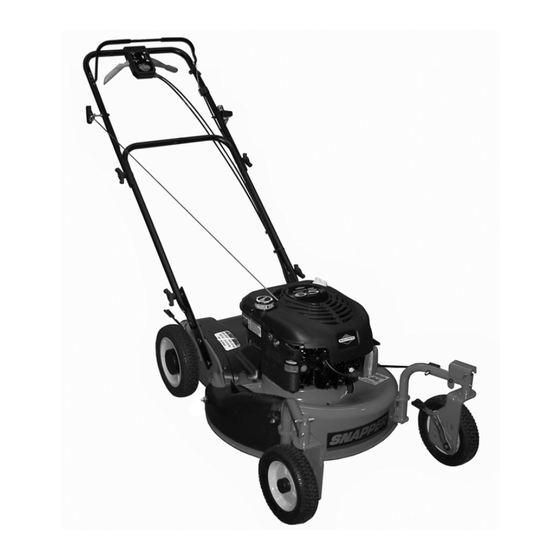

21" steel deck easy line european swivel wheel walk mower
Hide thumbs Also See for ESPV21S:
Table of Contents

Advertisement

Quick Links

Parts Manual for
21" STEEL DECK EASY LINE EUROPEAN
SWIVEL WHEEL WALK MOWER
MODEL
ESPV21S
ESPV211S
McDonough, GA, 30253 U.S.A.
Briggs & Startton Yard Power Products Group
Manual No.
7006208
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved
Revision 1,
1/16/2007
TP 400-5150-1-WB-N
