Snapper ESPV21 Parts Manual

21" steel deck easy line mcdonough, ga, 30253 u.s.a. 1/10/2007 tp 400-5149-1-wb-n manual no. 7006207 european walk mower
Hide thumbs Also See for ESPV21:
Table of Contents

Advertisement

Quick Links

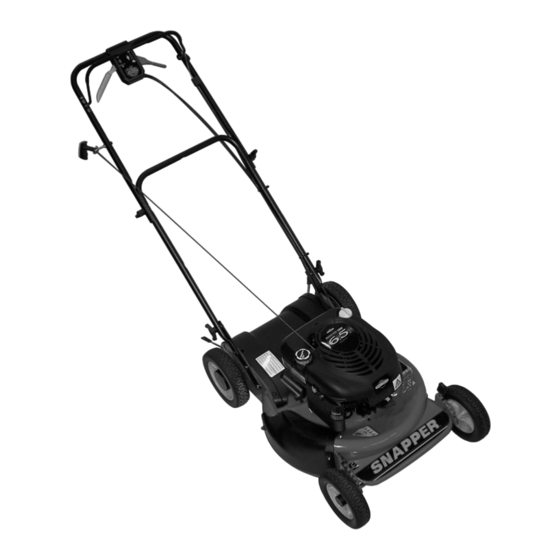

Parts Manual for
21" STEEL DECK EASY LINE
EUROPEAN WALK MOWER
MODEL
ESPV21
ESPV211
McDonough, GA, 30253 U.S.A.
Briggs & Startton Yard Power Products Group
Manual No.
7006207
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved
Revision 1,
1/10/2007
TP 400-5149-1-WB-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESPV21 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper ESPV21

Summary of Contents for Snapper ESPV21

  • Page 1 Parts Manual for 21" STEEL DECK EASY LINE EUROPEAN WALK MOWER MODEL ESPV21 ESPV211 McDonough, GA, 30253 U.S.A. Briggs & Startton Yard Power Products Group Manual No. 7006207 Copyright © 2007 Briggs & Startton Corporation Milwaukee, WI USA. All Rights Reserved...

  • Page 3: Table Of Contents

    PAGE GROUP HANDLES & CONTROLS GUARDS AND COVERS FRONT WHEELS REAR WHEELS REAR DECK BRACKETS & IDLER ARM TRANSMISSION ENGINE AND BLADE BAGGING COMPONENTS DECALS 21" STEEL DECK EASY LINE Table Of Contents Manual No. 7006207 TP 400-5149-1-WB-N...

  • Page 4: Handles & Controls

    HANDLES & CONTROLS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 5 NUT, 5/16-18 Hex Flange Lock, GR 5 7091135 PUSHNUT, 3/8” 7100632 FOAM GRIP, 7” Footnotes: NOTE: * Snapper part numbers are stamped on cables. 21" STEEL DECK EASY LINE Note finish: flat black textured finish: flat black textured (1/4-20 threads)

  • Page 6: Guards And Covers

    GUARDS AND COVERS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 7 GUARDS AND COVERS Item Part No Description 7078216 WELDMENT, 21” Deck, 7 Position 7100001 REAR COVER, Belt/Transmission 7900032 SCREW, 7 mm x 1 x .55 AB Point 7046780 PLUG, Hole (Polyethylene) 7078225 ROD, Trail Shield 7078272 SHIELD, Trail 7091584 NUT, 1/4-20 Hex Flange Lock 7090001 BOLT, 5/16-18 x 3/4”...

  • Page 8: Front Wheels

    FRONT WHEELS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 9 FRONT WHEELS Item Part No Description 7011392 AXLE, Front, Low Cost Walk Mower, 21 7500038 ASSEMBLY, Front Wheel Arm, L. H. 7051886 ASSEMBLY, Front Wheel Arm, R. H. 7091601 NUT, 5/16-18 Hex Flange Lock 7100585 WASHER, Shim, .875 x .531 x .060 7100015 WHEEL, Front, 8”, LS Tread, 1-5/8”...

  • Page 10: Rear Wheels

    REAR WHEELS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 11 REAR WHEELS Item Part No Description 7100184 ASSY., 9” x 2” Gear Wheel, LS Tread & P. M. Bushing 7101104 ASSY., 9” x 2” Gear Wheel, Double Bar II Tread & Nylon Bushing 7073618 BUSHING, Wheel (powdered metal) 7024541 BUSHING, Wheel (Nylon) 7091192 WASHER, 1/2”...

  • Page 12: Rear Deck Brackets & Idler Arm

    REAR DECK BRACKETS & IDLER ARM Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 13 REAR DECK BRACKETS & IDLER ARM Item Part No Description 7027174 SCREW, 5/16-18 x 2” Hex Head Cap, GR 5 7091256 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5 7091601 NUT, 5/16-18 Hex Flange Lock 7090799 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage 7300047 BRACKET, Transmission Mounting 7300494...

  • Page 14: Transmission

    TRANSMISSION Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 15 TRANSMISSION Item Part No Description 7500103 TRANSMISSION, LC Walk, Variable Speed TRANSMISSION, Dog Clutch 7100240 PULLEY, Transmission 1960251 NUT, 3/8-16 Hex Center Lock Jam 7012316 WASHER, .390 I.D. 7100395 BELT GUIDE, Variable Speed 7091545 NUT, 1/4-20 Hex Top Lock Flange 7100058 * BELT, 3L, Traction Drive 7900032...

  • Page 16: Engine And Blade

    ENGINE AND BLADE Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 17 ENGINE AND BLADE Item Part No Description * ENGINE, 6.5 B&S Quantum, Euro * ENGINE, 6.0 B&S Quantum, Euro 7090324 SCREW, 3/8-16 x 1” Hex Washer Self-Tap 7091088 SCREW, 3/8-16 x 2” Hex Washer Self-Tap 7100022 GUIDE, Belt 7200010 SPACER, Belt Guide 7100437 PULLEY, Engine 7091214...

  • Page 18: Bagging Components

    BAGGING COMPONENTS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 19 BAGGING COMPONENTS Item Part No Description 7058571 BAG ASSEMBLY (Door) 7042489 CONNECTOR, Bag 7075765 GRASS BAG (Door w/silver letters) 7051906 ASSEMBLY, Bag Wire (12”) 21S 7091100 NUT, 1/4-20 Hex 7091023 WASHER, 1/4” Internal Tooth Lock 7019287 COVER, Bag Adapter 7023000 HINGE, Chute Cover 7090803 BOLT, 1/4-20 x 5/8”...

  • Page 20: Decals

    DECALS Manual No. 7006207 21" STEEL DECK EASY LINE TP 400-5149-1-WB-N...
  • Page 21 DECALS Item Part No Description 7100185 DECAL, SNAPPER, Steel Decks 7100342 DECAL, Control Head, Variable Speed 7029776 DECAL,Euro Community (CE) 7022841 DECAL, Warning (Euro) 7100579 DECAL, Noise, 98 DB 7029782 DECAL, OPC Bail International Symbol 7072921 DECAL, Warning (Deck) 7029784...
  • Page 24 Parts Manual for 21" STEEL DECK EASY LINE EUROPEAN WALK MOWER IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...

This manual is also suitable for:

Espv211
