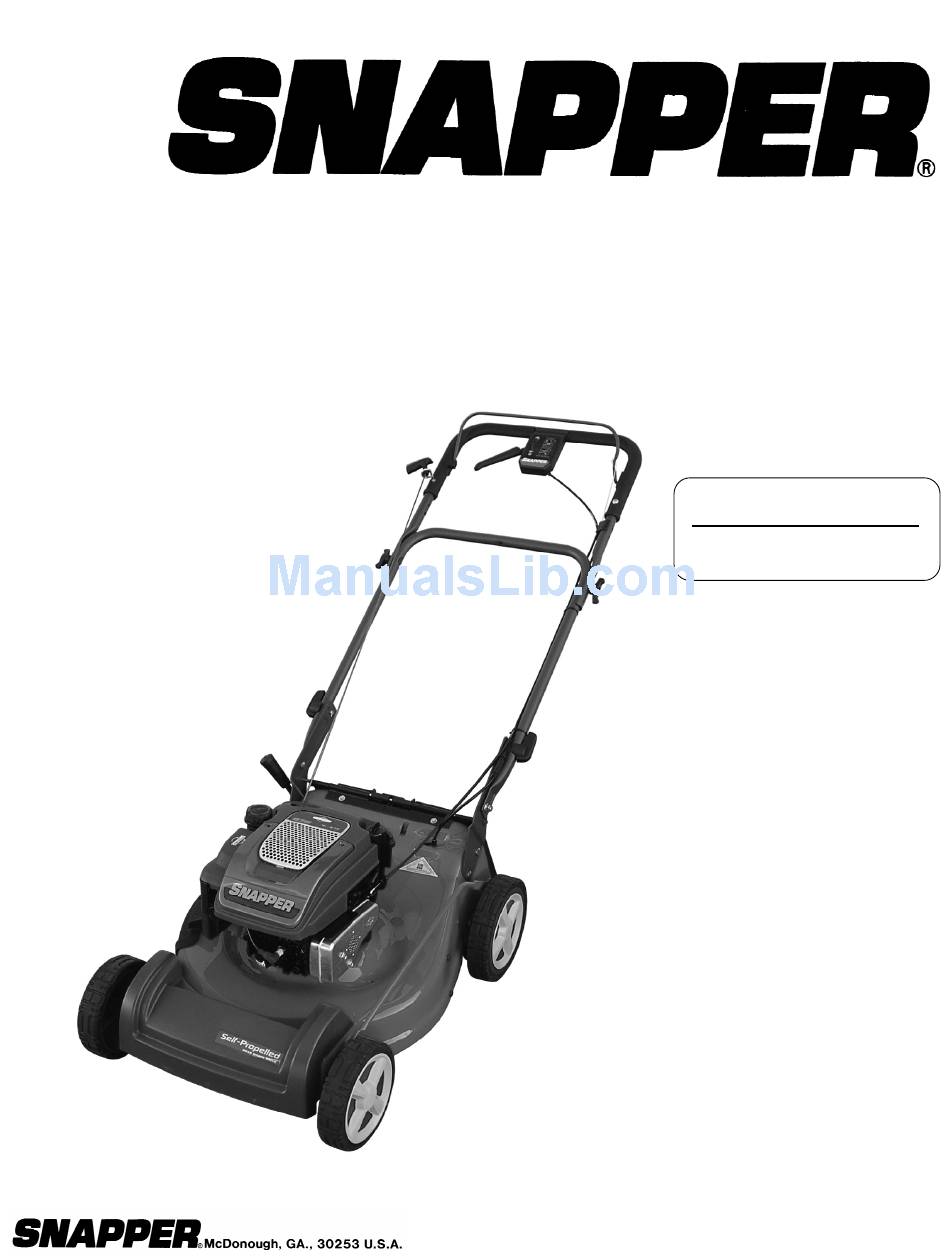

Quick Setup Instructions for
21" VARIABLE SPEED
REAR DISCHARGE

WALK BEHIND MOWERS

EUROPEAN MODELS
Models
ESPV21675 (7800253)
Manual No. 7101616 (Rev. '-' 3/13/2008)
TP 300-5366---WB-N

Advertisement

Table of Contents
loading

  Also See for Snapper ESPV21675

  Related Manuals for Snapper ESPV21675

  Summary of Contents for Snapper ESPV21675

  • Page 1: Walk Behind Mowers

    Quick Setup Instructions for 21” VARIABLE SPEED REAR DISCHARGE WALK BEHIND MOWERS EUROPEAN MODELS Models ESPV21675 (7800253) Manual No. 7101616 (Rev. ‘-’ 3/13/2008) TP 300-5366---WB-N...
  • Page 2: Items Included

    ESPV21675 Overview Bail Control Recoil Rope Handle Cutting Height Adjust Lever Fuel Fill Cap Mulching Cover Items that you will need Unleaded Fuel (minimum 87 octane) Utility Knife Items Included Mulching Plug (Installed) Grass Catcher Side Discharge Deflector SAE30W Drive...
  • Page 3 Unpack the mower • Cut all four corners of the box from top to bottom. • Remove all items from around the mower. Remove the clear plastic sheet from the top of the engine. • Locate and identify the items included with the mower. Read the manuals •...
  • Page 4 IMPORTANT Fuel tank holds less than 1/2 gallon. IMPORTANT DO NOT mix oil with fuel. • Replace the fuel fill cap, and wipe up any spills. Figure 2 Figure 3 www.snapper.com...
  • Page 5: Start The Mower

    Start the mower • Move the cutting height adjust lever (A, Figure 4) to the desired cutting height. • Set the mower to mulch, discharge or bag. (See 3-in-1 instructions.) • Hold the bail control (A, Figure 5) against the drive handle.
  • Page 6 Make sure the hooks (A, Figure 9) on either side of the catcher frame hook onto the rear door rod (B). • Release the rear door (it will lay on top of the grass catcher). Figure 6 Figure 7 Figure 8 Figure 9 www.snapper.com...
  • Page 7 ...to side-discharge: To convert to side-discharge: • Make sure the mulching plug is installed in the rear of the mower. • Lift the mulching cover (A, Figure 10). • Install the side discharge deflector (B) onto the mower deck. Make sure the upper tabs (A, Figure 11) of the deflector are hooked behind the mulching cover rod, and the deck tab sticks up through the locking slot (B).
  • Page 8 Quick Setup Instructions for 21” VARIABLE SPEED REAR DISCHARGE WALK BEHIND MOWERS EUROPEAN MODELS Snapper Products 535 Macon Street McDonough, GA 30253 1-800-935-2967 www.snapper.com...
