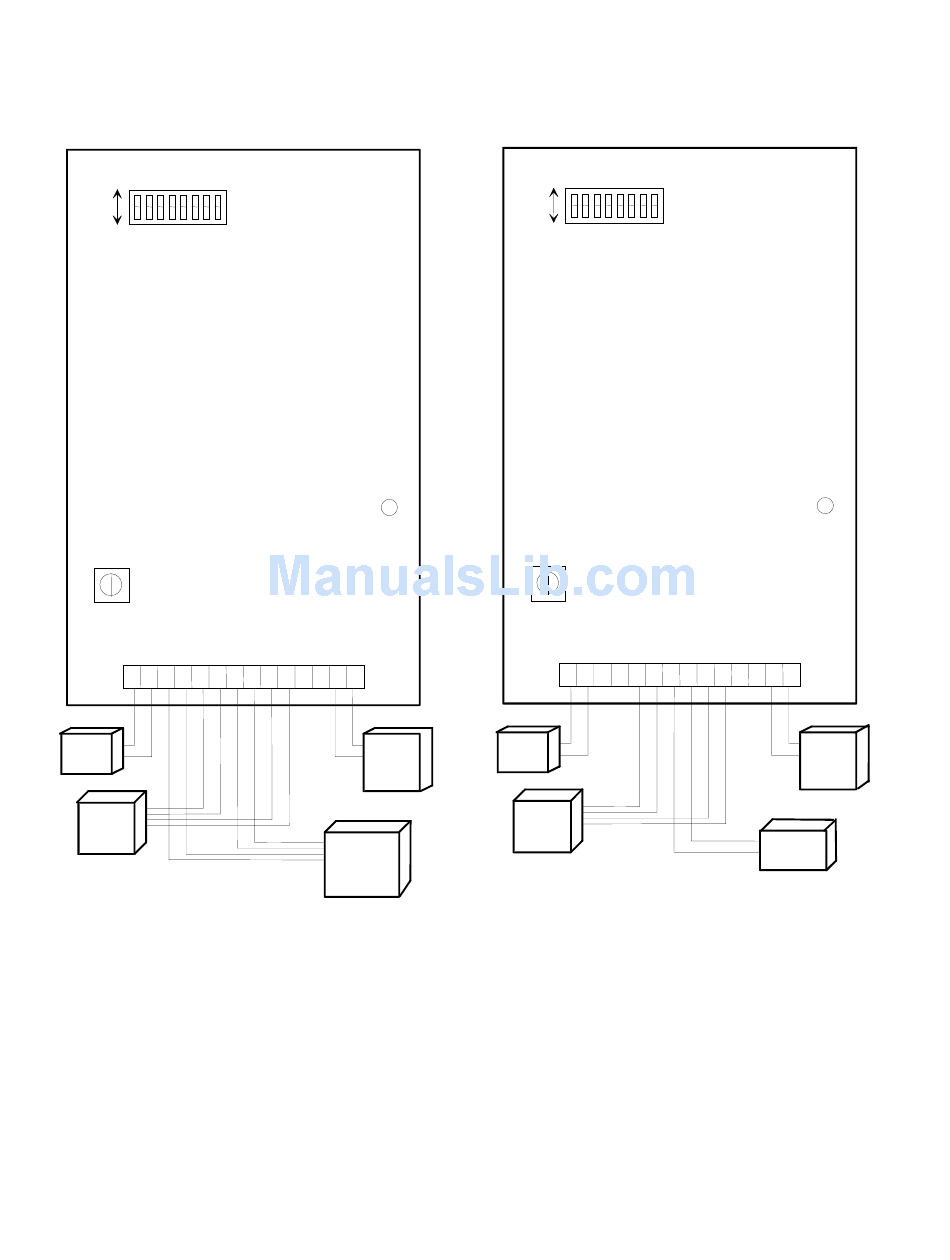

FIGURE 1 - CONNECTIONS TO THE V-9972 PAGE ADAPTER

MULTI-ZONE PAGING
(Refer to chart for dipswitch options)
ON SW1
OFF 1 2 3 4 5 6 7 8
Music
Level
R2
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Tuner,
CD,etc.
5ESS
E & M
Port
Power
On LED
Tuner,
-48 Vdc
CD,etc.
Power
Supply
V-2000
Series
Page
Control
* NOTE: For single zone paging (no BGM), connect a

CONNECTIONS

1 - Music
2 - Music
3 - Enable
4 - COM
5 - T1
6 - R1
7 - T3
8 - R3
9 - E
10 - M
11 - No Connection
12 - No Connection
13 - GND
14 - (-)48 VDC
4
SINGLE ZONE PAGING
(Refer to chart for dipswitch options)
ON SW1
OFF 1 2 3 4 5 6 7 8
Music
Level
R2
1 2 3 4 5 6 7 8 9 10 11 12 13 14
5ESS
E & M
Port
V-1094A to pins 7 and 8.
Power
On LED
-48 Vdc
Power
Supply
V-
1094A*
