Valcom V-9940 Technical Specifications

FEATURES:
BUILT-IN PUNCH DOWN BLOCK
BACKGROUND MUSIC INPUT WITH MUTE
ALL CALL CIRCUITRY
OPEN LOOP DISCONNECT OPTION
AUDIO SENSE AND TIME OUT CIRCUITRY
POWER REVERSAL LED
ANSWER VERIFICATION TONE
DESCRIPTION:
Allows telephone access of a paging system via an unused telephone line, Centrex line or PABX station port
with a station level page control. When accessed the page control answers the line and supplies audio to an auxiliary
input on the amplifier. The station level page control allows users to page remote buildings on or off site by picking up the
telephone and dialing a telephone or analog extension number. The page control monitors the line for a signal provided
by the telephone system and disconnects the paging system at the conclusion of the page. This unit provides music
mute, answer verification tone, a set of relay contact outputs, and disconnects by audio sense, timeout, manual reset or
open loop disconnect signal. Multi-zone paging with all call can be accomplished by interconnecting additional units.
CAPACITY:
Each V-9940 will provide one (1) zone of paging.
NOTE: Multi-zoning and all call requires additional
units.
INPUTS:
600 ohms
OUTPUTS:
600 ohm and 8 ohm
POWER REQUIREMENT:
-24 Vdc, 200 mA
5614 Hollins Road Roanoke, Virginia 24019
E-Mail: support@valcom.com

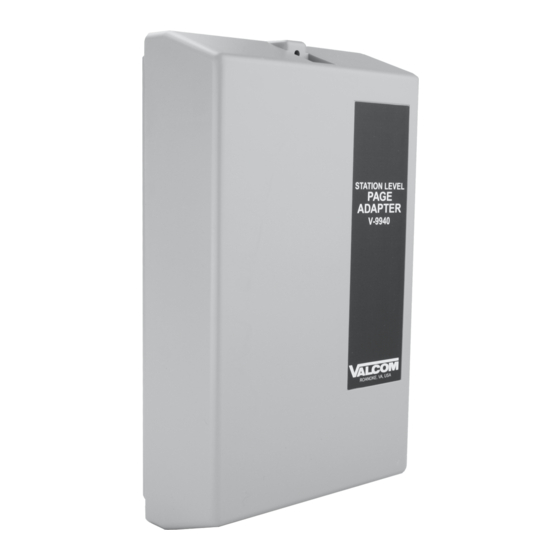

PAGE ADAPTER
MODEL V-9940
SPECIFICATIONS:
MOUNTING:
Surface Mount to Wall With Supplied Hardware
HOUSING:
White ABS Plastic
DIMENSIONS AND WEIGHT:
8.2" H (20.83 cm) x 4.55" W (11.56 cm) x
2.3 "D (5.84 cm)
Weight: 2.0 lb (.90 kg)
ENVIRONMENT
Temperature: 0 to 50
Humidity: 0-85% Non-Precipitating
