Model UT511: OPERATING MANUAL
The Meter Structure
Below Figure 1 and Table 4 shows the Meter front
structure and description

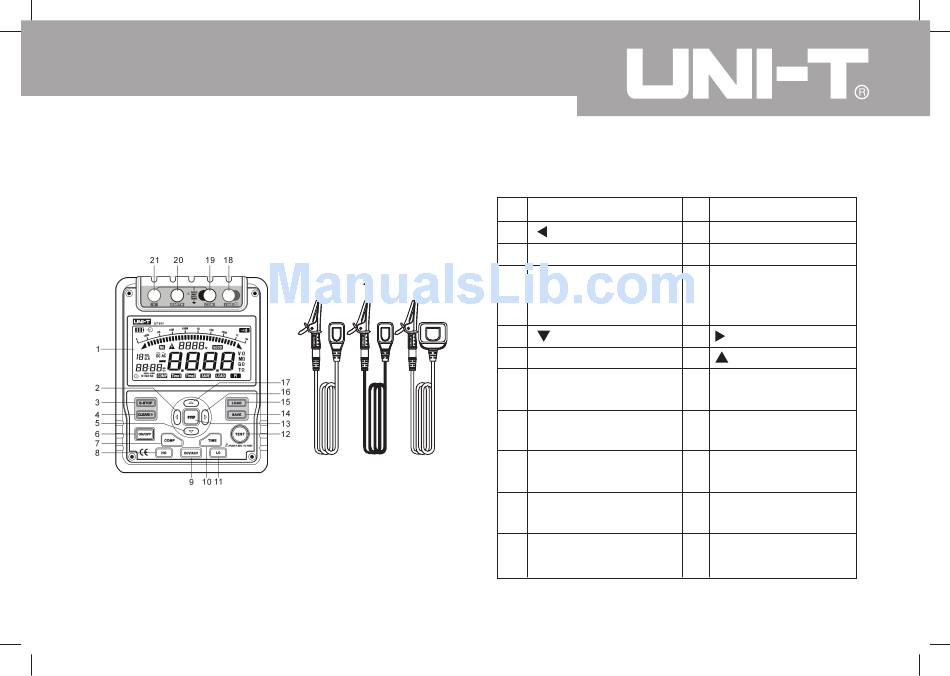

Figure 1. The Meter Front Structure
Table 4. Meter Front Description
1
LCD
2
Scroll Button
3
Emergency stop
4
Data Clear the
Display Backlight
Button,
5
Down Button
6
On/Off Button
7
Compare Button
8
Insulation Resistance
Button
9
Voltages
measurement Button
10
Timer Button.
11
Low Resistance
measurement Button
12
Test Button
13
Step Button
14
Data Store Button.
15
Data Recall Button
16
Scroll Button
17
Up Button
18
LINE: Resistance
input terminal
19
COM: Voltage input
terminal
20
EARTH: Resistance
input terminal
21
V: Voltage input
terminal
22
Testing leads
9
