Model UT511: OPERATING MANUAL
Measurement Operation
Below section explains how to make measurements.
A. Measuring Voltages
Black
Red

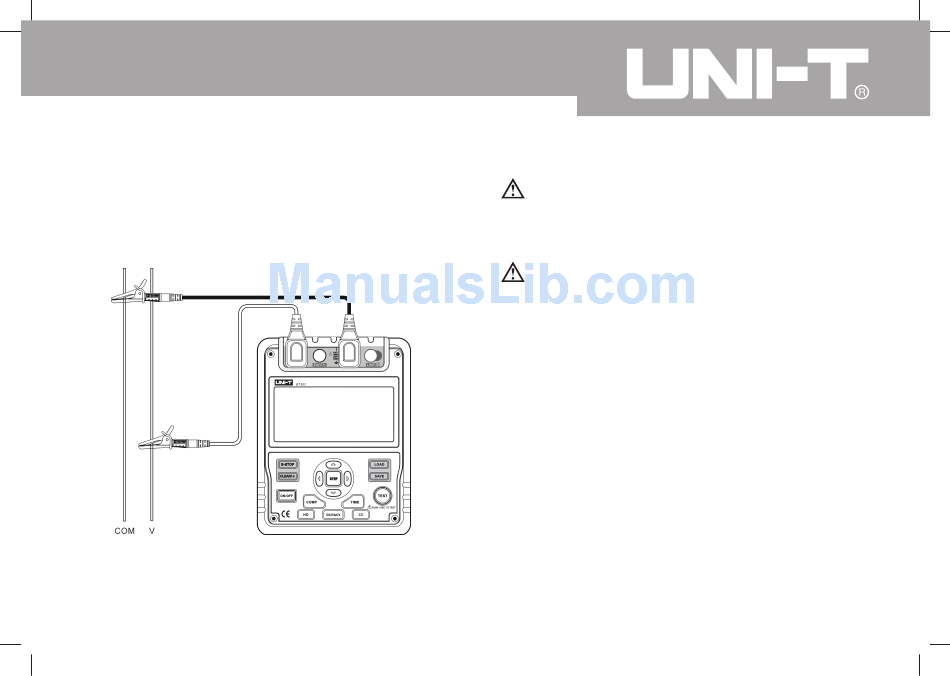

Figure 4. Voltages Measurement
Caution
l Special care should be taken when measuring
high voltage.
Warning
l To avoid harms to you or damages to the Meter,
please do not attempt to measure voltages
higher than 1000V DC or 750V AC, although
readings may be obtained.
To measure voltages, set up the Meter as Figure 4 and
do the following:
1.
Press DCV or ACV button to select DC voltage or
AC voltage measurement
2.
Insert the red test lead into the V terminal and the
black test lead into the COM terminal.
3.
Connect the red and black alligator clip to the circuit
to be measured.
4.
During measurement, when the red test lead is
negative voltage, then "-" shows on the display.
15
