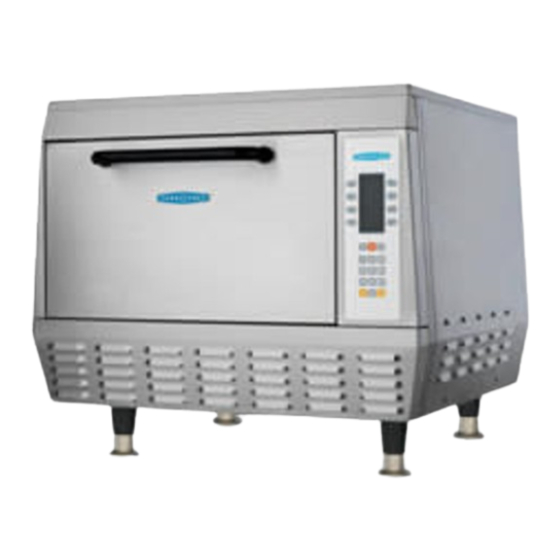

TurboChef Tornado Security Technical Bulletin

Tornado or C3

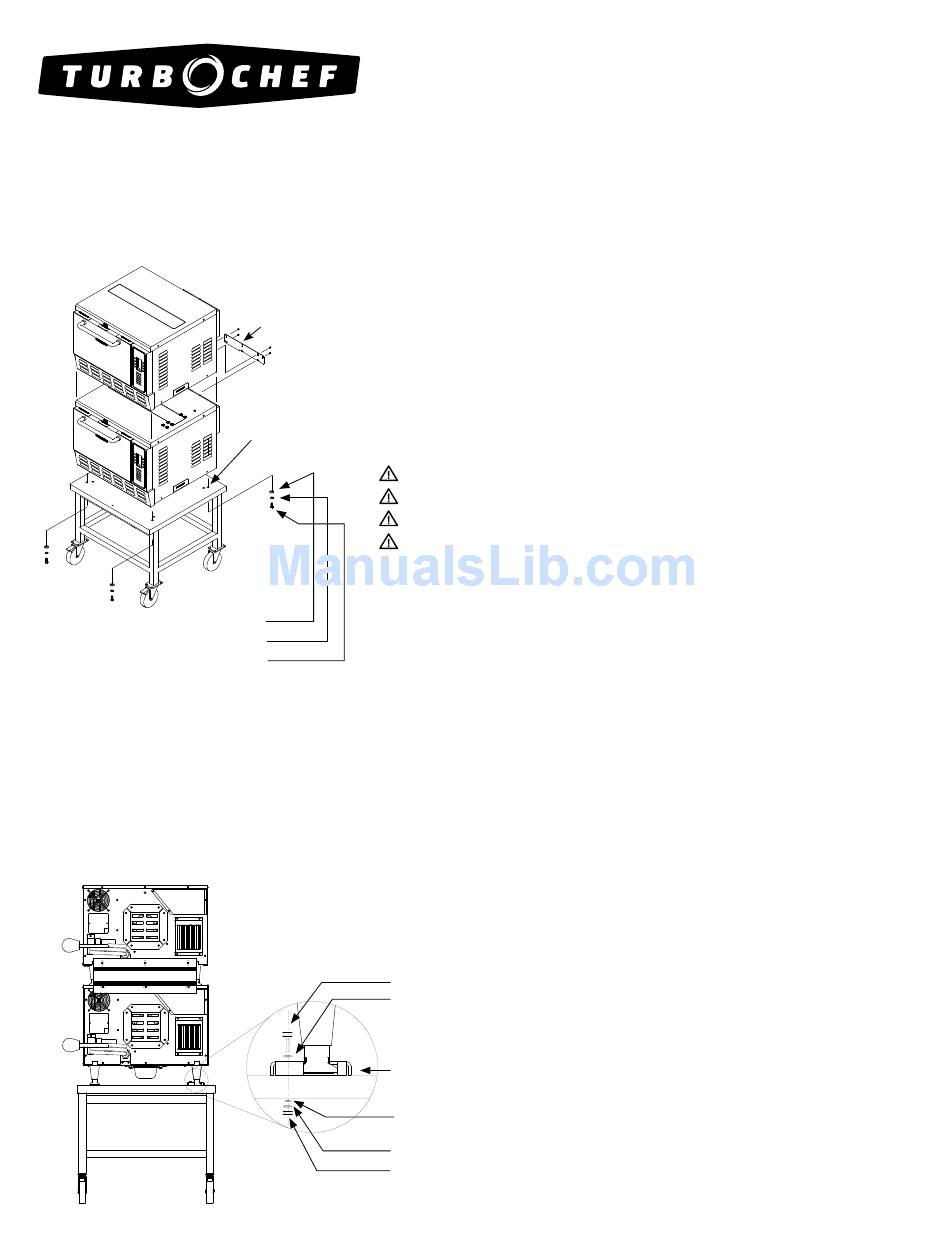

(Figure 1)
Stacking
Bracket
Outer Holes = Tornado
Inner Holes = C3
Split Lock
Washer
Flat Washer
Bolt
High h Batch
(Figure 2)
Securing Tornado, C3, and High h Batch Ovens to
an Oven Cart
FOR ALL OVENS:
1. Unplug the oven.
2. Lock the wheels of the oven cart.
NOTE: For additional skid prevention of C3 and Tornado ovens, place a TurboChef
sorbothane stacking mat (part number NGC-1342-1) on the cart, aligning the edges of
the mat with the edges of the cart.
3. Place the oven on the oven cart.
WARNING: Do not attempt to lift the oven with fewer than 2 people.
WARNING: When lifting, position at least one person on each side.
WARNING: Do not lift the oven from the front and back.
WARNING: Do not lift the oven by the door handle.
FOR TORNADO & C3 ONLY: (FIGURE 1)
4. If the oven is a C3 or Tornado, remove the legs. There will be holes in the oven where
the legs used to be.
5. Align the oven holes with the oven cart holes. (Different sets of holes are provided
on cart to accommodate either the Tornado or C3 - see Figure 1.)
6. Install bolts with washers by running them up through the cart surface and into the
holes in the oven (where the legs were).
FOR HIGH H BATCH: (FIGURE 2)
4. Attach one oven cart bracket to each leg (part number HHB-8206 includes four
brackets).
5. Secure each leg by aligning the bracket with the holes on the oven cart and
attaching the parts listed in Figure 2.
NOTE: Ensure the nut is securely tightened.
Bolt
Flat Washer
Bracket
Flat Washer
TurboChef Global Operations
4240 International Pkwy, Suite 105
Split Lock Washer
Carrollton, Texas 75007 USA
Nut
US: 800.90TURBO (800.908.8726)
International: +1 214.379.6000
Fax: +1 214.379.6073
turbochef.com
DOC-1032/Revision C/
August 2008
