Installation Instructions

Tools Required: Adjustable wrench, flat head screwdriver and a 1/4" socket wrench

Please use the built in information on the following pages for the exact dimensions needed to fit the

side burner into the structure. Once installed into the structure use the following steps to complete

the side burner installation.

INSTALLATION OF SIDE BURNER PARTS

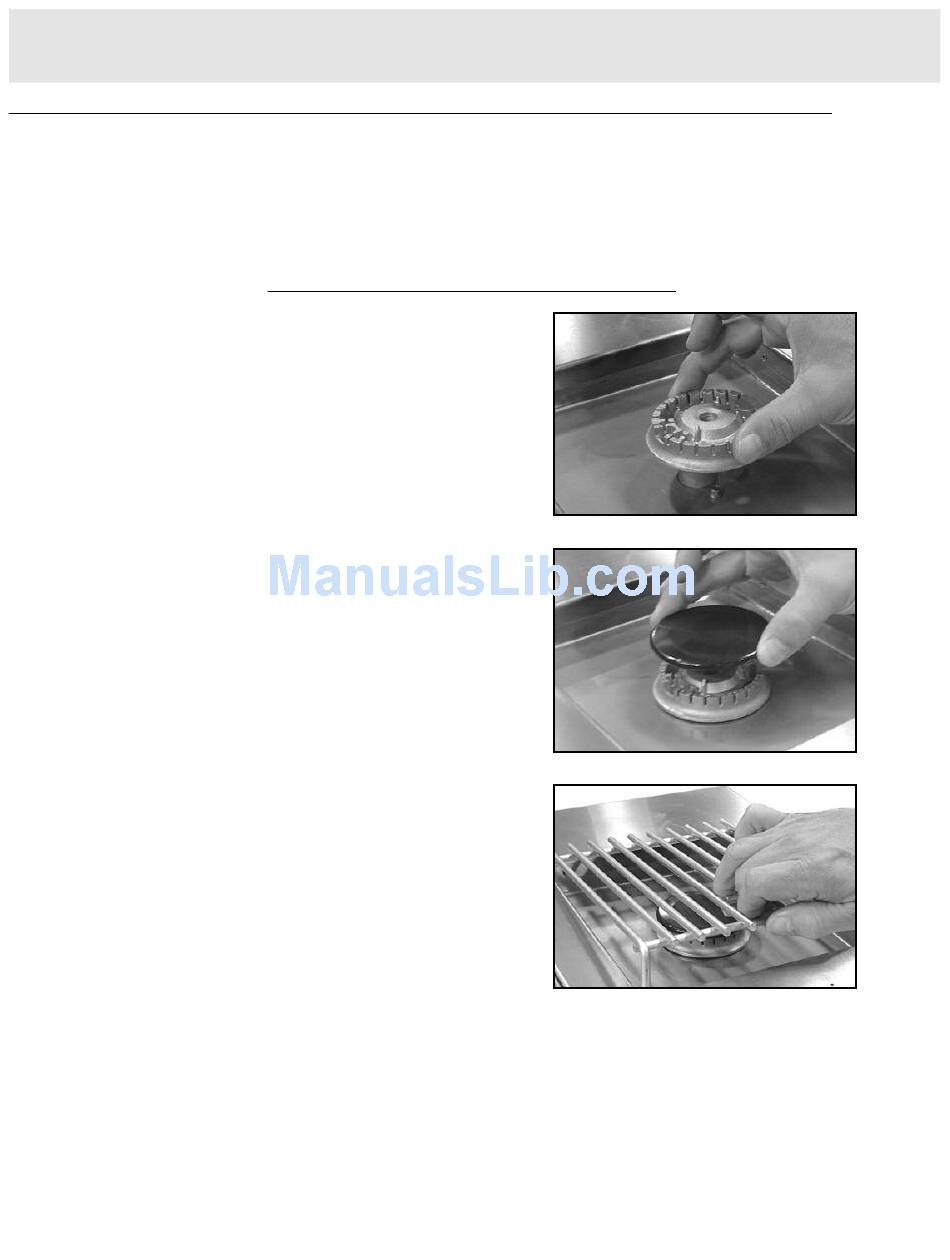

1. Install burner into side burner tray lining up the three

cutouts on the underside of the burner. (See Fig. 1)

Fig. 1

2. Install burner cap onto burner (See Fig. 2)

3. Install grate into burner. (See Fig. 3)

Fig. 2

Fig. 3
