Beyerdynamic MCW-D 200 Features And Specifications

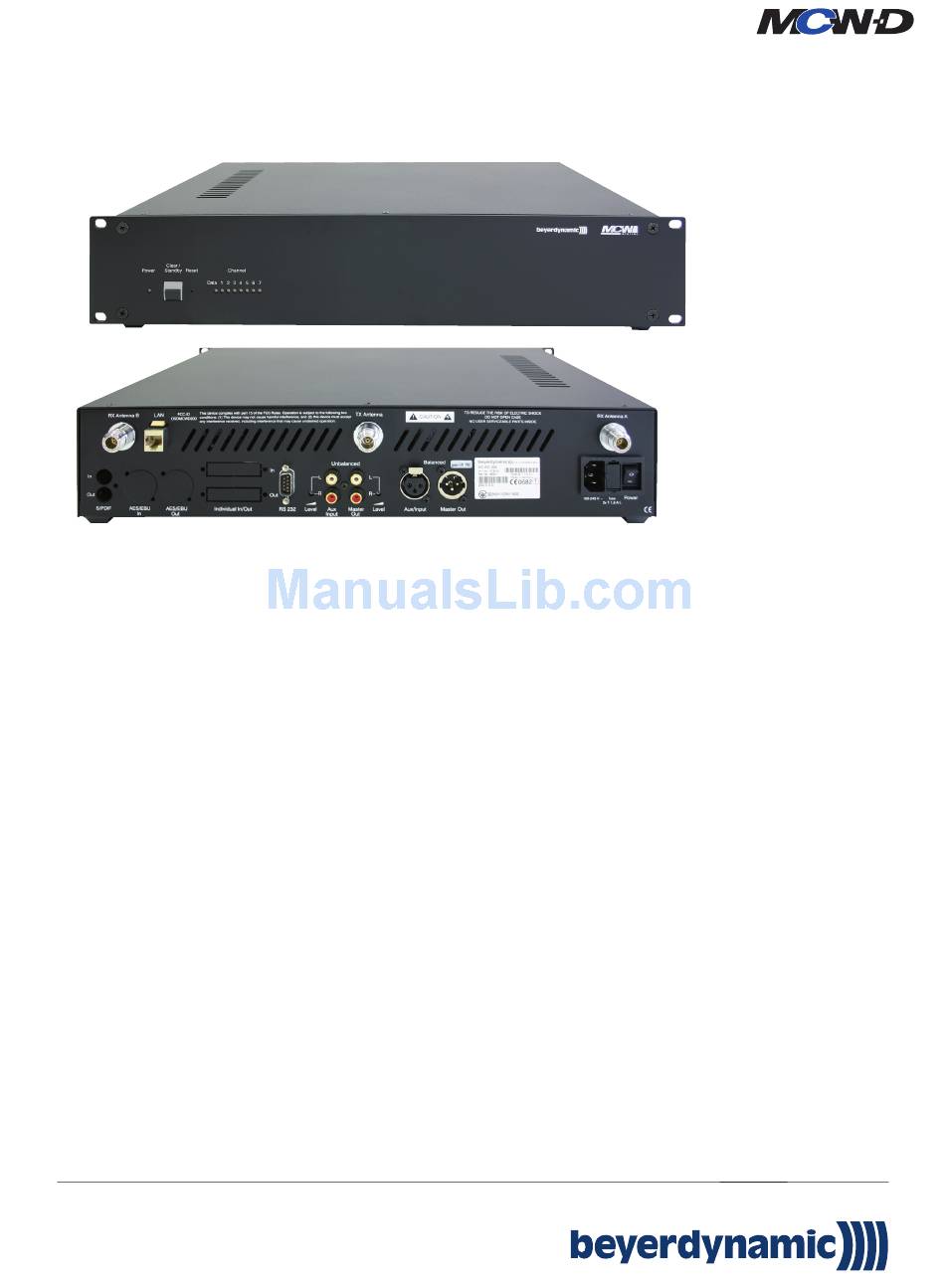

MCW-D 200
Digital Discussion Control Unit
Order # 472.522
F
EATURES
• Central control unit to control up to 65000 digital wireless
microphone units
• Specific DSSS modulation (Direct Sequence Spread
Spectrum) ensures a high noise immunity when used with other
wireless systems in the 2.4 GHz frequency band
• Wireless transmission in the world-wide approved
frequency range of 2.4 GHz
• Digitally encoded audio signals prevent unauthorised listening
• Up to 15 channels for audio transmission (full duplex)
• Four default slots for four microphone units
(e.g. 3 delegates and 1 chairman)
• Integrated antenna splitter/combiner for diversity reception
• Digital limiter function per input channel (can be configured)
• Manual or Request-to-Talk mode
• RS 232 interface for external operation with PC
or media control
• IPX network connection for external operation via PC or media
control system, especially when a media control system is
connected to the RS 232 interface
• MCW-D 200 Editor software for Windows
control unit and microphone units
• Available as an option: MCW-D 200 Controller software for
Windows ® to control the discussion system
• Available as an option: MCW-D 200 Voting software for
Windows for votings during or after the discussion
®
1 of 3
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 224
info@beyerdynamic.de | www.beyerdynamic.de
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E3 / MCW-D 200 (02.10)
• Remote RF-receiving and transmitting antennae for large distances
• Quick setup for discussions without additional sound
• Due to RF operation no extensive installations for transmitter or
• Additional audio input for e.g. wireless microphones
• Recording output for documentation
• Master output for external sound contracting systems
• All connections are plug-in type
• 19" desktop housing, 2 HU
• Options:
® to configure the
contracting devices
receiver components necessary (compared to infrared technology)
CA 2450
P-C board for 1 transmitting and 1 receiving channel,
2.4 GHz - DSSS (Direct Sequence Spread Spectrum)
3 modules can be used at maximum
CA 2451
P-C board Individual In/Out, in conjunction with the
MCW-D 200 Editor software the zoning mode is enabled which
allocates audio signals individually.
For multi-channel applications, e.g. interpreting applications, the
CA 2451 is needed.
CA 2452
P-C board Digital In/Out, with AES/EBU (XLR) and S/PDIF (RCA)
connections
