Beyerdynamic Orbis SU 63 Manual

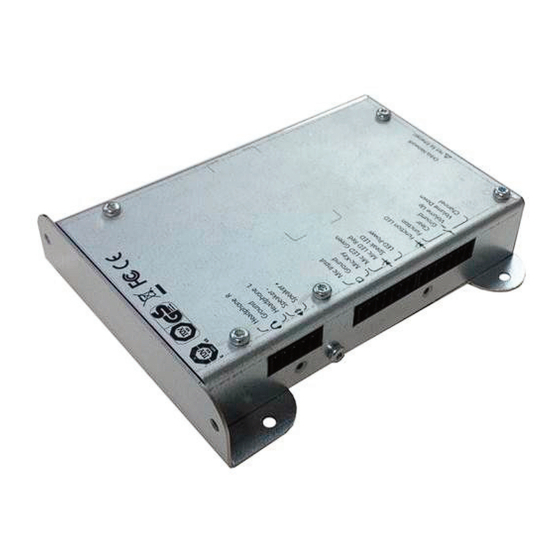

Orbis SU 63
Digital System Unit
Order # 725.749
F
EATURES
• Shielded metal housing for remote installation
• Use as chairman or delegate microphone unit possible
• Phoenix ® connectors for buttons, microphone,
headphone and loudspeaker
• Two RJ45 sockets to connect the system unit to the control unit
or another microphone unit/system unit
D
ESCRIPTION
The Orbis SU 63 system unit is used for remote "under the table"
installations in conference rooms.
In order to connect external components such as buttons, micro-
phone, headphone or loudspeaker, the system unit provides one
5-pin and two 7-pin Phoenix
®
By using the RJ45 sockets the system unit is connected to the
control unit and to the previous system unit or microphone unit.
The Orbis SU 63 system unit can be used as a chairman unit with
microphone, clear and function button or as a delegate unit with
one microphone button.
The microphone button is used to turn the microphone on or off. By
using the function button the chairman can interrupt the discussion
and mute all activated delegate microphones. By using the clear
button the chairman can turn off all activated delegate microphones.
Depending on the configuration of the Orbis CU control unit one
of the following operating modes is possible:
Normal: Each participant can turn on his/her microphone until the
number of open microphones is achieved.
FiFo: If the selected number of open microphones (NOM) is
exceeded, the microphone of the participant who turned on his/her
microphone first is turned off when another participant turns on
his/her microphone.
Voice-controlled Activation: The microphone is turned on when
the participant speaks into it, until the number of open micropho-
nes is achieved.
The system units are connected in a daisy chain to the Orbis CU
control unit, i.e. the first system unit is connected to the control
unit, the second system unit is connected to the first, the third
system unit to the second and so on. For connection standard CAT5
cables are used. Thus, one cable ensures the audio transmission,
power supply and control.
Connection to a control unit without redundancy
A maximum of 50 system units can be connected to one line of the
Orbis CU control unit, i.e. a total of 100 microphone units can be
operated with one Orbis CU control unit.
Connection to a control unit with redundancy
A maximum of 50 system units is connected in a ring to the
Orbis CU control unit, i.e. the last microphone unit is connected to
the previous system unit and the control unit. The redundancy
provides maximum reliablility. Should a defect in a cable occur at
one side of the system unit, the system unit will not fail to operate,
because it will still be supplied via the cable from the other side.
The cable in question or a defect system unit as well can be replaced
during operation without causing any problems with the other
system units.
1 of 5
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1 / Orbis SU 63 (01.15)
connectors.

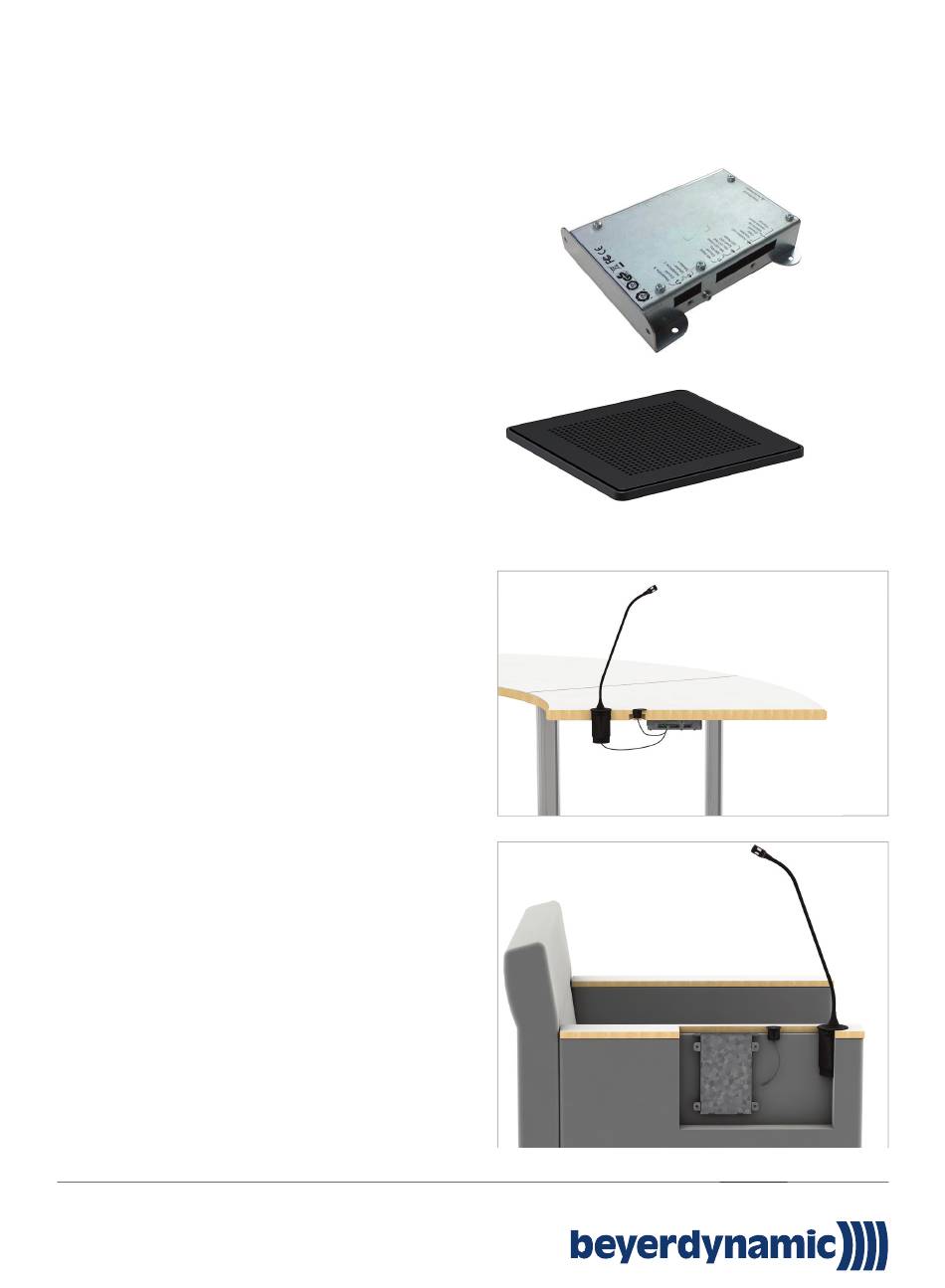

Supplied without CA OL loudspeaker
Installation into armrest
Table installation
