Tru Pointe® Ultra

4 Operation

Physical

To begin using the Tru Pointe
controls in Figure 1 and 2.

Taking Readings

General

1. Put on the Headphones and plug them into the Headphone Jack on the right side
of the detector.
2. Slide the Sensitivity Adjust toward the top of the instrument until it stops. The Tru
Pointe ® Ultra is now at full sensitivity.
NOTE: Always begin testing at full sensitivity and adjust
as needed to reduce background noise.
3. Gently push and hold the On/Off Button to begin leak detection. Simultaneously
adjust the sensitivity level to pinpoint the location of the leak.
NOTE: The On/Off Button must be pressed to continue
leak detection. Once the On/Off Button is released, the
detector will shut off.
4
® Ultra, fi rst take a moment to become familiar with the unit's

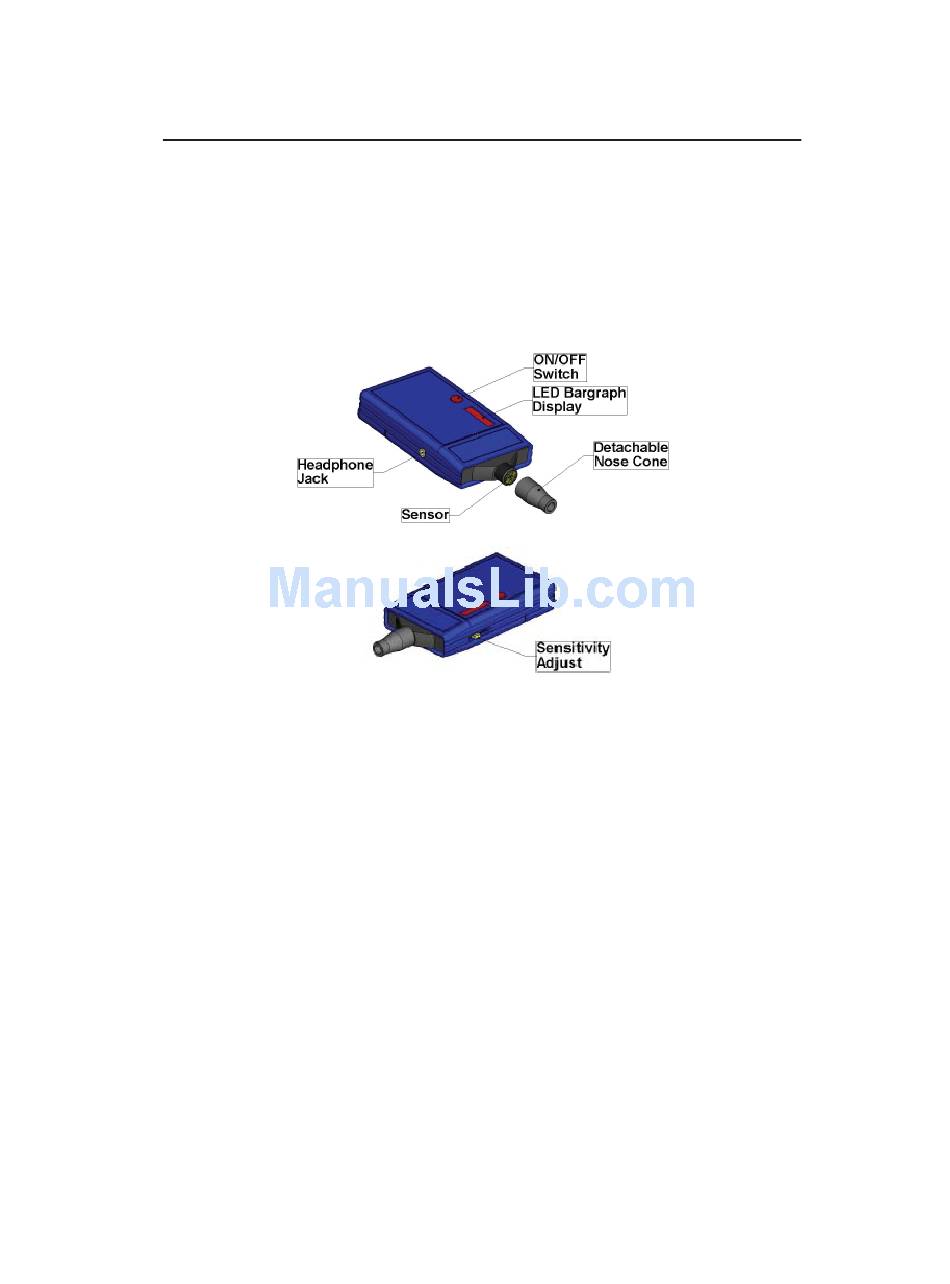

Figure 1.
Figure 2.
Instruction 0028-9000
