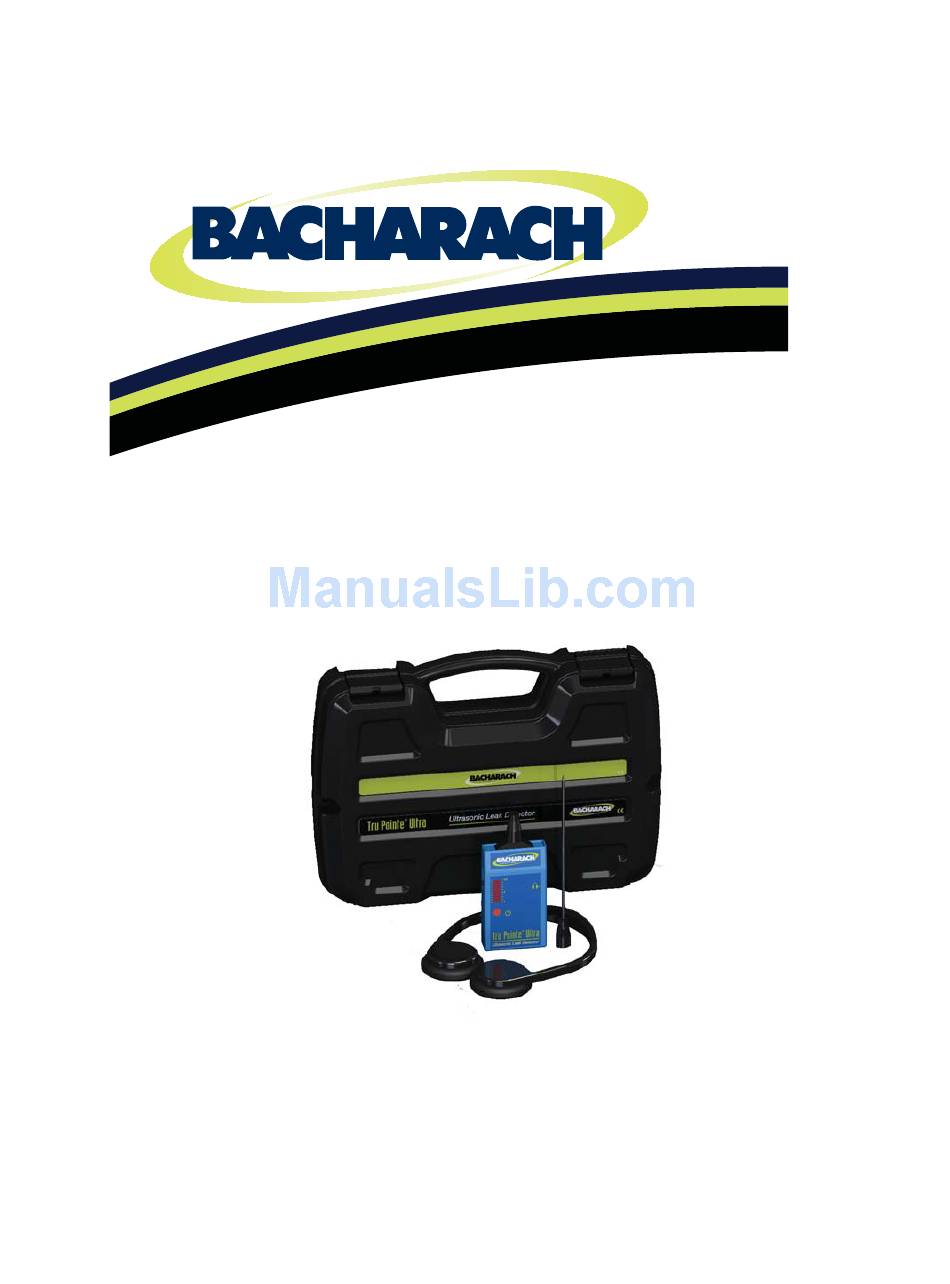

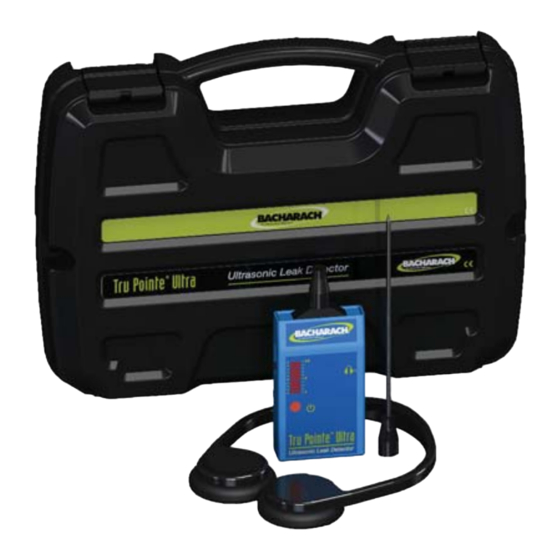

- Page 1 ® The Measurable Difference ® Tru Pointe Ultra Ultrasonic Leak Detector Instruction 0028-9000 Operation and Maintenance Rev. 1 - May 2010...
- Page 2 If defective, return to the factory for repair and re-calibration. Maximum liability of Bacharach shall be limited to replacement of unsatisfactory product.
-
Page 3: Table Of Contents
Contents 1 About This Manual ....................1 Warning Statements .................1 Caution Statements ................1 2 Introduction ......................2 General Description .................2 What’s in the Kit ................2 0028-8000 ..................2 0028-8010 ..................2 Features ...................2 3 Specifi cations .......................3 4 Operation ......................4 Physical ....................4 Taking Readings ................4 General ....................4 Airborne Leak Detection ..............5 Operating Tips ..................6... - Page 4 NOTES...
-
Page 5: About This Manual
Tru Pointe® Ultra Instruction 0028-9000 1 About This Manual Thank you for investing in a Bacharach Tru Pointe ® Ultra Ultrasonic Leak Detector. To assure operator safety and the proper use of the Tru Pointe Ultra, please read the contents ®... -
Page 6: Introduction
Tru Pointe® Ultra Instruction 0028-9000 2 Introduction General Description The Tru Pointe ® Ultra Ultrasonic Leak Detector is an electronic instrument that detects the inaudible high frequency sound (ultrasound) of high pressure leaks and converts it to sound a human can hear. Using patented technology, the Tru Pointe Ultra guides the user to a leak by ®... -
Page 7: Specifi Cations
Tru Pointe® Ultra Instruction 0028-9000 3 Specifi cations Physical Dimensions 4.15”L X 2.4”W X .875”D (105 mm X 61 mm X 22.22 mm) Overall Length 5.5” (140 mm) Body Material Body Finish Blue ABS Connector 3.5 mm Stereo Weight 0.3 lb. (138 g) including battery Electrical Sensitivity -80 db/V-μbar... -
Page 8: Operation
Tru Pointe® Ultra Instruction 0028-9000 4 Operation Physical To begin using the Tru Pointe ® Ultra, fi rst take a moment to become familiar with the unit’s controls in Figure 1 and 2. Figure 1. Figure 2. Taking Readings General Put on the Headphones and plug them into the Headphone Jack on the right side of the detector. -
Page 9: Airborne Leak Detection
Tru Pointe® Ultra Instruction 0028-9000 Airborne Leak Detection The Tru Pointe ® Ultra is capable of detecting airborne leaks from up to 40 feet away. When an ultrasonic signal generated from a leak is detected, it will be indicated by an increase in the LED meter and a rushing sound will be heard in the headset. -
Page 10: Operating Tips
Tru Pointe® Ultra Instruction 0028-9000 Operating Tips If the test area is large, remove the nose cone. Without the nose cone the detec- tion area of the Tru Pointe Ultra increases from 15° to 90°. ® If the leak is in a tight, or inaccessible area, use the supplied Wave Guide to deter- mine the leak location. -
Page 11: Using The Touch Probe
Tru Pointe® Ultra Instruction 0028-9000 Using the Touch Probe The patented Touch Probe accessory is a device that converts solid-borne sounds into airborne sound the Tru Pointe Ultra can detect. For example, the sound of an internal leak in a water ®... -
Page 12: Using The Soundblaster
Tru Pointe® Ultra Instruction 0028-9000 ® Using the SoundBlaster Some Tru Pointe Ultra kits include Bacharach’s ultrasonic sound generator, the SoundBlaster ® ® The SoundBlaster is used to artifi cially pressurize items and detect potential leaks using a 115dB ®... -
Page 13: Soundblaster ® Applications
Tru Pointe® Ultra Instruction 0028-9000 ® SoundBlaster Applications The SoundBlaster ® is an excellent tool for weatherizing buildings by detecting leaks in windows, doors and roofs. To effectively use the SoundBlaster and Tru Pointe Ultra to check for building ® ®... -
Page 14: Care And Service
Slide the Battery Door back on the instrument, making sure it is securely attached. Service If you need service, please contact Bacharach Customer Service (800-736-4666 or 724-334- 5000) to obtain an RMA number for service returns. When you receive your RMA number, return the instrument, postage paid and insured to: Bacharach, Inc. - Page 15 Tru Pointe® Ultra Instruction 0028-9000 NOTES...
- Page 16 ® The Measurable Difference Bacharach, Inc. Phone: 724-334-5000 • Toll Free: 800-736-4666• Fax: 724-334-5001 www.mybacharach.com • help@mybacharach.com...
