User Manual

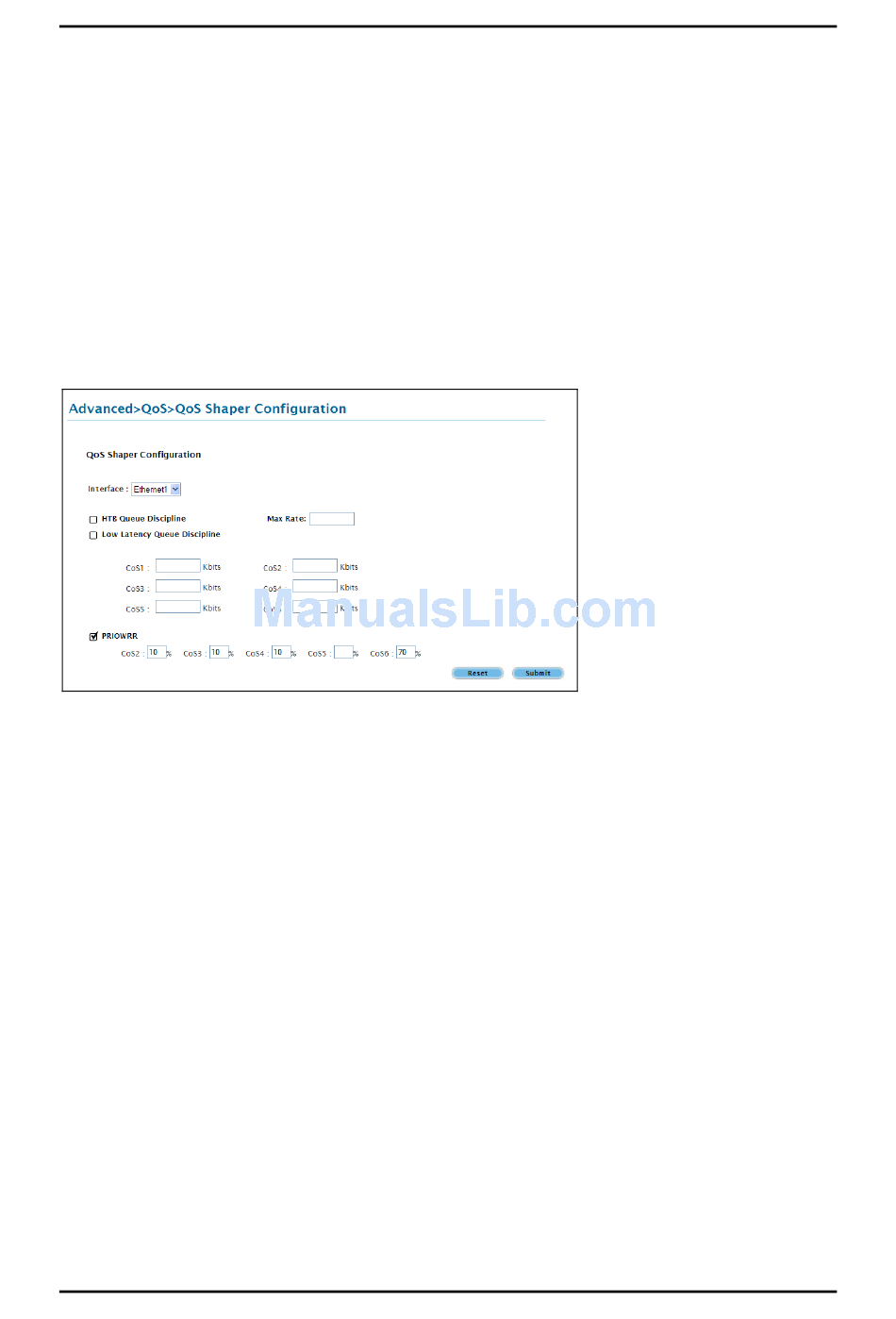

Example 3: PRIOWRR Enabled
In this third example, PRIOWRR is enabled. Since PRIOWRR operates only on the number
of packets being transmitted, the max rate field has been disabled. Only percentage can
be assigned to the CoS2 - CoS6. CoS1 is not rate controlled (hence the field is not
displayed). When there are no CoS1 packets, CoS2, CoS3, CoS4 each has 10 percent, and
CoS6 has 70 percent. This is similarly to the Low Latency Queue discipline, except that
one is packet-based, and the other is rate-based.
PRIOWRR enabled
Page 67 of 93
