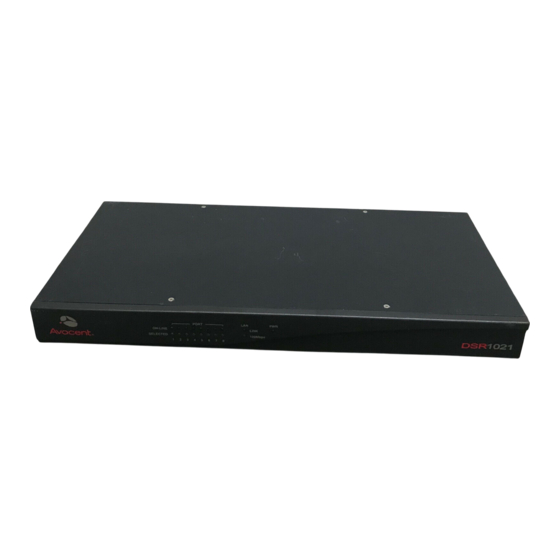

Avocent DSR 1021 Quick Installation Manual

The following instructions will help you
to connect your DSR switch.
Should you require further assistance, please
consult your installer/user guide.
1
Connecting power to the
DSR switch
Power down all servers that will be part of your DSR
switching system. Locate the power cord that came
with the DSR switch. Plug one end into the power
socket on the rear of the DSR switch. Plug the other
end into an appropriate AC wall outlet.
2
Connecting the local port
Plug a VGA monitor and the PS/2 keyboard and
mouse cables into the appropriately labeled
DSR ports.
3
Connecting a DSRIQ module to
the DSR switch
Choose an available port on the rear of your DSR
switch. Plug one end of a CAT 5 cable (4-pair, up to
10 meters) into a numbered port and plug the other
end into the RJ-45 connector of a DSRIQ module.
4
Connecting a server to the
DSRIQ module
Plug the DSRIQ module into the appropriate ports on
the back of the server. Repeat this procedure for all
servers that are to be connected to the DSR switch.
5
Connecting network users
Plug a CAT 5 cable from your Ethernet network into
the LAN connector on the back of your DSR switch.
Network users will access the DSR switch through
this port.
(Continued on reverse side)
Check our web site at www.avocent.com/support to search the knowledge base or use the online request.
Avocent, the Avocent logo, The Power of Being There and DSR are registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2004 Avocent Corporation. All rights reserved.

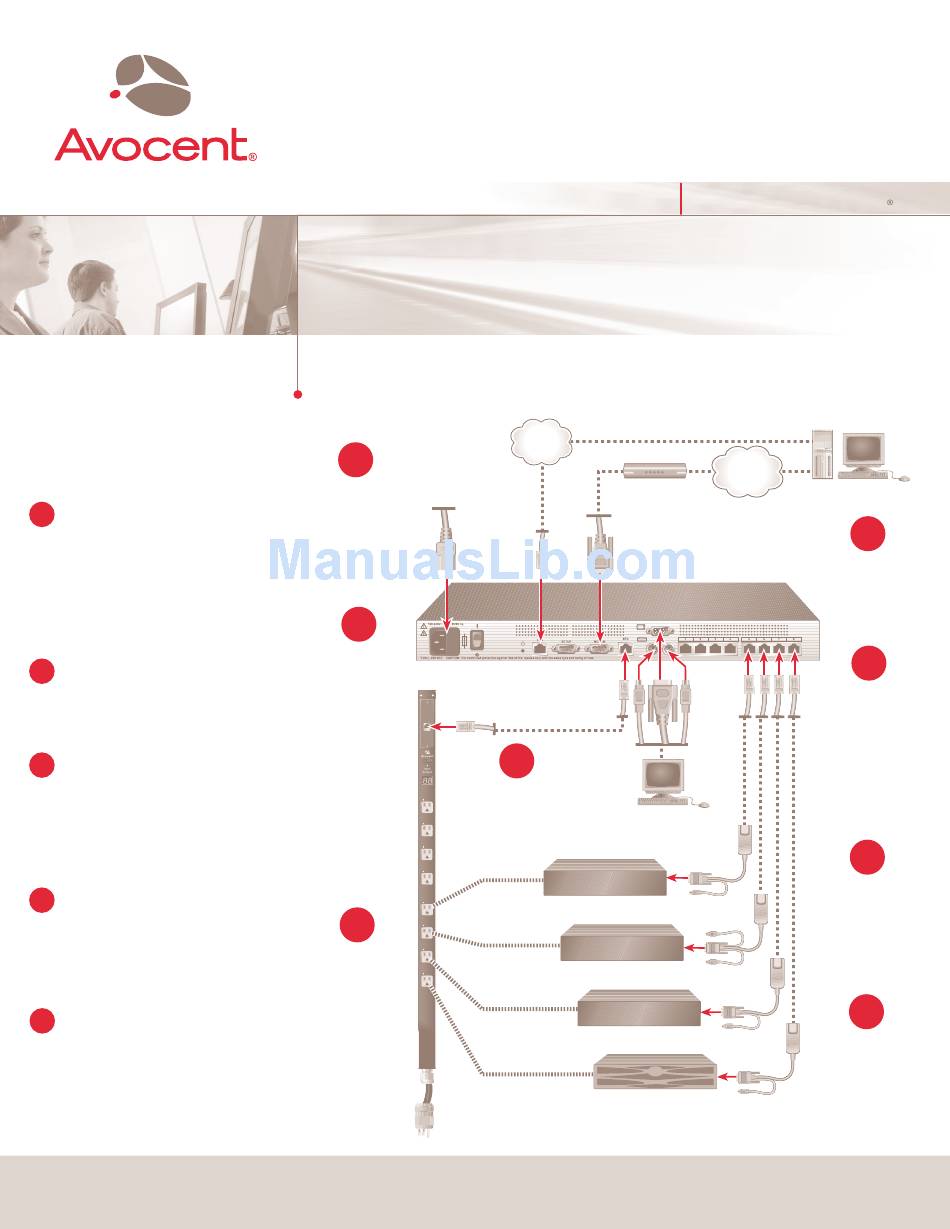

Quick Installation Guide
DSR ® 1021/1022 Switch
To connect a DSR switch
5
Connect the switch
to the network.
1
Power down all
servers and attach
the appropriate
power cord to the
DSR switch.
A1
Plug in the keyboard,
monitor and mouse for
your local connection.
7
Connect your
SPC device to
the target servers.
SPC Power
Control Device
Ethernet
Modem
2
Local Connection
Server
Server
Server
Server
The Power of Being There
Telephone
network
6
Plug in the
DSR1021 Switch
external modem.
3
Connect DSRIQ
modules to the
DSR switch.
4
Connect servers to
the DSRIQ modules.
8
Power up target
servers and then the
DSR switch.
590-428-603A
