Avocent DSR 1021 Quick Installation Manual

The following instructions will help you
install and use your DSR switch.
Should you require further assistance, please
contact Avocent Technical Support.
1

Connecting power to the DSR switch

Turn off all servers that will be part of your
DSR switching system. Locate the power
cord that came with the DSR switch. Plug
one end into the power socket on the rear
of the DSR switch. Plug the other end into
an appropriate AC wall outlet.
2

Connecting the local port

Plug your VGA monitor, PS/2 keyboard and
mouse cables into the appropriately labeled
DSR ports.
3
Connecting a DSRIQ module to the

DSR switch

Choose an available port on the rear of your
DSR switch. Plug one end of a CAT 5 cable
(4-pair, up to 50 meters) into a numbered port
and plug the other end into the RJ-45 connector
of a DSRIQ module.
4 Connecting a server to the
DSRIQ module
Plug the DSRIQ module into the
appropriate ports on the back of a
server. Repeat this procedure for all
servers that are to be connected to the
DSR switch.
To Contact Avocent Technical Support: Visit www.avocent.com
Avocent, the Avocent logo, The Power of Being There, DSR and OSCAR are registered trademarks of Avocent Corporation or its affiliates. ©2007 Avocent Corporation. All rights reserved.
Quick Installation Guide
DSR Switch
®
DSR 1021/1022 Switches

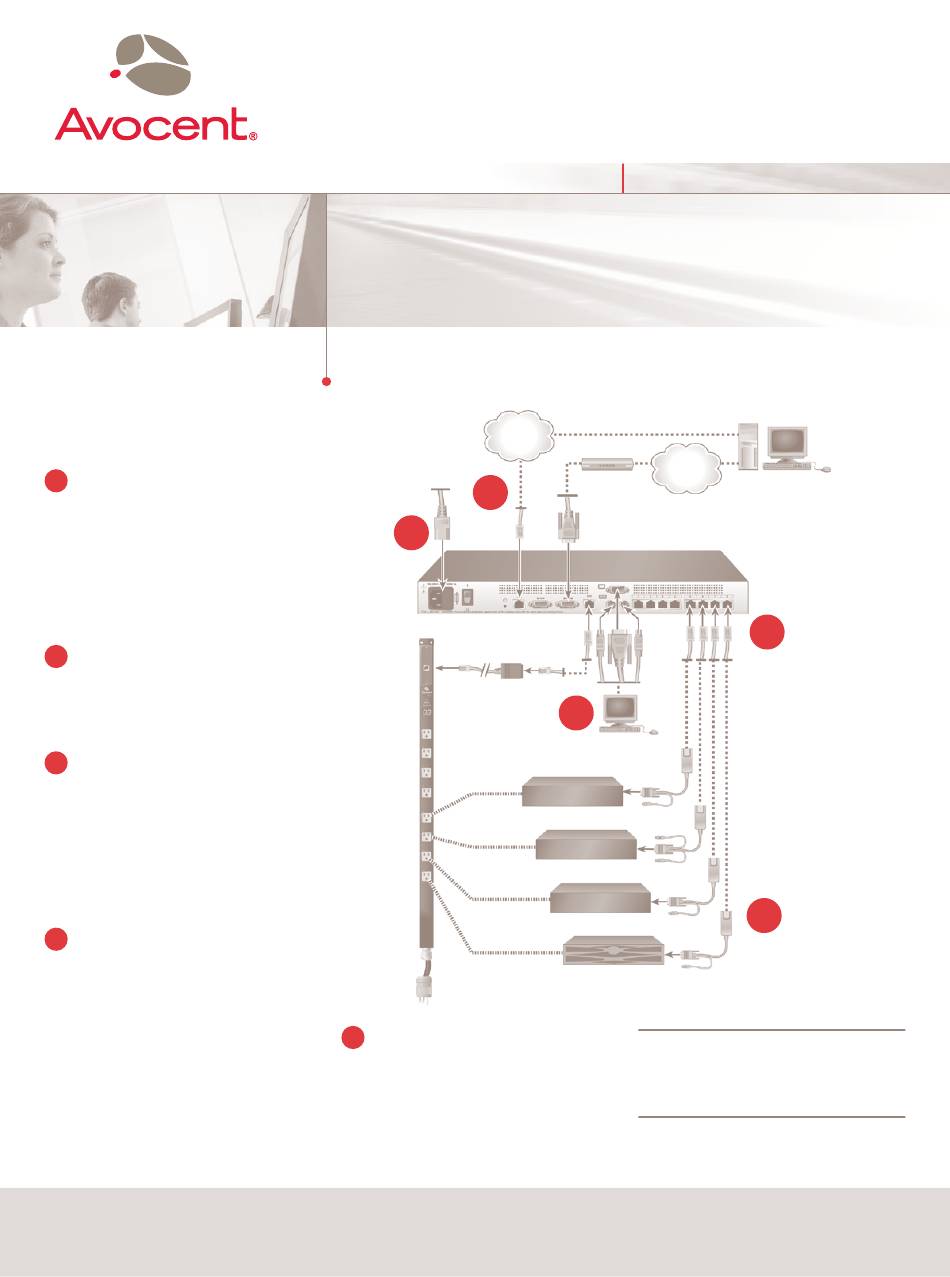

To connect a DSR switch
Ethernet
5
1
RJ-45
Adaptor
PM IPDU
Connecting network and
5
remote users
Plug a CAT 5 cable from your Ethernet
network into the LAN connector on the back
of your DSR switch. Network users will
access the DSR switch through this port.
The Power of Being There
Modem
Telephone
Network
2
Local
Connection
Server
Server
Server
Server
NOTE: The network setting can be
configured via the local port using the
OSCAR ® graphical user interface.
(Continued on reverse side)
®
3
4
590-428-501B
