- Page 1 Night Patriot u s e r ` s g u i d e AMERICAN TECHNOLOGIES NETWORK CORP.
- Page 2 The information in this manual furnished for information use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2001 ATN Corp. All right reserved.

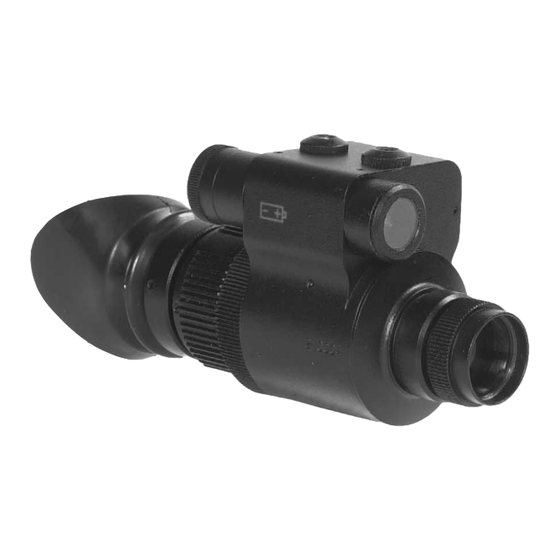

- Page 3 APPLICATION The Patriot Multi-Purpose System (MPS) is designed to be the ultimate Night Vision Device. This versatile unit can be used in night vision time situations as a compact hand spotting scope, a hands free goggle system, a weapon sight, and applicable for video or photography. If versatility is what you are looking for in night vision device then the Patrior MPS is the system for you.
-
Page 4: Operation
OPERATION • Take the monocular out of the case. • Install the batteries into the housing with the polarity order as shown on the scope. Battery Type: 3 Volt Lithium, #CR123A • Press Button marked –/O to turn unit on with the protective lens cover still attached to the lens. - Page 5 CHANGING FRONT LENS/DOUBLER Increasing and decreasing magnification. The Patriot can have several different magnifications. This is achieved by using different combi- nations of lenses and eyepieces. The table below shows what magnifications can be achieved. To change eyepiece unscrew connector ring and remove eyepiece, screw new eyepiece on. To remove the front lens unscrew the lens by turning the base of the front lens, screw new front lens on.
-
Page 6: Infra-Red Illuminator
FOCUSING To focus the Patriot first you will need to adjust the diopter. Simply turn the diopter clockwise NOTE: The front lens should be readjusted as you view objects at different distances. INFRA-RED ILLUMINATOR turned off. GOGGLE SYSTEM To turn the Patriot into a goggle system you need to attach the transfer piece to the main body of the Patriot. - Page 7 USING THE CAMERA ADAPTER To use your Patriot with a 35mm camera or camcorder you will need the following: 1) If you plan to use a camcorder then your camcorder must have a MACRO feature. Most modern camcorders today have a MACRO feature builtin. 2) If you plan to use a 35mm camera, you will need a MACRO lens.
- Page 8 BI-OCULAR KIT To replace an eyepiece with a bi-ocular eyepiece unscrew the joint ring and take the eyepiece off. Set up the bi-occular eyepiece and screw its join ring. Your Patriot TACTICAL DAY/NIGHT SYSTEM • Place the Long rail to standard US weaver of the fire arm. •...
-
Page 9: Storage And Care
Clamp Quick release Screws mount Fixator screws Your Patriot Position for nighttime use STORAGE AND CARE If the device is not to be used for extended period of time (more than 10 days) remove the bat- tery. Avoid touching lenses. If fingerprints or traces of dirt or dust appear, clean surface with a Photographic lens cleaning tissue. - Page 10 PATRIOT SPECIFICATIONS Part name i r t i r t I I I a l l i t l c i t c i t c i f c i l c i l c i f c i f c i l , l i , l i...
-
Page 11: Year Product Warranty
ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a) used in other than its normal and customary manner;... - Page 12 20 S. Linden Ave. Suite 1B, South San Francisco, CA 94080 phone: 800-910-2862, 650-875-0130; fax: 650-875-0129 European Office phone: 44(0)870-0111286, fax: 44(0) 845-3349142 The following countries can use our toll free number 00 800 9102-8620 Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland www.atncorp.com ©2001 ATN Corporation...
