ATCOM AX-4G Product Manual

Hide thumbs Also See for AX-4G:

Advertisement

Quick Links

Download this manual See also: User Manual
®

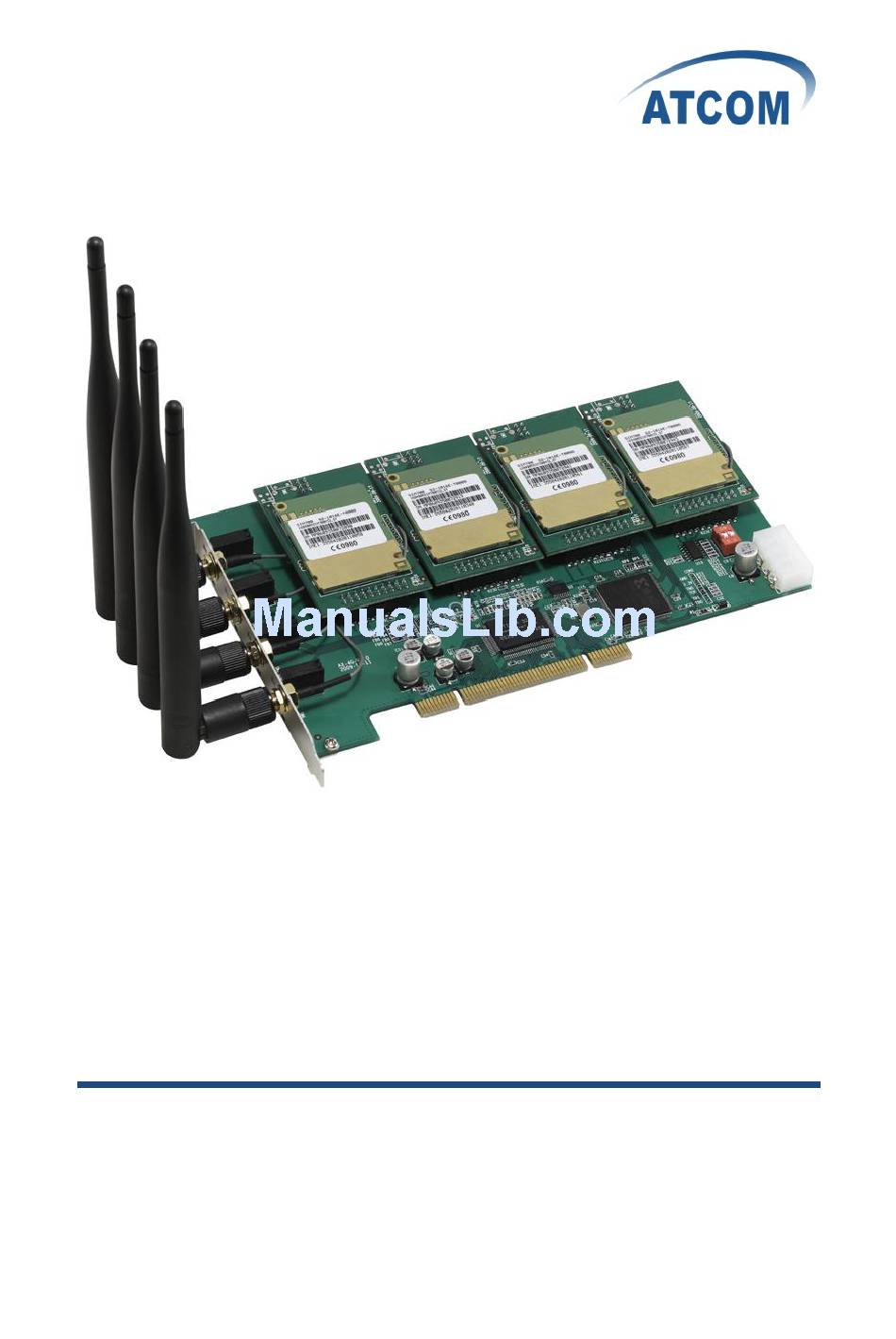

ATCOM
GSM Card AX-4G
Product Guide
Version: 2.0
Written by Robert.Ao
th
Dec 05
, 2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX-4G and is the answer not in the manual?

Questions and answers

Related Manuals for ATCOM AX-4G

Summary of Contents for ATCOM AX-4G

  • Page 1 ® ATCOM GSM Card AX-4G Product Guide Version: 2.0 Written by Robert.Ao Dec 05 , 2011...

  • Page 2: Table Of Contents

    Content CONTACT ATCOM ..........................2 CHAPTER 1 THE INTRODUCTION OF AX-4G ..................3 CHAPTER 2 HARDWARE INTRODUCTION .................... 5 CHAPTER 3 SOFTWARE INSTALLATION....................7 CHAPTER 4 SOFTWARE CONFIGURATION ................... 9 CHAPTER 5 TEST ..........................12 CHAPTER 6 SENDING AND RECEIVING SMS ..................15 CHAPTER 7 REFERENCE ........................

  • Page 3: Contact Atcom

    Contact ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card.

  • Page 4: Chapter 1 The Introduction Of Ax-4G

    Chapter 1 the Introduction of AX-4G Overview of the AX-4G AX-4G Asterisk card is the GSM channel PCI card that supports up to four GSM channels. Using AX-4G GSM card, open source Asterisk PBX and stand alone PC, users can create their...
  • Page 5 Measurement and Weight Inner box 221 * 142 * 62mm G.W./unit 0.25kg Card Size 196mm *115 mm Package Item Quantity AX-4G mother board GSM module (GX01) www.atcom.cn...

  • Page 6: Chapter 2 Hardware Introduction

    LED1 LED2 Switch 2 Antenna Interface TS01: Omnidirectional antenna GX01: Module1+Module2 Module1: Module1 is used to load Module2, and one Module1 supports one cell phone card slot. Module2: GSM/GPRS/EDGE 850/900/1800/1900MHz wireless module Slot: SIM card of cell phone slot www.atcom.cn...
  • Page 7 Switch 1: There are two ways to provide power feeding for AX-4G, customers can use PCI slot to give power feeding directly, in this situation, please turn the switch1 to 1 on and 2 off; customer can also give power feeding through 4 pin power connector, and in this situation, please turn the swith1 to 1 off and 2 on.

  • Page 8: Chapter 3 Software Installation

    To install asterisk and dahdi, we have to use “yum” command to install the following prerequisite packages: bison bison-devel zlib zlib-devel openssl openssl-devel gnutls-devel gcc gcc-c++ Download dahdi-linux, dahdi-tools, and asterisk Attention: please download dahdi-linux and asterisk from ATCOM website, because ATCOM has modified the source code for AX-4G. [root@localhost src]# wget http://chinavoipsupply.com:8080/downloads/TelephonyCard/drivers/AX2G4A_AX4G/asteris...
  • Page 9 3) [root@localhost dahdi-tools-2.3.0]# make 4) [root@localhost dahdi-tools-2.3.0]# make install 5) [root@localhost dahdi-tools-2.3.0]# make config Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.6.2.6.1.tar.gz 2) [root@localhost asterisk-1.6.2.6]# ./configure 3) [root@localhost asterisk-1.6.2.6]# make 4) [root@localhost asterisk-1.6.2.6]# make install 5) [root@localhost asterisk-1.6.2.6]# make samples www.atcom.cn...

  • Page 10: Chapter 4 Software Configuration

    2310670 2218516 IO-APIC-fasteoi ax4g/ax2g4a If you can not see ax4g, you can try to poweroff your server and replug AX-4G into another PCI slot. 2. Please run the “dahdi_genconf” command to configure the /etc/dahdi/system.conf file and generate /etc/asterisk/dahdi-channels.conf file. [root@localhost ~]# dahdi_genconf It does not show any output if dahdi_genconf run successfully.
  • Page 11 After running dahdi_genconf successfully, the dahdi-channels.conf file will get the following configuration: ; Span 1: WCTDM/4 "ATCOM AX4G Board 5" (MASTER) ;;; line="1 WCTDM/4/0 FXSKS (SWEC: MG2)" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 1 callerid= group= context=default ;;; line="2 WCTDM/4/1 FXSKS (SWEC: MG2)"...
  • Page 12 6. Please run dahdi show channels command You should see 4 channels as the following: *CLI> dahdi show channels Chan Extension Context Language MOH Interpret Blocked State pseudo default default Service from-pstn default Service from-pstn default Service from-pstn default Service from-pstn default Service *CLI> www.atcom.cn...

  • Page 13: Chapter 5 Test

    3. Check when the called party answers the call, when you dial-out through AX-4G. Please use dmesg command to detect if the called party answers the call when you dail-out through AX-4G, if the called party has answered the call, after running dmesg command, you can get one line with PR, X stands for the channel number.
  • Page 14 1 355842020257974 gsm set imei cardnum=1 value=355842020257974 gsm set imei ok Edit a dial-plan, and use AX-4G to make outgoing calls and get incoming calls. 8. Please edit a dial-plan in extensions.conf file, you can refer to the following dial-plan: [from-internal] exten=>_1.,1,Dial(dahdi/1/${EXTEN:1})
  • Page 15 -- Executing [s@from-pstn:1] Answer("DAHDI/1-1", "") in new stack -- Executing [s@from-pstn:2] Dial("DAHDI/1-1", "sip/500") in new stack == Using SIP RTP CoS mark 5 -- Called 500 -- SIP/500-00000004 is ringing -- SIP/500-00000004 answered DAHDI/1-1 ---------------------------------------------------------------------------------------------------------------------- Customer can test other three channels in the same way. www.atcom.cn...

  • Page 16: Chapter 6 Sending And Receiving Sms

    Chapter 6 Sending and Receiving SMS There are three ways for users to send SMS by ATCOM AX4G. 1. Sending SMS by asterisk CLI command directly. Before sending SMS, customer should register a sip phone. 600 is a sip user, 13728737752 is...
  • Page 17 ATCOM!) (Retry 1) -- Launching queuesms(dahdi/1,15012871900&13728731752,hello! welcom to ATCOM!) on type/data-00000001 [Sep 9 16:08:23] NOTICE[3823]: pbx_spool.c:531 attempt_thread: Call completed to sms/ -- Launching DoSms(15012871900&13728731752 hello! welcom to ATCOM!) on DAHDI/1-1 [Sep 16:08:27] NOTICE[3825]: chan_dahdi.c:18205 sms_queue_send: sessionid=1315555703.3 channum=1 time=2011/09/09 16:08:27 send to called=15012871900...

  • Page 18: Chapter 7 Reference

    Chapter 7 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
