ATCOM AXE1DL + EC32L User Manual

Digital card axe1dl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

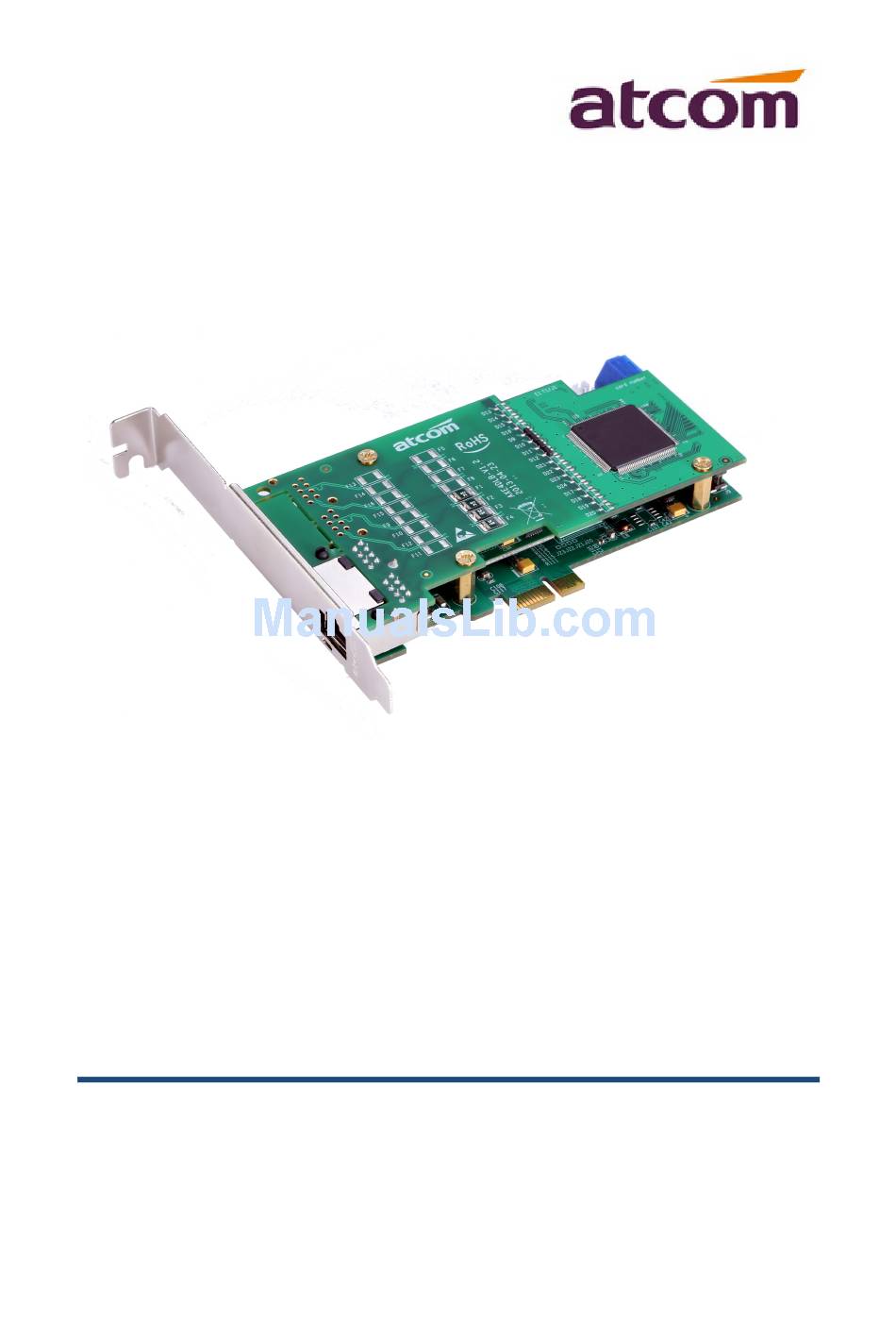

AXE1DL + EC32L
ATCOM
Digital Card AXE1DL
®

User Manual

Version: 1.0
2013-07-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXE1DL + EC32L and is the answer not in the manual?

Questions and answers

Related Manuals for ATCOM AXE1DL + EC32L

Summary of Contents for ATCOM AXE1DL + EC32L

  • Page 1: User Manual

    AXE1DL + EC32L ATCOM Digital Card AXE1DL ® User Manual Version: 1.0 2013-07-03...

  • Page 2: Table Of Contents

    AXE1DL User Manual with DAHDI Content CHAPTER 1 THE INTRODUCTION OF AXE1DL....................3 CHAPTER 2 HARDWARE INTRODUCTION....................5 CHAPTER 2 TEST ENVIRONMENT.......................8 CHAPTER 3 SOFTWARE INSTALLATION......................9 CHAPTER 4 SOFTWARE CONFIGURATION....................11 CHAPTER 5 TEST............................14 CHAPTER 6 REFERENCE..........................16 www.atcom.cn...

  • Page 3: Contact Atcom

    Contact ATCOM The Introduction of ATCOM ATCOM is the leading VoIP hardware manufacturer in global market. We have been keeping innovating with customer’s needs oriented , working with partners to establish a total solution for SMB VoIP with IP phone , IP PBX and Asterisk cards.

  • Page 4: Chapter 1 The Introduction Of Axe1Dl

    1024 taps/128 ms tail per channel on all channel densities DTMF decoding and tone recognition Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction Does not increase the physical size of the card, and no additional slot is required www.atcom.cn...

  • Page 5: Hardware Requirement

    AXE1DL User Manual with DAHDI Voice Modes PRI CPE and PRI NET: EuroISDN 4ESS(AT&T) 5ESS(Lucent) DMS100 Hardware Requirement 1.6-Ghz Pentium IV 512 MB RAM PCI-E slot AXE4DL Dimension 120mm (Length)*64mm (height) Operating System Linux (all versions, releases and distributions from 1.0 up) www.atcom.cn...

  • Page 6: Chapter 2 Hardware Introduction

    AXE1DL User Manual with DAHDI Chapter 2 Hardware Introduction AXE1DL The Front View of EC32L www.atcom.cn...
  • Page 7 For example: if users have two cards in the server, then turn it to 0 in the one card, and turn it to 1 in the other card; If users have four cards in the server simultaneously, then turn it to 0,1,2,3 respectively. www.atcom.cn...
  • Page 8 Delete the echo for the local side Delete the echo for the far end side C3: It is not available. Notice: The daughterboard is very similar between the AXE2DL and AXE1DL card. Users can get the difference from the following illustration. AXE2DL daughterboard AXE1DL daughterboard www.atcom.cn...

  • Page 9: Chapter 2 Test Environment

    AXE1DL User Manual with DAHDI Chapter 2 Test Environment Test Environment: Libpri-1.4.7 dahdi-linux-complete-2.6.2+2.6.2 (Download from ATCOM download center) asterisk-1.8.7.0 Centos6.0 (kernel version: 2.6.32-279.22.1.el6.i686) AXE1DL+EC64L www.atcom.cn...

  • Page 10: Chapter 3 Software Installation

    [root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/libpri/libpri-1.4.14.tar.gz [root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-1.8.7.0.tar.gz Notice: If the download link is unavailable, uses need get the latest driver from ATCOM download center: http://www.atcom.cn/dl_axe1dl.html. For example, users can get the dahdi-2.6 as the following: [root@localhost src]# wget http://www.atcom.cn/cn/download/cards/ax1d/dahdi-linux-complete-2.6.1+2.6.1-1.2.tar.gz www.atcom.cn...
  • Page 11 1) [root@localhost src]# tar -xvzf asterisk-1.8.7.0.tar.gz 2) [root@localhost asterisk-1.8.7.0]# ./configure 3) [root@localhost asterisk-1.8.7.0]# make 4) [root@localhost asterisk-1.8.7.0]# make install 5) [root@localhost asterisk-1.8.7.0]# make samples Notice: if uses run the command: “make samples”, all the asterisk configuration files will be set as the samples. www.atcom.cn...

  • Page 12: Chapter 4 Software Configuration

    ; to be #include-d by /etc/chan_dahdi.conf that will include the global settings ; Span 1: AXE1DL/0/1 "AXE1DL (E1|T1) Card 0 Span 1" (MASTER) group=0,11 context=from-pstn switchtype = euroisdn signalling = pri_cpe channel => 1-15,17-31 context = default group = 63 www.atcom.cn...
  • Page 13 So please disable the software echo cancellation when users use the hardware cancellation. localhost*CLI> dahdi show channel 1 Channel: 1 File Descriptor: 17 Span: 1 Extension: 300 Dialing: no Context: from-pstn Caller ID: 900 Calling TON: 33 Caller ID name: 900 Mailbox: none Destroy: 0 InAlarm: 0 www.atcom.cn...
  • Page 14 DSP: yes Busy Detection: no TDD: no Relax DTMF: no Dialing/CallwaitCAS: 0/0 Default law: alaw Fax Handled: no Pulse phone: no DND: no Echo Cancellation: 128 taps currently ON Wait for dialtone: 0ms PRI Flags: Call PRI Logical Span: Implicit www.atcom.cn...

  • Page 15: Chapter 5 Test

    PRI span 1/0: Up, Active PRI span 2/0: Up, Active Add the dial plan for the PBX Please edit the dial-plan in the “extensions.conf” file, users can refer to the following example. [from-internal] exten=>_1.,1,Dial(dahdi/i1/${EXTEN:1}) exten=>_1.,2,Hangup() [from-pstn] exten=>s,1,Answer() exten=>s,2,Dial(sip/500) exten=>s,3,hangup() www.atcom.cn...
  • Page 16 -- Executing [s@from-pstn:1] Answer("DAHDI/1-1", "") in new stack -- Executing [s@from-pstn:2] Dial("DAHDI/1-1", "sip/500") in new stack == Using SIP RTP CoS mark 5 -- Called 500 -- SIP/500-00000004 is ringing -- SIP/500-00000004 answered DAHDI/1-1 ---------------------------------------------------------------------------------------------------------------- Users can test other three ports in the same way. www.atcom.cn...

  • Page 17: Chapter 6 Reference

    AXE1DL User Manual with DAHDI Chapter 6 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.atcom.cn/ www.atcom.cn...
