ATCOM AXE4BL Product Manual

Digital card axe4bl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AXE4BL
ATCOM

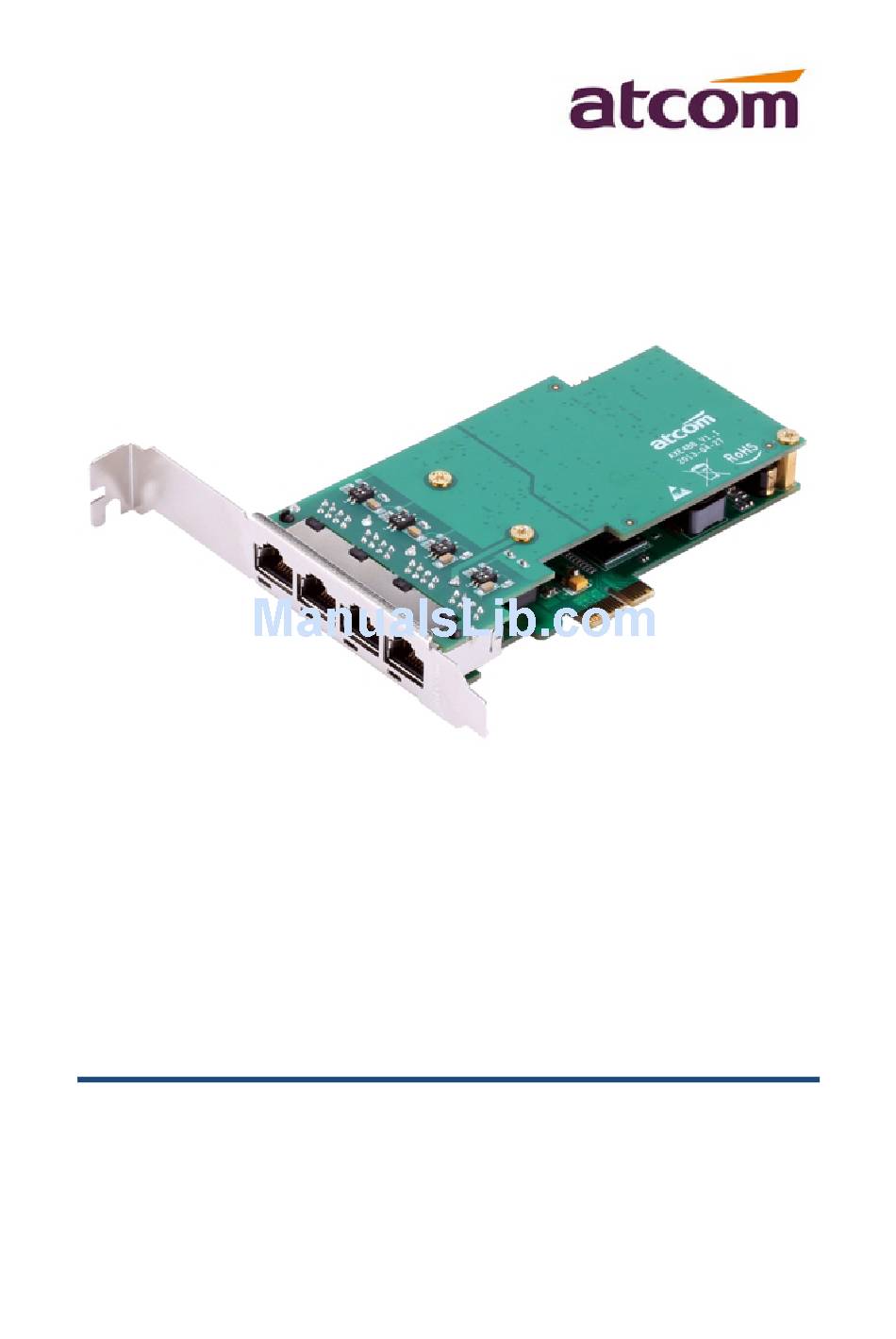

Digital Card AXE4BL
®
Product Guide
Version: 1.1
2013-08-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXE4BL and is the answer not in the manual?

Questions and answers

Related Manuals for ATCOM AXE4BL

Summary of Contents for ATCOM AXE4BL

  • Page 1 AXE4BL ATCOM Digital Card AXE4BL ® Product Guide Version: 1.1 2013-08-23...

  • Page 2: Table Of Contents

    AXE4BL User Manual with DAHDI Content CHAPTER 1 THE INTRODUCTION OF AXE4BL.................... 1 CHAPTER 2 HARDWARE INTRODUCTION....................2 CHAPTER 3 TEST ENVIRONMENT.......................4 CHAPTER 4 SOFTWARE INSTALLATION......................5 CHAPTER 5 SOFTWARE CONFIGURATION....................7 CHAPTER 6 TEST............................10 CHAPTER 7 REFERENCE..........................11 www.atcom.cn...

  • Page 3: Contact Atcom

    Contact ATCOM The Introduction of ATCOM ATCOM is the leading VoIP hardware manufacturer in global market. We have been keeping innovating with customer’s needs oriented , working with partners to establish a total solution for SMB VoIP with IP phone , IP PBX and Asterisk cards.

  • Page 4: Chapter 1 The Introduction Of Axe4Bl

    AXE4BL Asterisk card is the telephony PCI-E card which supports four ISDN BRI ports. Using AXE4BL digital BRI card, open source Asterisk PBX and stand alone PC, users can create their IP PBX telephony solution included all the sophisticated features of traditional PBX, and extended features such as voicemail in IP PBX.

  • Page 5: Chapter 2 Hardware Introduction

    AXE4BL User Manual with DAHDI Chapter 2 Hardware Introduction TE/NT Setting: Each port can work in TE or NT mode independently. By default, all of the ports are set to TE mode, because the telecom side always use NT mode, and users should use TE mode.
  • Page 6 AXE4BL User Manual with DAHDI To set up the C1 component, customer should use a jumper to connect two pins, the 1,2,3,4 are used to set port1, port2, port3, port4 orderly and independently. If users do not use ISDN phone, please do not set the C1 component.

  • Page 7: Chapter 3 Test Environment

    AXE4BL User Manual with DAHDI Chapter 3 Test Environment Test Environment: Libpri-1.4.7 dahdi-linux-complete-2.6.2+2.6.2 asterisk-1.8.7.1 Centos6.0 (kernel version: 2.6.32-279.22.1.el6.i686) AXE4BL www.atcom.cn...

  • Page 8: Chapter 4 Software Installation

    AXE4BL User Manual with DAHDI Chapter 4 Software Installation After inserting the card into the PCI-E slot and boot the server, please use the “lspci” command to check the PCI-E bus compatibility. From the correct output, users can see the following line: ---------------------------------------------------------------------------------------------------------------------- 01:05.0 ISDN controller: Cologne Chip Designs GmbH ISDN network Controller [HFC-4S] (rev...
  • Page 9 AXE4BL User Manual with DAHDI Install libpri [root@localhost src]# tar -xvzf libpri-1.4.12.tar.gz [root@localhost libpri-1.4.12]# make [root@localhost libpri-1.4.12]# make install Install dahdi-linux-complete [root@localhost src]# tar -xvzf dahdi-linux-complete-2.6.2+2.6.2.tar.gz [root@localhost src]# cd dahdi-linux-complete-2.5.0.1+2.5.0.1 [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make install [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make config Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.8.7.1.tar.gz...

  • Page 10: Chapter 5 Software Configuration

    AXE4BL User Manual with DAHDI Chapter 5 Software Configuration 1. Please use cat /proc/interrupts command to check if the driver of AXE4BL is loaded or not, if the AXE4BL driver is loaded correctly, users can get one line with wcb4xxp...
  • Page 11 AXE4BL User Manual with DAHDI After running dahdi_genconf successfully, the dahdi-channels.conf file will get the following configuration: /etc/asterisk/dahdi-channels.conf file: ; Span 1: B4/0/1 "B4XXP (PCI) Card 0 Span 1" (MASTER) RED group=0,11 context=from-pstn switchtype = euroisdn signalling = bri_cpe_ptmp channel => 1-2...
  • Page 12 AXE4BL User Manual with DAHDI 3. Please add the following line in the end of chan_dahdi.conf file #include dahdi-channels.conf 4. Please run asterisk with the following command: *CLI> asterisk *CLI> asterisk -vvvgrc *CLI> reload 5. Please run dahdi show channels command users should get the following channels: *CLI>...

  • Page 13: Chapter 6 Test

    AXE4BL User Manual with DAHDI Chapter 6 Test LED: If the driver of the card is loaded correctly and the /etc/dahdi/system.conf file is configured correctly, the LED of the four ports will be red clearly; If the BRI line is connected correctly, and it synchronizes to the other end successfully, then the LED will be green clearly.

  • Page 14: Chapter 7 Reference

    AXE4BL User Manual with DAHDI Chapter 7 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.atcom.cn/ www.atcom.cn...
