ATCOM AX-2G4A Product Manual

Hybrid card
Hide thumbs Also See for AX-2G4A:

Advertisement

Quick Links

Download this manual See also: User Manual
ATCOM
Hybrid
ATCOM
ATCOM
ATCOM
® ® ® ®
Hybrid
Hybrid Card
Hybrid
Product
Product
Guide
Guide
Product
Product Guide
Guide
Version: 2.1
Written by Robert.Ao
th
July 7
, 2012
Card
AX-
2G4A
Card
Card AX-
AX-2G4A
AX-
2G4A
2G4A

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX-2G4A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATCOM AX-2G4A

Summary of Contents for ATCOM AX-2G4A

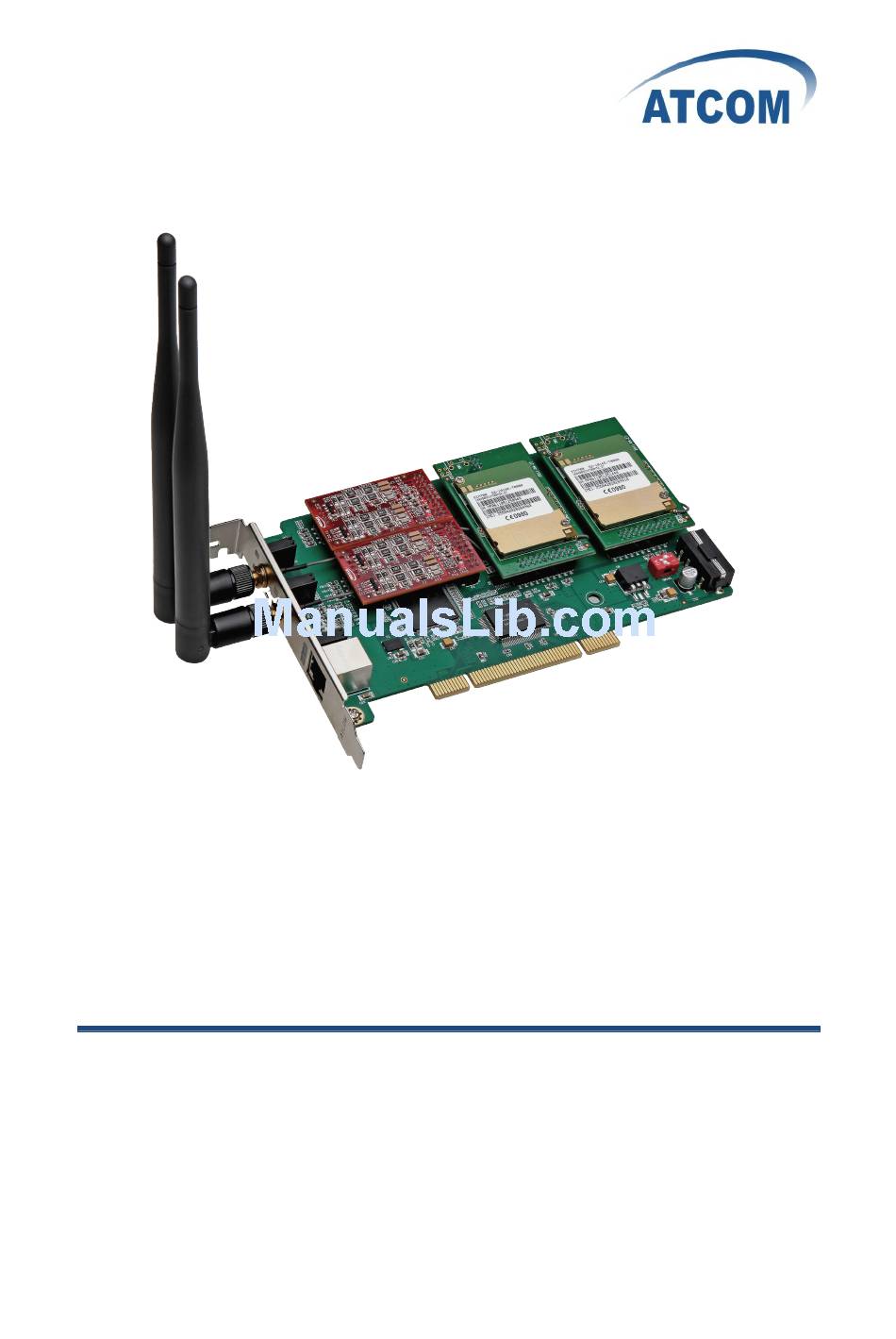

  • Page 1 ATCOM Hybrid Card 2G4A ATCOM ATCOM ATCOM ® ® ® ® Hybrid Hybrid Hybrid Card Card Card AX- AX-2G4A 2G4A 2G4A Product Product Guide Guide Product Product Guide Guide Version: 2.1 Written by Robert.Ao July 7 , 2012...
  • Page 2 ............................CHAPTER CHAPTER 1 1 1 1 THE INTRODUCTION AX-2G4A ..................3 3 3 3 CHAPTER CHAPTER THE INTRODUCTION INTRODUCTION INTRODUCTION OF OF AX-2G4A AX-2G4A AX-2G4A......................................................CHAPTER CHAPTER CHAPTER 2 2 2 2 HARDWARE HARDWARE HARDWARE INTRODUCTION INTRODUCTION ....................

  • Page 3: Contact Technical Support

    ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card.
  • Page 4 AX-2G4A AX-2G4A AX-2G4A Asterisk card is a hybrid card, which support two GSM channels and 4 FXO/FXS analog ports. Using AX-2G4A, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution which includes all the sophisticated features of traditional PBX, and extended features in IP PBX, such as voicemail, call transfer, call park, call pick up, call forward, bulk SMS sending, SMS receiving and so on.
  • Page 5 AX-2 2 2 2 G G G G 4A mother board 4A mother mother mother board board board module (GX01) GSM module module module (GX01) (GX01) (GX01) D D D D ual ports ports analog analog module module ual ports ports analog analog module module www.atcom.cn...
  • Page 6 Attention: In order to enhance the GSM signal in some hard environment, except the Antenna in the illustration above, ATCOM can also provide one other type of antenna(TL01) which has long cable(about one meter long) and can be connected to outside.
  • Page 7 LED22: Network status indicator of SIM card of the second channel. When the SIM card is searching network, the LED22 will blink fast; when the SIM card has found the GSM network and registered successfully, the LED22 will flip at lower frequency. Button: used for turning off the GX01. www.atcom.cn...

  • Page 8: Installation

    To install asterisk and dahdi, we have to use “yum” command to install the following prerequisite packages: bison bison-devel zlib zlib-devel openssl openssl-devel gnutls-devel gcc gcc-c++ Download dahdi-linux, dahdi-tools, and asterisk Attention: please download dahdi-linux and asterisk from ATCOM website, because ATCOM has modified the source code for AX-2G4A. [root@localhost src]# wget http://www.atcom.cn/cn/download/cards/ax4g/asterisk-1.6.2.6.9.tar.gz...
  • Page 9 3) [root@localhost dahdi-tools-2.3.0]# make 4) [root@localhost dahdi-tools-2.3.0]# make install 5) [root@localhost dahdi-tools-2.3.0]# make config Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.6.2.6.4.tar.gz 2) [root@localhost asterisk-1.6.2.6]# ./configure 3) [root@localhost asterisk-1.6.2.6]# make 4) [root@localhost asterisk-1.6.2.6]# make install 5) [root@localhost asterisk-1.6.2.6]# make samples www.atcom.cn...
  • Page 10 2310670 2218516 IO-APIC-fasteoi ax4g/ax2g4a If you can not see ax4g/ax2g4a, you can try to poweroff your server and replug AX-2G4A into another PCI slot. 2. Please run the “dahdi_genconf” command to configure the /etc/dahdi/system.conf file and generate /etc/asterisk/dahdi-channels.conf file. [root@localhost ~]# dahdi_genconf It does not show any output if dahdi_genconf runs successfully.
  • Page 11 After running dahdi_genconf successfully, the dahdi-channels.conf file will get the following configuration: ; Span 1: WCTDM/6 "ATCOM AX4G/AX2G4A Board 7" (MASTER) ;;; line="1 WCTDM/6/0 FXSKS (In use) (SWEC: MG2)" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 1 callerid= group= context=default ;;; line="2 WCTDM/6/1 FXSKS (In use) (SWEC: MG2)"...
  • Page 12 ;;; line="5 WCTDM/6/4 FXOKS (In use) (SWEC: MG2)" signalling=fxo_ks callerid="Channel 5" <4005> mailbox=4005 group=5 context=from-internal channel => 5 callerid= mailbox= group= context=default ;;; line="6 WCTDM/6/5 FXOKS (In use) (SWEC: MG2)" signalling=fxo_ks callerid="Channel 6" <4006> mailbox=4006 group=5 context=from-internal channel => 6 callerid= mailbox= group= context=default www.atcom.cn...
  • Page 13 Chan Extension Context Language MOH Interpret State pseudo default default In Service from-pstn default In Service from-pstn default In Service from-pstn default In Service from-pstn default In Service from-internal default In Service from-internal default In Service localhost*CLI> www.atcom.cn...
  • Page 14 8. Set the billing function would like billing function, edit file: /etc/asterisk/dahdi-channels.conf, and enable the two parameters: answeronpolarityswitch=yes, polarityonanswerdelay= 300 Then, you can open the CRBT( Color Ring Back Tone ), after you enable the parameter: prematuremedia=no in the file:/etc/asterisk/sip.conf www.atcom.cn...
  • Page 15 9: it means that the channel is in communication status, and the call has been established really. 2. Please check the network signal of the cell phone card plugged in the AX-2G4A, type the following command three times, the result of the third time is correct:...
  • Page 16 1 355842020257974 gsm set imei cardnum=1 value=355842020257974 gsm set imei ok Edit a dial-plan, and use AX-2G4A to make outgoing calls and get incoming calls. 8. Please edit a dial-plan in extensions.conf file, you can refer to the following dial-plan: [from-internal] exten=>_1.,1,Dial(dahdi/1/${EXTEN:1})
  • Page 17 -- SIP/500-00000004 answered DAHDI/1-1 ---------------------------------------------------------------------------------------------------------------------- 11. Plugging PSTN line into the FXO ports, customer can dial-out via FXO ports. Connecting analog phone to FXS ports, customer can use analog phone to dial-out via FXO ports or via GSM channels. www.atcom.cn...
  • Page 18 Sending and and Receiving Receiving SMS There are two ways for users to send SMS by ATCOM AX-2G4A. 1. Sending SMS by asterisk CLI command directly. In the following example, it sends a message to 13728737752 using the first channel: localhost*CLI>...

  • Page 19: Receiving Sms

    ATCOM!) (Retry 1) -- Launching queuesms(dahdi/1,15012871900&13728731752,hello! welcom to ATCOM!) on type/data-00000001 [Sep 9 16:08:23] NOTICE[3823]: pbx_spool.c:531 attempt_thread: Call completed to sms/ -- Launching DoSms(15012871900&13728731752 hello! welcom to ATCOM!) on DAHDI/1-1 [Sep 16:08:27] NOTICE[3825]: chan_dahdi.c:18205 sms_queue_send: sessionid=1315555703.3 channum=1 time=2011/09/09 16:08:27 send to called=15012871900...
  • Page 20 C C C C hapter hapter hapter hapter 7 7 7 7 Reference Reference Reference Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
