Internet Fax Option Setup Guide
Models 5000 and 3500
ifax.doc 11/29/02

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3500 and is the answer not in the manual?

Questions and answers

Related Manuals for imagistics 3500

Summary of Contents for imagistics 3500

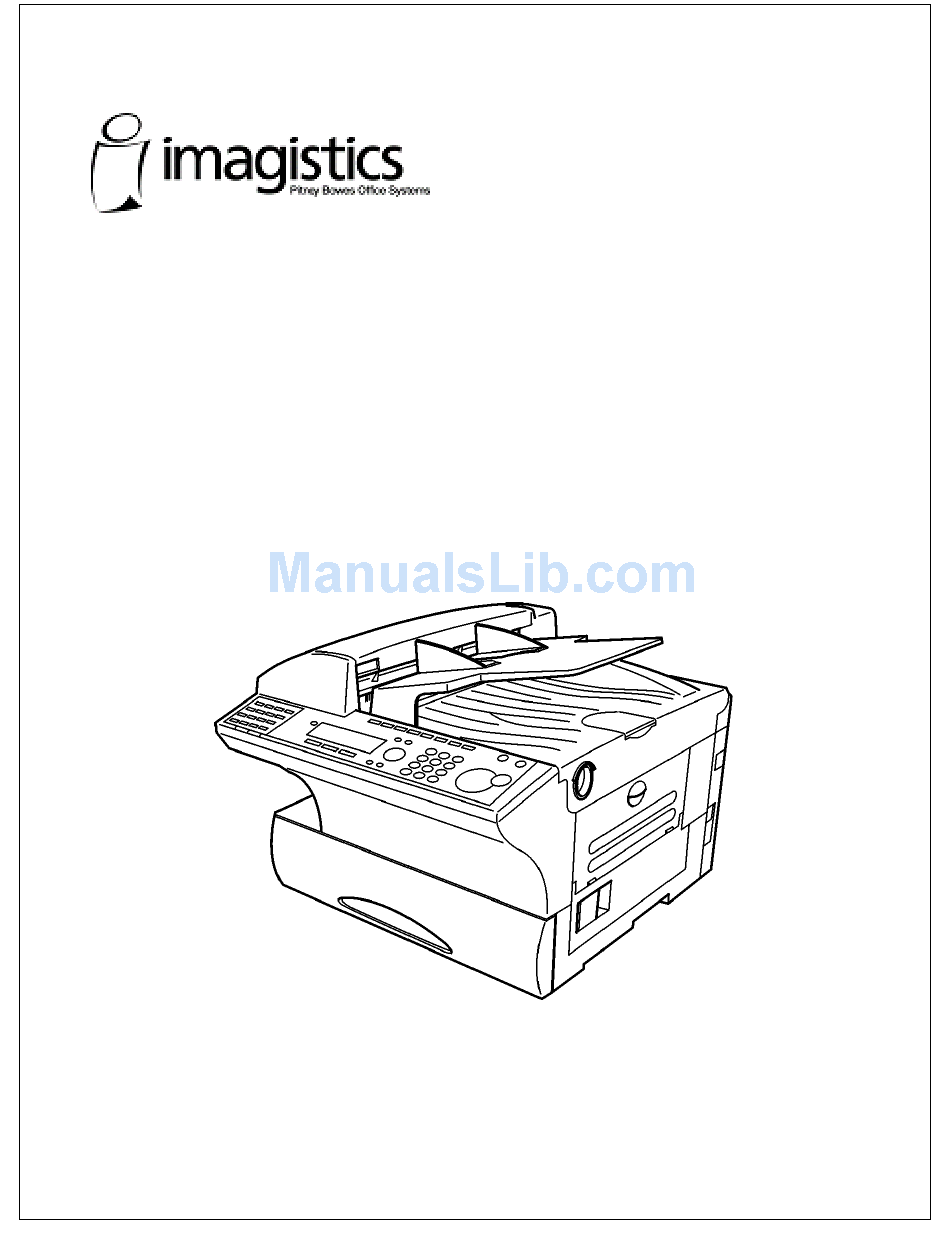

  • Page 1 Internet Fax Option Setup Guide Models 5000 and 3500 ifax.doc 11/29/02...
  • Page 2 Table of Contents Internet Communication Illustration..……………………………….Page One Installing the Internet Board (Part # (6429769)……………………Page Two Installing the Internet Board (Part # (6429769) to a machine which has the PCL Option (6429760) installed. (AC Adapter 6429770 required for I’F Kit when PCL Kit is installed)……………………Page Five Attaching the Internet Fax Kit to a machine which has a PCL Option (6429760) and a Second Line Option (6429764) installed.
  • Page 4 Installing the Internet Fax board (Attaching Internet Fax Kit only) Part # - 6429769 Note: Make sure to turn off the fax machine before proceeding with the following steps. 1. Confirm the Jumper pin is located on the INT. (Internal power supply) position. INT.
  • Page 5 4. Connect one end of the connection cable to the P14A on the main board. And pass the other end of the connection cable through the machine’s frame. 5. Plug the CONNECTION CABLE to the IN connector on the Internet Fax board. Then insert the Internet Fax board into the right slot.
  • Page 6 7 Re-attach the SHIELD PLATE and the REAR COVER you have removed in step 3. 8 Attach the OPTION COVER C. 9 Connect the Ethernet cable to the Internet Fax network port.
  • Page 7 Installing the Internet Fax board (# 6429769) Attaching the Internet Fax Board to a machine which has the PCL Option (# 6429760) installed. (AC Adapter 6429770 needed for I/F Kit when PCL Kit is installed) Note: Make sure to turn off the fax machine before proceeding with the following steps. 1.
  • Page 8 5. Reattach the REAR COVER as shown below. 6. Attach the Box panel to the bottom chassis, and then attach Blind label to the position shown in the illustration below. Attach the four Angle plates. Box panel Blind label 7. Attach the Internet Fax chassis to the rear cover.
  • Page 9 8. Confirm the Jumper pin is located on the EXT. (External power supply) position. INT. EXT. 9 Connect the connection cable of the Internet Fax to IN connector on the Internet Fax board. Connect the PCL connection cable to OUT connector on the Internet Fax board. Then attach the Internet Fax board to the chassis using three screws.
  • Page 10 Attach the ferrite core to the DC cable of the AC adapter, as shown. 12 Connect the DC cable to the DC jack. Connect the Ethernet cable to the Internet Fax network port. Attach the ID label to the bottom chassis. ID Label...
  • Page 11 Installing the Internet Fax board (# 6429769) AC Adapter (# 6429770) Attaching the Internet Fax Kit to the machine which has installed an PCL Option (# 6429760) and a Second Line Option (# 6429764). Note: Make sure to turn off the fax machine before proceeding the following steps. 1.
  • Page 12 4. Connect the connection cable of the 2 Phone Line to the IN connector on the Internet Fax board. Connect the connection cable from the IN connector on the 2 Phone Line board to the OUT connector on the Internet Fax board.
  • Page 13 Attach the ferrite core to the DC cable of the AC adapter, as shown. 8.Connect the DC cable to the DC jack. Connect the Ethernet cable to the Internet Fax Kits network port. Attach the ID label to the bottom chassis.

  • Page 14: Pre-Installation Information

    Pre – Installation information For the total system to work properly via LAN, certain information must be set in advance. Please contact the network administrator for the necessary information. Internet Parameters IP Address Subnet Mask SMTP Server Name or IP Address Default Gateway IP Address E-Mail Address...
  • Page 15 Glossary IP Address - A unique number used to identify device or host computers on the Internet. Subnet Mask - The net mask used to manage sub-segments of the network. Once a packet has arrived at an organization's gateway or connection point with its unique network number, it can be routed within the organization's internal gateways using the subnet number as well.

  • Page 16: Administrator Registration

    Internet Installation Procedures Carry out registrations in accordance with the following procedures: Internet Fax User Manual (FX 30083) Time Zone is required as part of the E-Mail Header Time zone setting information when sending Internet faxes. ↓ See page 1.4 The Internet parameters for Internet Fax Kit can be entered from the Web browser (Internet Explorer 4.0 or Netscape Communicator 4.5 or later).
