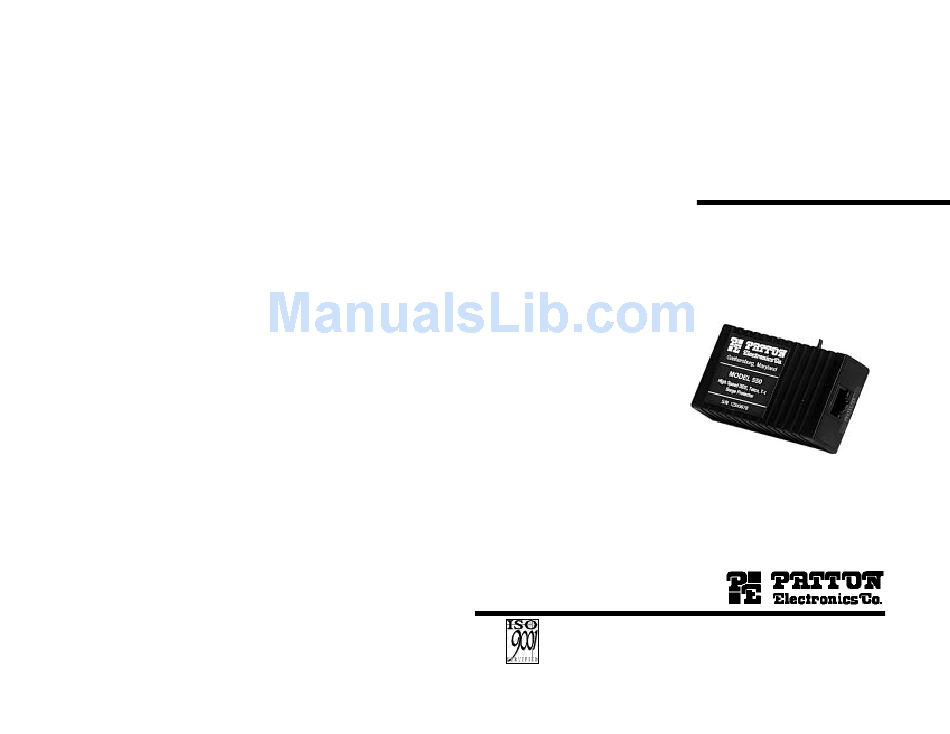

- Page 1 USER MANUAL MODEL 550 Series High Speed Telco Surge Protectors SALES OFFICE Part# 07M550-C1 Doc# 074070U-C (301) 975-1000 Revised 11/13/96 TECHNICAL SUPPORT C E R T I F I E D (301) 975-1007 An ISO-9001 http://www.patton.com Certified Company...
- Page 2 (1.2/50µS), and can withstand an AC power RMA number will not be accepted. fault of 600 volts. The Model 550 series is UL497A listed as a secondary protector; the series provides full protection against AC power crosses.
- Page 3 4.0 INSTALLATION APPENDIX A SPECIFICATIONS The Patton Model 550 Series is easy to install. The following instructions clearly explain each step. Category: UL listed secondary protector according to UL497A Interface: Dial-up, leased line, DDS or T-1, depending upon model NOTE: Make sure you follow the installation instructions exactly; if...
- Page 4 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
