Summary of Contents for Patton electronics 571

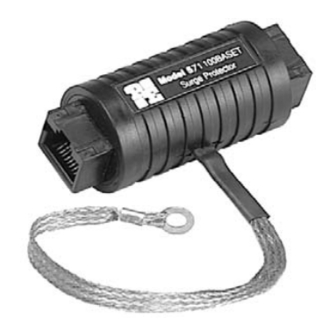

- Page 1 Part# 07M571/581-A Doc# 074300U, Rev. B C E R T I F I E D Revised 1/22/08 An ISO-9001 Certified Company USER MANUAL MODEL 571/581 100Base-T (CAT-5) Surge Protectors SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007 http://www.patton.com...
-
Page 2: Warranty Information
Notice: Packages received without an RMA number will not be accepted. Patton Electronics' technical staff is also available to answer any questions that might arise concerning the installation or use of your Model 571/581. Technical Service hours: 8AM to 5PM EST, Monday through Friday. -
Page 3: General Information
IEC 801.5 surges applicable to their use (see the tables in Appendix B). Both the 571 and 581 will additionally protect against surges up to and exceeding 2kV/1kA in fail-safe mode. -
Page 4: Installation
3.1 PRODUCT APPLICATIONS Both Models 571 and 581 protect 4 pins on the modular RJ-45 Cat- 5 interface, and work in environments with data rates up to 100 Mbps. The following descriptions will give you a general guideline for installing the units in your Cat-5 environment. -
Page 5: Installation Procedures
3.1.2 BARRIER APPLICATION (MODEL 581) The Model 581 is a more robust protector than the Model 571, and is designed for use as a barrier protector on LAN equipment in campus networks. Applications include cable runs between buildings, cable runs between floors on multi-story structures, and as a higher capacity replacement for the Model 571. - Page 6 2. Install the Model 571/581 between the incoming UTP line and the protected equipment (see Figure 3, below). This installation requires a straight through Cat-5 patch cable with modular RJ-45 connectors (supplied with unit). Note: The Model 571/581 provides bi-directional clamping protection.
- Page 7 2. Install the Model 581 between the UTP line and the jack. This installation requires a straight through Cat-5 patch cable with modular RJ-45 connectors (supplied with unit). Note: The Model 571/581 provides bi-directional clamping protection. Therefore, the network and equipment cables may be connected to either end.
- Page 8 RJ-45 Female Clamped to 13 V after 0.1 μs 100 Ohms Model 571 - worst pair Better than -45 dB at 100 MHz; Model 581 - worst pair Better than -43 dB at100 MHz Model 571 - 13 V max with 1 KV Input;...
- Page 9 CE mark. *Note: All test results are for the Model 571/581 alone, not including the standard 6 inch (15.25) patch cable that is shipped with the unit.
- Page 10 EIA/TIA TSB-40A COMPLIANCE The Model 571/81 series surge protectors have been designed to conform to stringent EIA/TIA TSB-40 standards as required for all Category-5 connecting hardware. These standards specify the capacitance and near end cross-talk (N.E.X.T) to insure proper operation of ALL connected equipment. Specific test results are shown in the tables on the following pages*.
- Page 11 APPENDIX B (Continued) EIA/TIA TSB-40A COMPLIANCE TSB-40A COMPLIANCE TESTING RESULTS TYPICAL NEAR-END CROSSTALK MEASUREMENT...
- Page 12 APPENDIX B (Continued) TSB-40A COMPLIANCE TESTING RESULTS TYPICAL RETURN LOSS MEASUREMENT Copyright © Patton Electronics Company All Rights Reserved...
- Page 13 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
