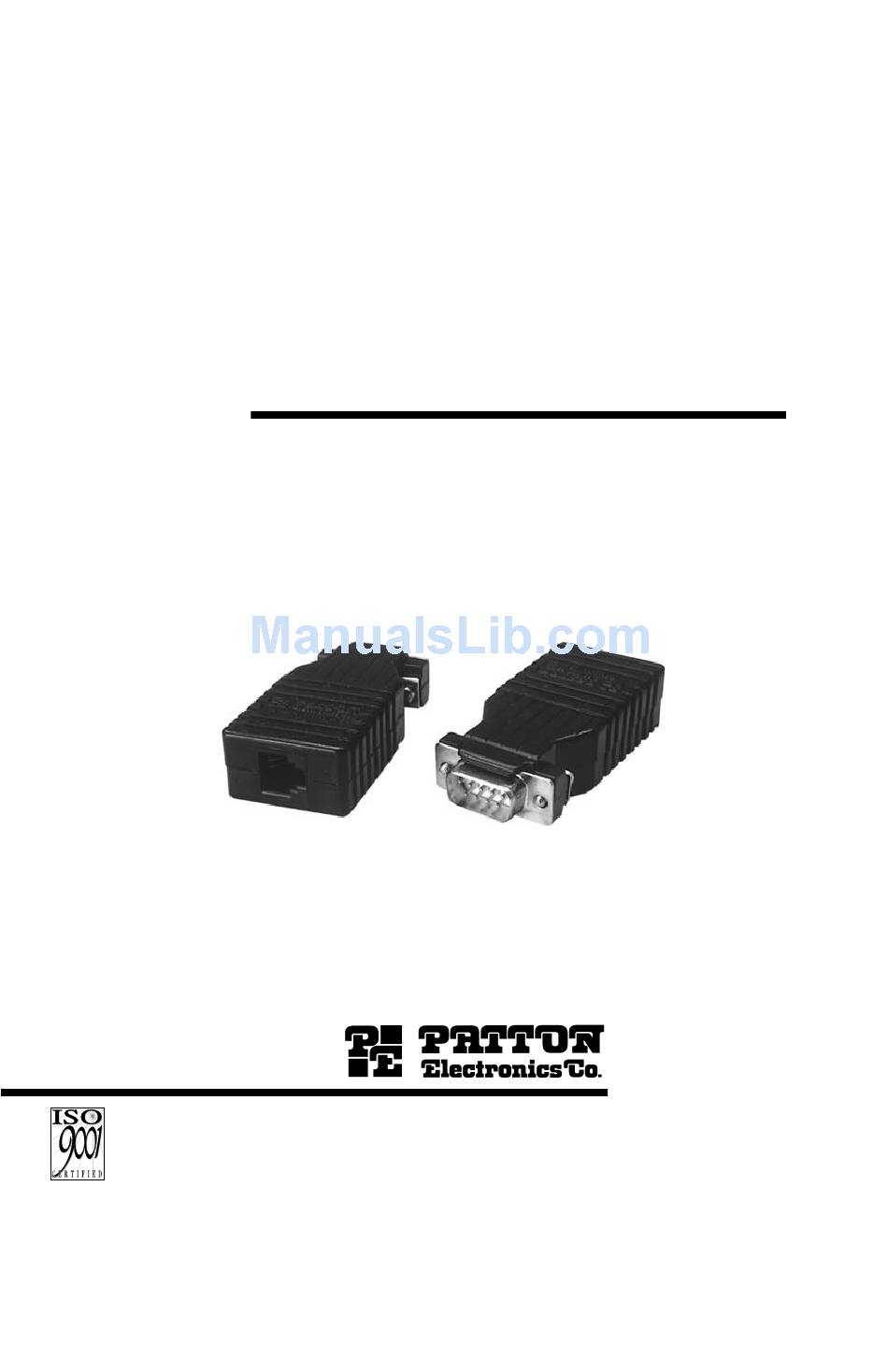

- Page 1 USER MANUAL MODEL 506 & 507 Surge Protected DB-9 to Modular Adapters SALES OFFICE Part #07M506/507-B Doc. #019061U (301) 975-1000 Rev. C TECHNICAL SUPPORT Revised 1/21/08 C E R T I F I E D (301) 975-1007 An ISO-9001 http://www.patton.com...
-
Page 2: Radio And Tv Interference
1.1 RADIO AND TV INTERFERENCE The Model 506 & 507 Series units generate and use radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television reception. - Page 3 NOTE: Packages received without an RMA number will not be accepted. Patton Electronics' technical staff is also available to answer any questions that might arise concerning the installation or use of your Patton Model 506 & 507. Technical Service hours: 8AM to 5PM EST, Monday through Friday.
-
Page 4: General Information
Up to 1500 Watts of surge protections per modular pin is provided. On the Models 506, an RJ-11 jack is used, and up to 6 pins may be protected. On the Model 507, an RJ-45 jack is used, and up to 8 pins may be protected. -
Page 5: Installation
3) Plug your modular cable into the jack on the Model 506 or 507. If you have a Model 506, the cable must be terminated with an RJ-11 plug. If you have a Model 507, the cable must be terminated with an RJ-45 plug. - Page 6 APPENDIX A MODEL 506 & 507 SPECIFICATIONS Peak Power Dissipation: 1500W, 10 x 1000μSec in Compliance with IEC 801-5 Level 3, 2kV (Models 506F/25, 506M/25, 507F/25, 507M/25, 507X) Response Time: (RS-232) Clamped to ± 27V after 0.5μsec. (RS-422) Clamped to ± 6.8V after 0.5μsec.
- Page 8 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
