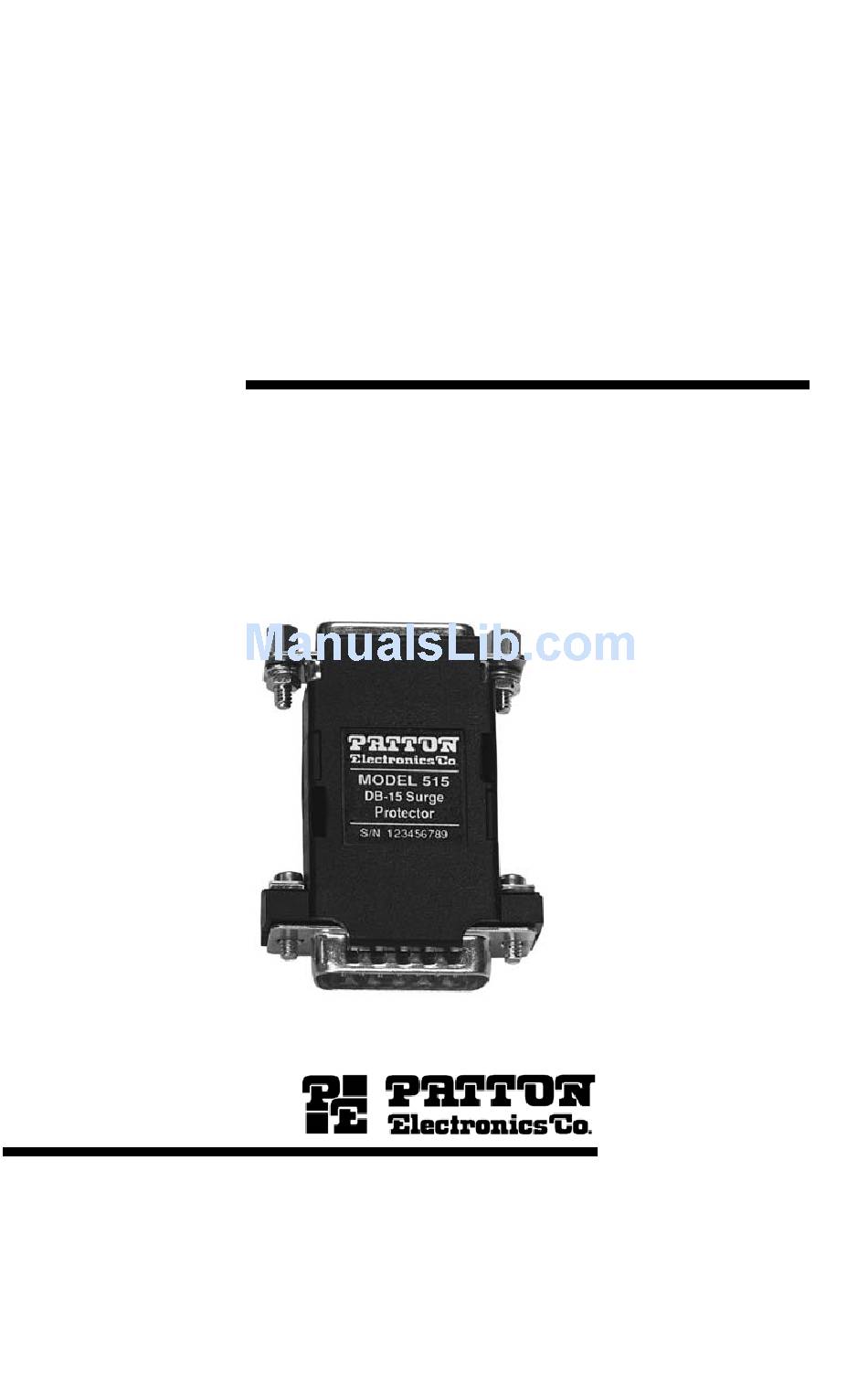

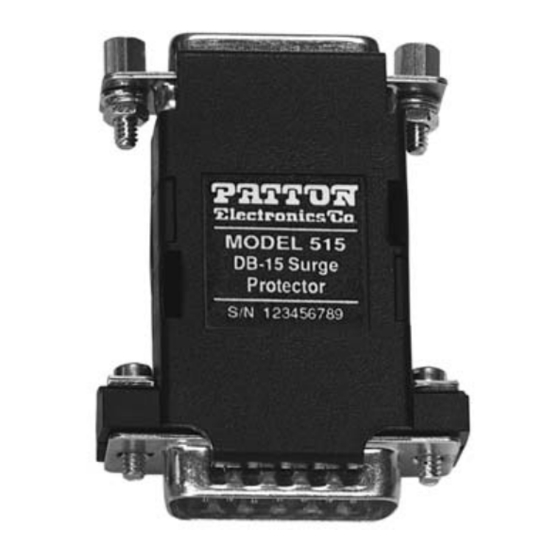

- Page 1 USER MANUAL MODEL 515 DB-15 Surge Protector SALES OFFICE Part# 07M515-A (301) 975-1000 Doc# 074220U, Rev. B TECHNICAL SUPPORT Revised 1/22/08 (301) 975-1007 http://www.patton.com...
- Page 2 Electronics' technical staff is also available to answer any questions that might arise concerning the installation or use of your Patton Model 515. Technical Service hours are 8AM to 5PM EST, Monday through Friday. 1.2 CE NOTICE...
- Page 3 RS-232 interfaces. The Model 515/6 clamps at 7.5 volts, protects all 15 pins, and is designed for use with RS-422, RS-423 and RS-485 interfaces. The Model 515/T1 clamps at 7.5 volts, protects pins 1, 3, 9 and 11, and is designed for use with T1 equipment. All three versions provide up to 1500 Watts of transient protection.
- Page 4 5.0 INSTALLATION The Patton Model 515 is simple to install and requires no user configuration. Follow these installation steps. 1. Disconnect the DB-15 data cable from the device you are protecting in a manner consistent with the manufacturer’s installation instructions.
- Page 5 APPENDIX A PATTON MODEL 515 SPECIFICATIONS General Standards: RS-232, RS-422/423/485, T1 Surge Capacity: 1500 Watts for 1 mS Connectors: One male and one female DB-15 Compliance: CE marked for EMC directive 89\336\EEC (ESD/EFT); Compliant with IEC 801-5 (surge) Model 515/25...
- Page 6 NOTES _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________...
- Page 7 NOTES _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________...
- Page 8 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
